GeoVision GV-BL2400 User Manual

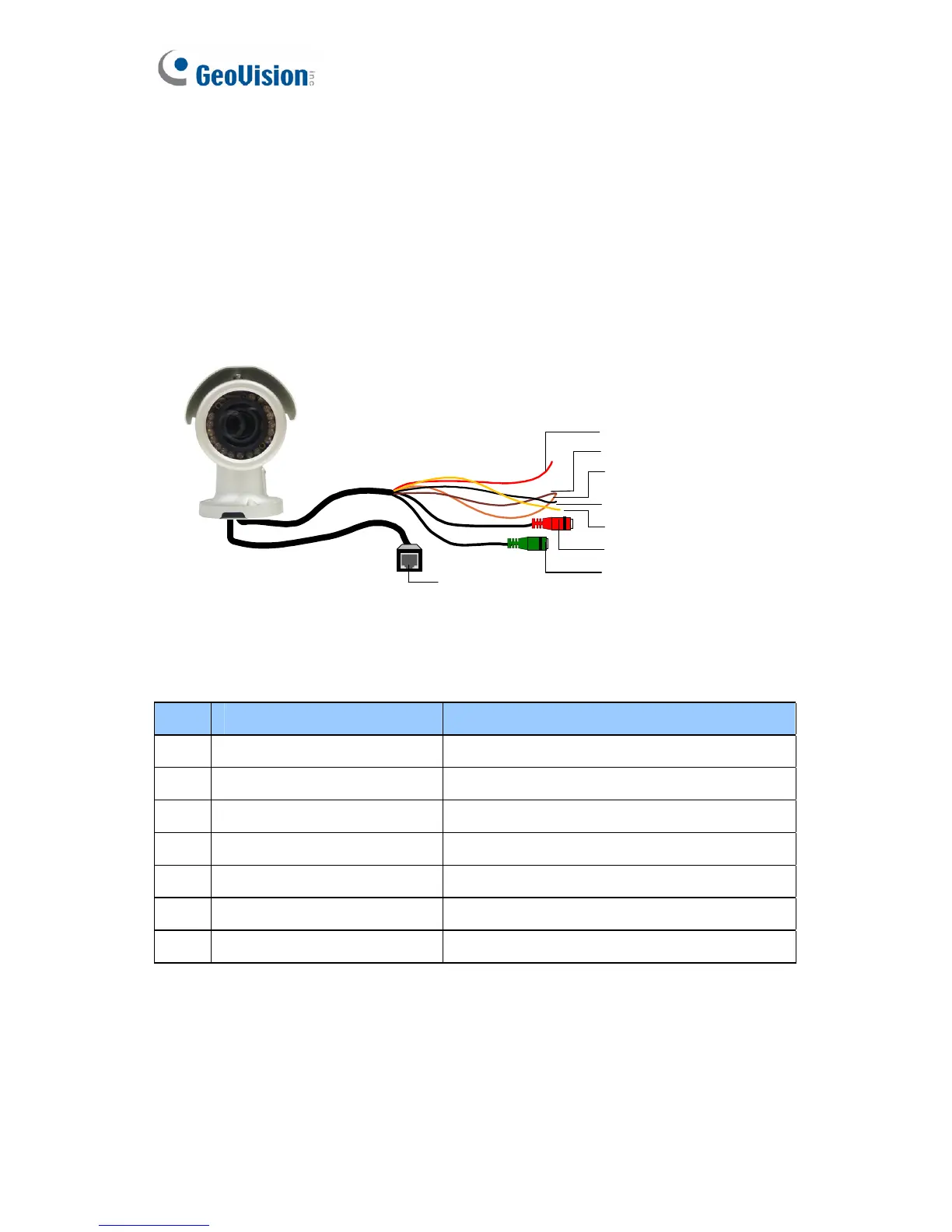

9.4.1 Connecting the Camera
Wire Definition
The 7-Pin Data Cable provides connections for power, ground, 1 sensor
input, 1 alarm output, audio input and audio output. The wires are
illustrated and defined below:
Ethernet (PoE)
Digital In (Red)
DC 12V+ / AC 24V + (Brown)
Digita l Out (Ora nge )
DC 12V- / AC 24V - (Black)
GND (Yellow)
Audio In (Red)
Audio Out (Green)
Figure 9-4
No. Wire Color Definition
1 Red Digital In
2 Brown DC 12V+ / AC 24V+
3 Orange Digital Out
4 Black DC 12V- / AC 24V-
5 Yellow Ground
6 Red RCA Audio in
7 Green RCA Audio out
100

GeoVision GV-BL2400 Specifications

General

Type	IP security camera
PTZ control	Yes
Certification	CE, FCC, C‐Tick
Placement supported	Outdoor
Connectivity technology	Wired
Form factor	Bullet
Mounting type	Ceiling
Product color	White
Protection features	Water resistant
International Protection (IP) code	IP67
Total megapixels	2 MP
Maximum resolution	1920 x 1080 pixels
Supported video modes	720p
Video formats supported	H.264
Supported graphics resolutions	320 x 240, 1280 x 960, 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1600 x 1200 (UXGA), 1920 x 1080 (HD 1080), 640 x 480 (VGA)
Pan range	0 - 360 °
White balance	Auto, Manual
Tilt angle range	90 - 180 °
Angle of rotation	360 °
Camera shutter type	Electronic, Mechanical
Camera shutter speed	0.000125 s
Minimum illumination	0.05 lx
Field of view (FOV) angle	82 °
Sensor type	CMOS
Optical sensor size	1/3.2 \
Optical zoom	- x
Focal length range	3 - 9 mm
Built-in HDD	No
Compatible memory cards	MicroSD (TransFlash), SD, SDHC, SDXC
LED type	IR
Night vision distance	50 m
Number of illumination LEDs	16
Cabling technology	10/100Base-T(X)
Supported network protocols	HTTP, HTTPS, TCP, UDP, SMTP, FTP, DHCP, NTP, UPnP, DynDNS, 3GPP/ISMA, RTSP, PSIA, SNMP, QoS (DSCP), ONVIF (Profile S)
Interface	RJ-45
Ethernet LAN (RJ-45) ports	1
Audio system	2-way
Signal-to-Noise Ratio (SNR)	47 dB
AC input voltage	24 V
Power source type	PoE
Power consumption (typical)	7.2 W
Sustainability certificates	RoHS
Storage temperature (T-T)	-30 - 50 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	87.7 mm
Width	277.5 mm
Height	148.9 mm
Weight	1350 g
Cable length	1 m
