GeoVision GV-Compact DVR V2 User Manual

The I/O Terminal Block
147
12
12.3 Camera Power Supply
The cameras can be powered through GV-Compact DVR V2. Using the supplied Camera
Power Adaptor, connect the black wire to Pin 10 and the green wire to Pin 11.

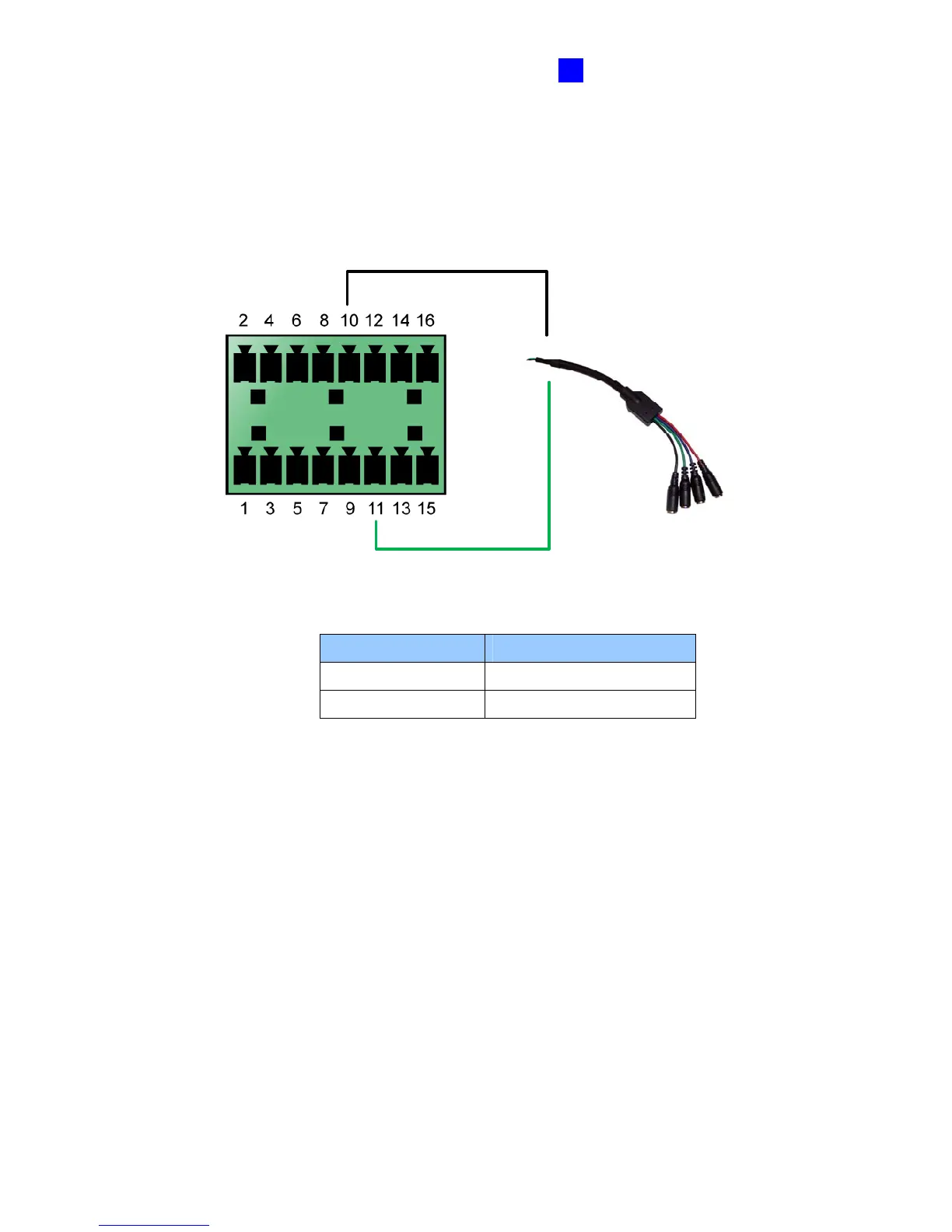

Figure 12-3
I/O Terminal Block Camera Power Adaptor
Pin 10 Black Wire
Pin 11 Green Wire
