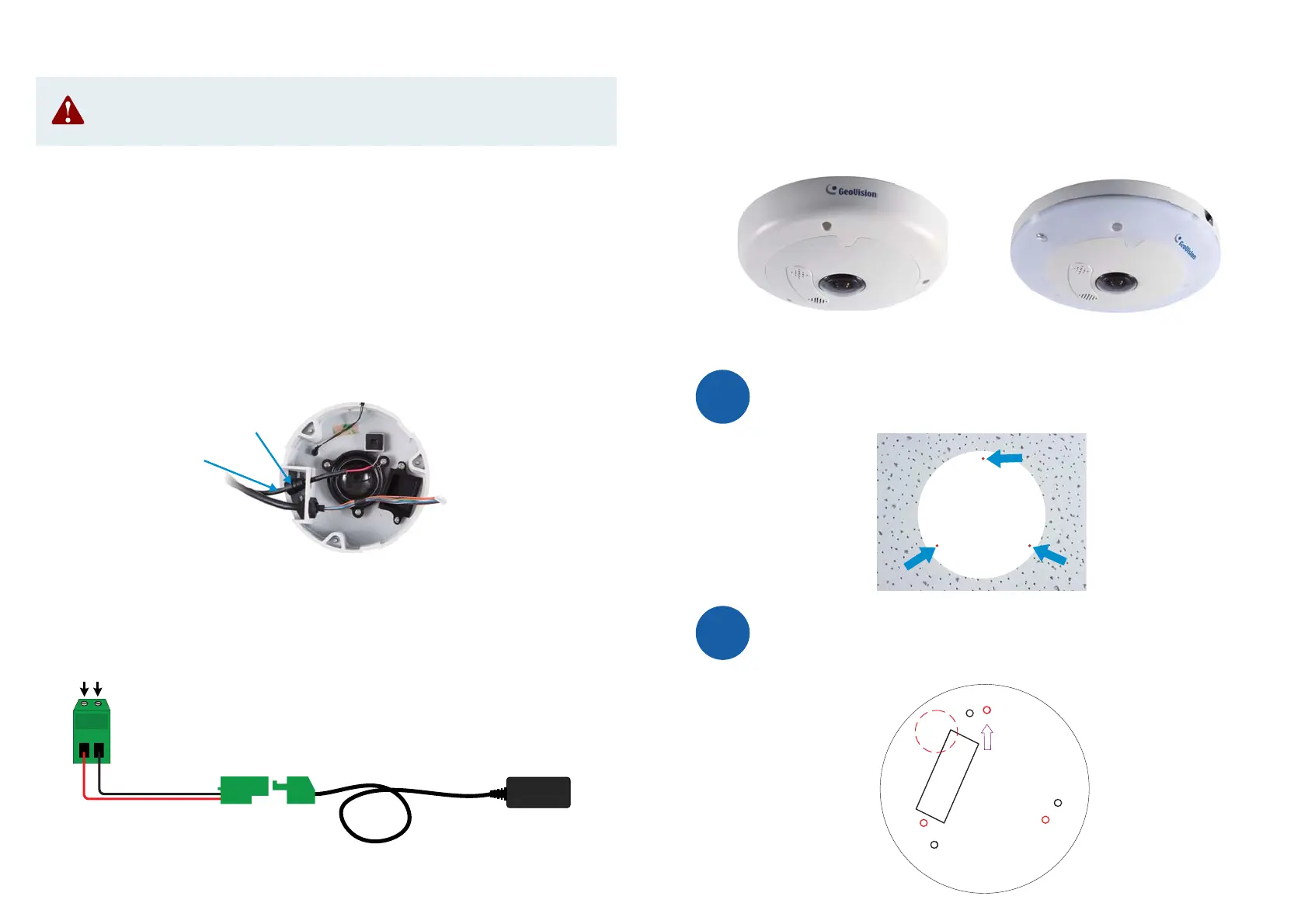

Installation
Waterproof Rubber
Power Cable
IMPORTANT: Item 1 must be secured tightly to waterproof the
cable.
Without IR LED Ring With IR LED Ring
To install GV-Fisheye Camera with the IR LED ring (GV-FER3403 /
5303), drill the 3 holes indicated as “Device” and the circle
indicated as “IR”.
Hard Ceiling Mount
2
1
Device
TOP
Device
Device
PoE Converter
PoE Converter
PoE Converter
PoE Converter
IR
Place the installation sticker on the ceiling board. The 3 red dots
indicate the location of the screws.
2. Insert the power cable into the supplied female terminal block as
illustrated and plug it into the terminal block connector in the camera.
3. Connect the male terminal block on the power cable to female terminal
block on the power adapter as illustrated below.
DC 12V
Power Adaptor
Terminal Block
Female Terminal Block
(Connect to Camera)
-
+
FemaleMale
Assembling the Power Adapter
3. Optionally insert a micro SD card (SD/SDHC, version 2.0 only, Class 10).
4. Secure the camera cover with the supplied torx wrench.
1. Insert the supplied power cable into the supplied waterproof rubber.
In addition to using PoE power supply, you can use the power adapter to
supply the power to the camera.
