Installation instructions
5018606-00 Rev.C
Edition 0704
Wall-mounted model
• If the machine has double doors and is to be mounted in a wall, the distance
between machine and wall must be 15 mm.
• If more than one machine is to be installed next to each other they must be
adjusted to the same height on installation.
• Where a plinth plate is used, the height from the floor to the underside of the
machine must be at least.
• Set the machine horizontal with a spirit level on the side of the machine and
adjust with the feet. The adjusting feet must be unscrewed not more than 110
mm from the underside of the machine.
• For the loading trolley to work in all the machines, the floor in front of them must
be flat and level.
Service area

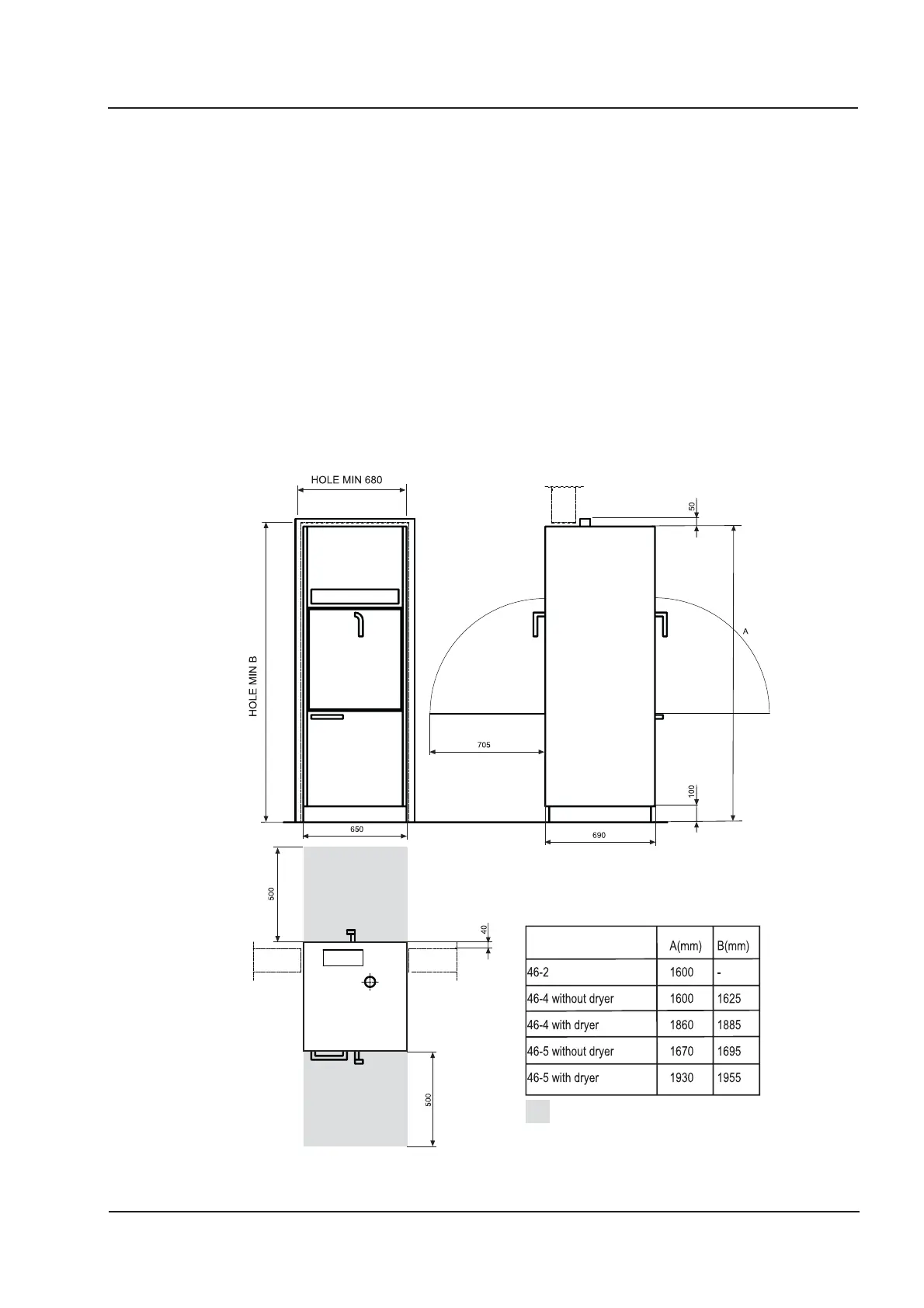

Figure 3. Mounting in a wall
Installation
