Getinge 46-2 Installation Instructions

6
Installation instructions
5018606-00 Rev.C Edition 0704
V1639
The door and the
two side plates
must be parallel.
V1640

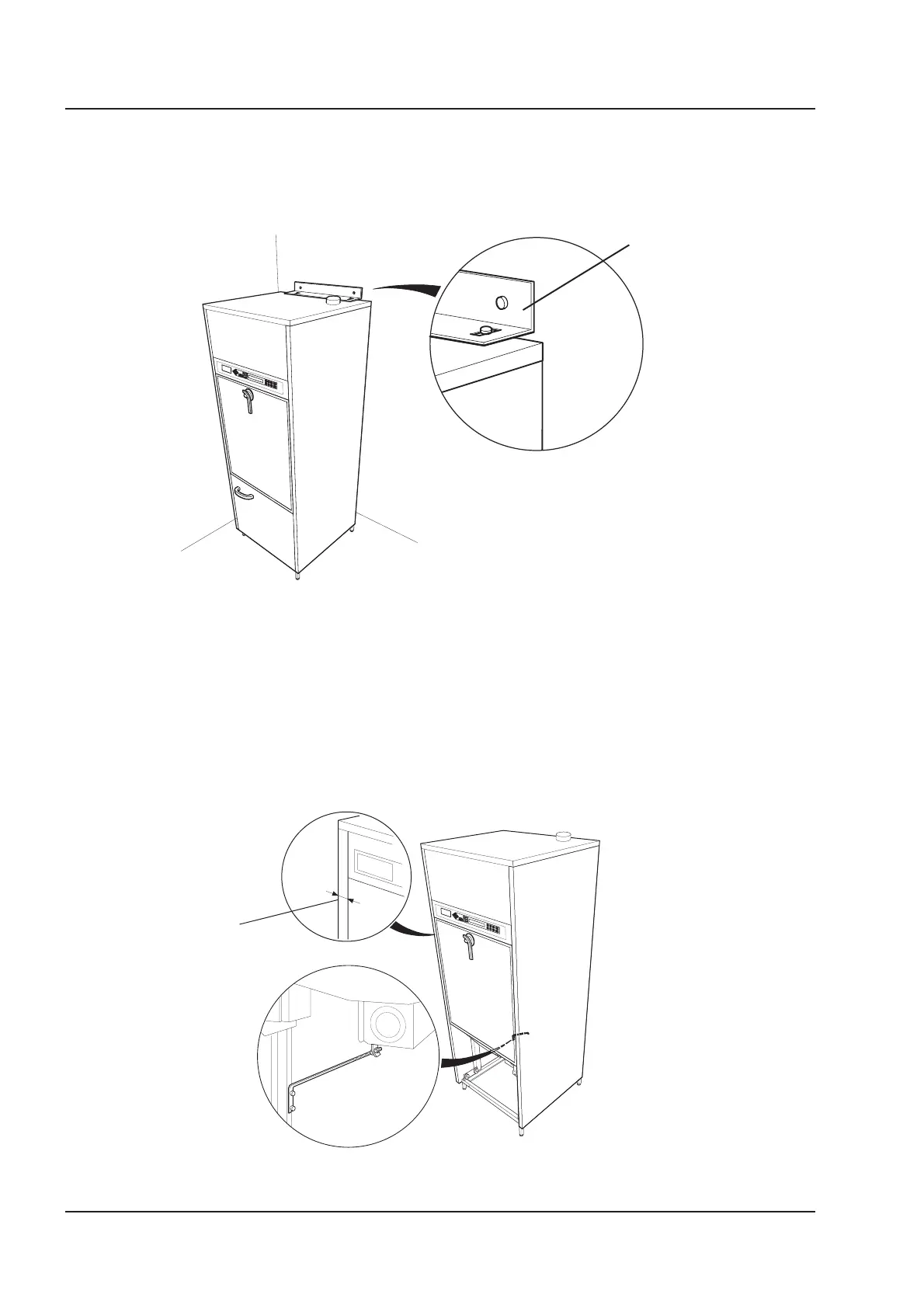

Tipover protection
Free-standing model
• Secure the tipover protection to the machine with the screws, then secure the
backplate.
• Fix the tipover protection to the wall with screws.
Installation
Figure 4. Tipover protection
• Check that the door and the two side plates are parallel.
If not:
• Open the lower door and adjust the machine.
• To adjust the machine to the left, turn the nuts to the left; to adjust the machine
to the right, turn the nuts to the right.
Fig 5. Diagonal adjustment
