Installation instructions
5018606-00 Rev.C
Edition 0704
Connecting electric power
Installation may only be done by authorized personnel.
Connect electric power to the machine as follows:
• Install the machine in accordance with installation category CAT II.
• Connect the power supply to the electrical connections of the machine; see the
diagram with alternative connection arrangements.
For easier servicing and maintenance, the supply to the machine must be fitted
with an isolator switch with a 3 mm isolating gap. The device must be located in
an easily accessible position close to the machine.
• Open the lower hatch.
• Remove the inner safety plate to access the electrical box.
It is important that the connection has the correct overcurrent protection. The
correct fuse rating is stated on the type plate.

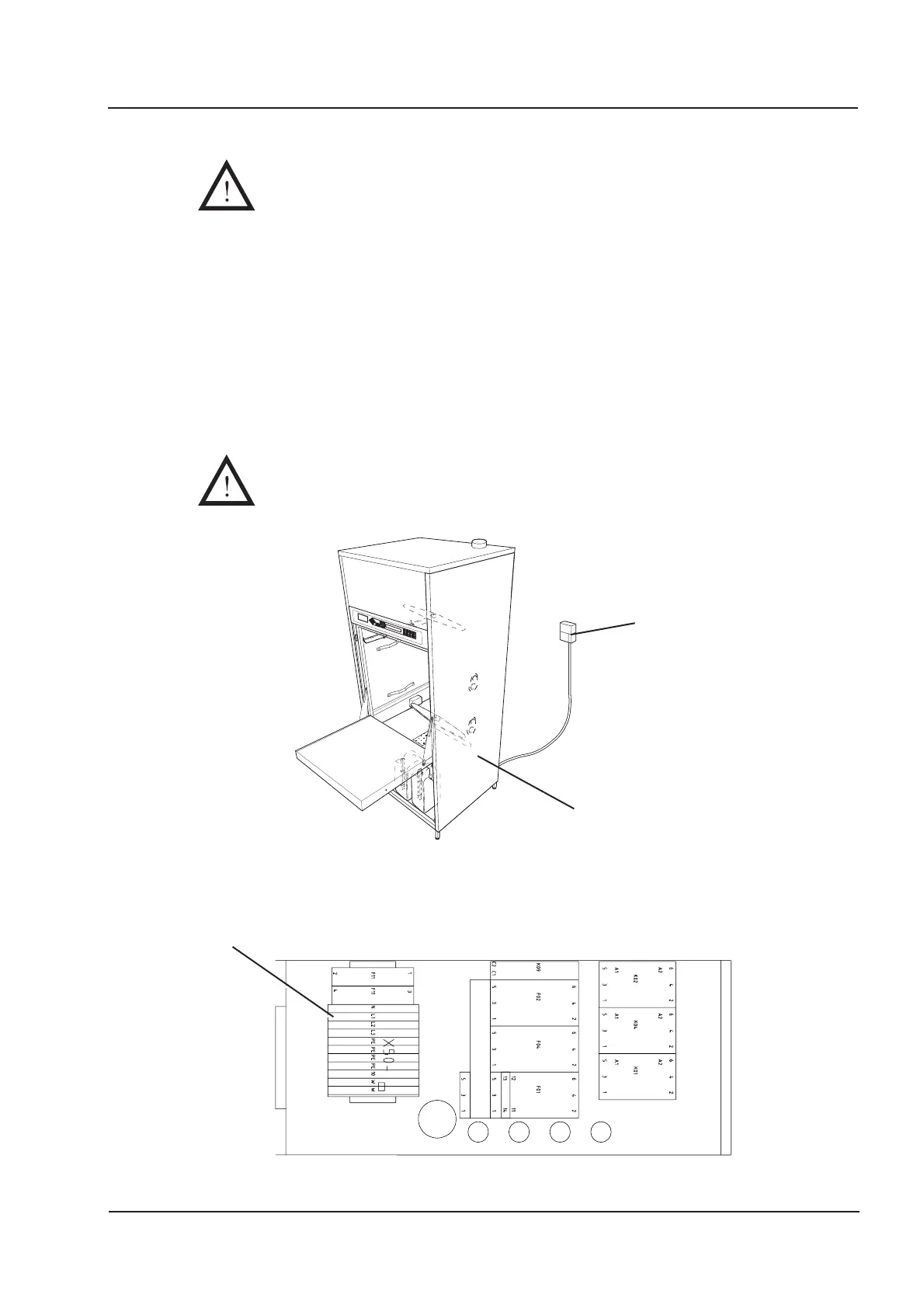

Figure 6 Electrical connection (see electrical diagram in the service instructions)
V1638
Isolating device
Figure 7. Electrical box
Electrical box
Installation
Terminal block
