Page 11 of 20
<Doc_INS><Doc_502606400><Rel_A><Lang_GB>
1. Cold water 350 mm above the oor
2. Hot water 350 mm above the oor
3. Distilled/de-ionized water 350 mm above
the oor
4. Compressed air connection (in/out feeder)
400 mm above the oor
5. Steam connection 350 mm above the oor
6. Condensate connection 350 mm above
the oor
Chamber depth 720 mm
Chamber depth 800 mm
Clean side
Soiled side
Clean side
Soiled side
7. Drain connection at oor
8. Dryer exhaust air at roof
9. Electrical connection 350 mm above
the oor
A. No cables or pipes in this area
B. Adjustable within this range

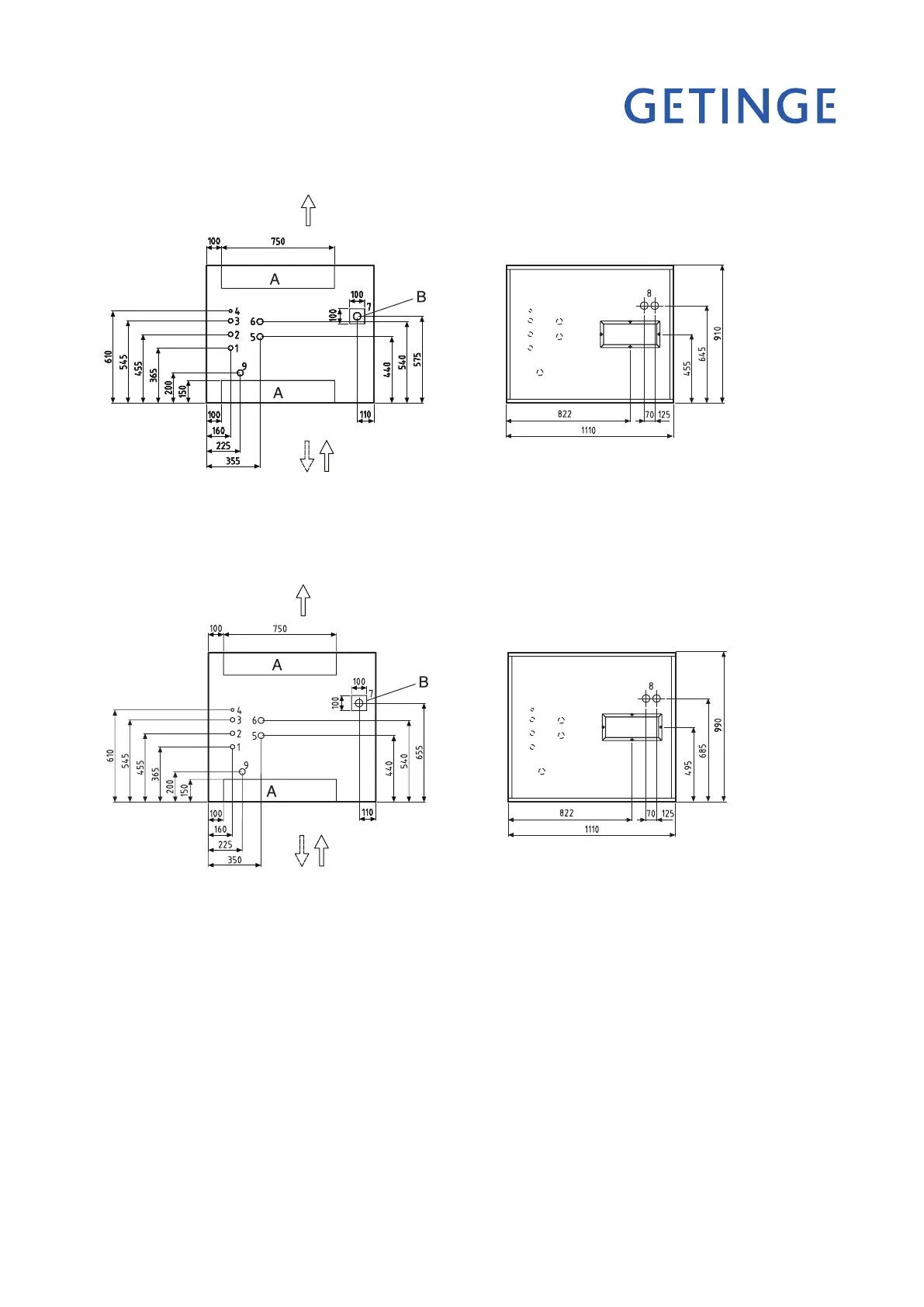

Figure 5. Connecting water, steam, waste and dryer
