Page 8 of 20
Connecting electric power
Installation may only be done by authorized personnel.
Connect electric power to the machine as follows:
Connect the power supply to the electrical connections of the machine; see the dia-
gram with alternative connection arrangements.
For easier servicing and maintenance, the supply to the machine should be tted
with a lockable isolator with a 3 mm break gap. The isolator must be located in an
easily accessible position on the wall.
It is important that the connection has the correct overcurrent protection. The
correct fuse rating is stated on the type plate.
The main switch on the front of the machine is connected to protective ground (earth)
and to the supply voltage stated on the type plate.
•
•
V1473
Main switch

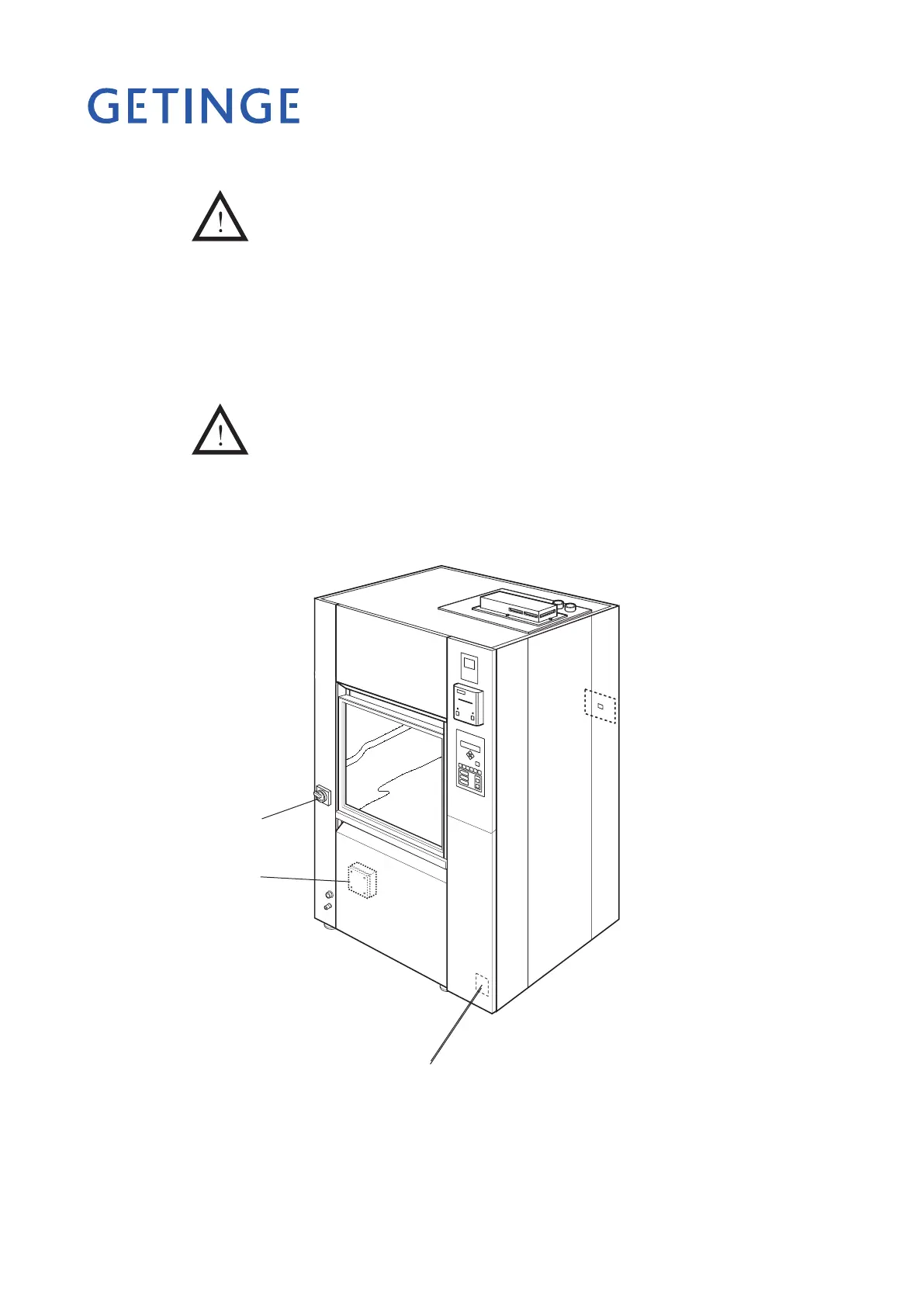

Figure 4 Electrical connection (see alternative connection arrangements)
Electrical
connection
Type plate
