Wall-mounted model
If the machine has double doors and is to be mounted in a wall, the distance be-
tween machine and wall must be 15 mm.
If machines are to be installed next to each other they must be adjusted to the same
height on installation.
Where a plinth plate is used, the height from the oor to the underside of the ma-
chine must be at least 100 mm.
Set the machine horizontal with a spirit level on the side of the machine and adjust
with the feet.
For the loading trolley to work in all the machines, the oor in front of them must
be at and level.
•
•
•
•
•

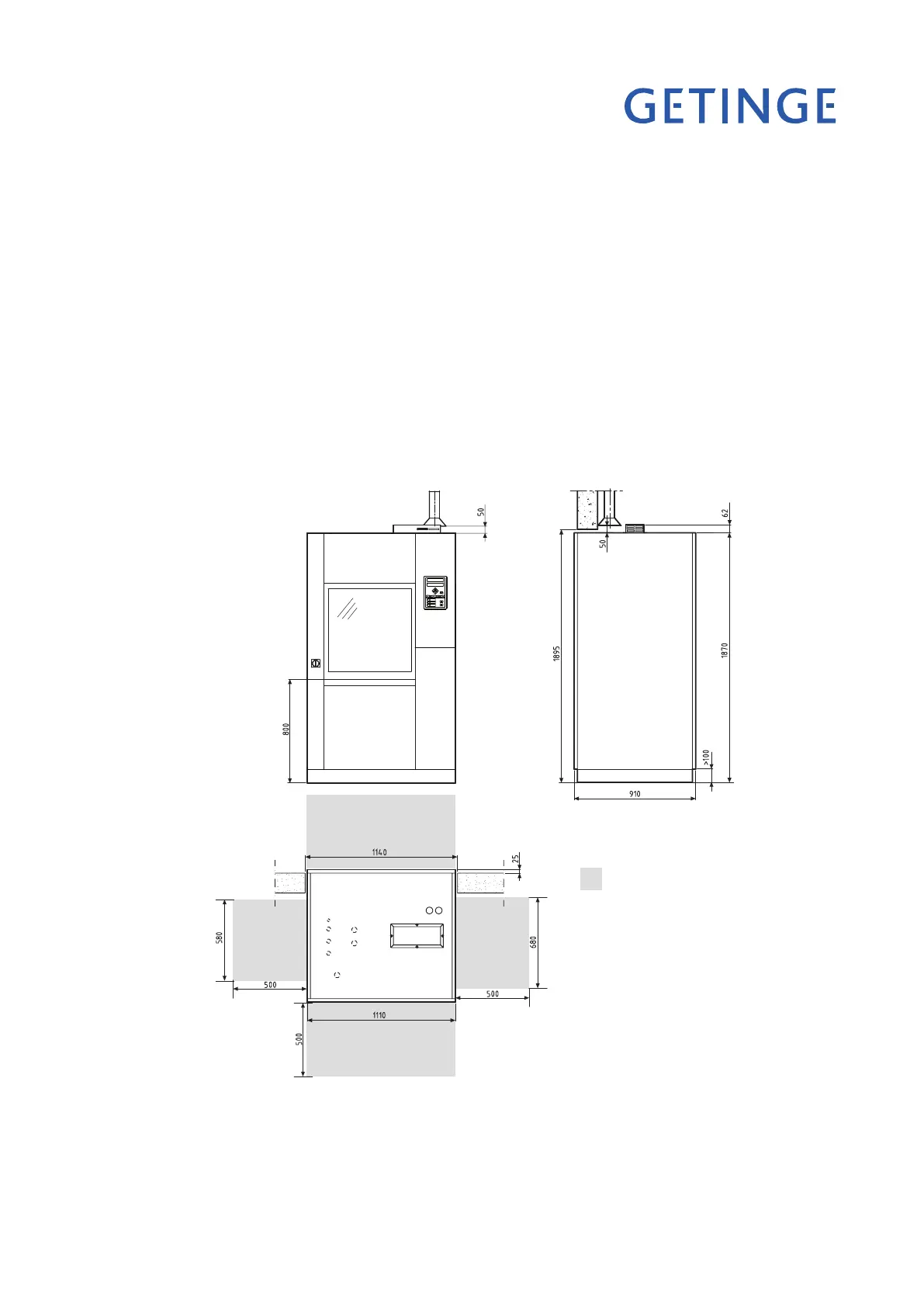

Figure 3. Installation in a wall
V1475
Service area
