Disassembling and assembling Servo-i Ventilator System
4 - 14 Service Manual Revision 02
4
Gas modules

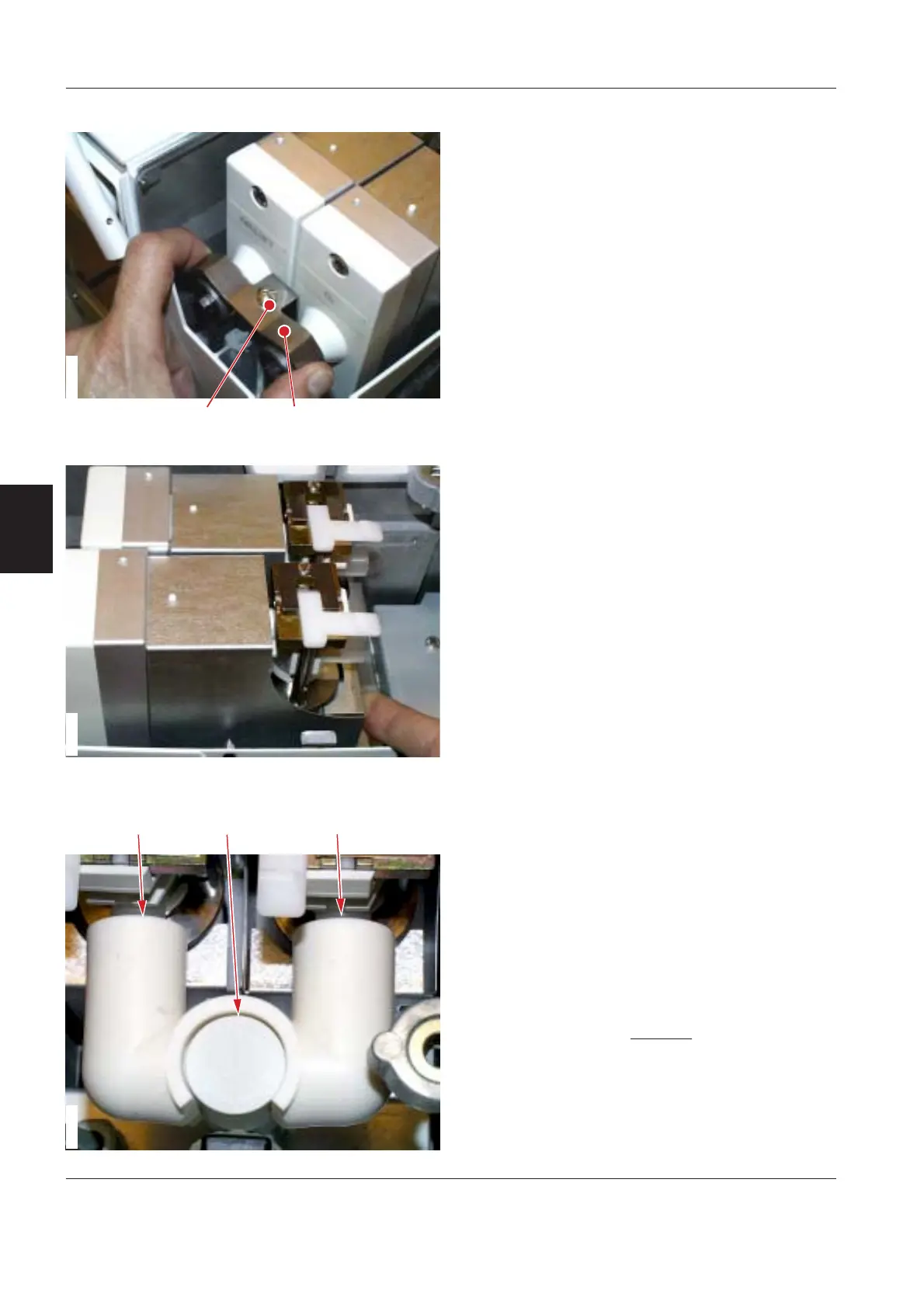

To remove the gas modules:
• Remove the inspiratory section cover.
• Loosen the screw (1).
• Lift off the gas module bracket (2).
• Pull out and lift off both gas modules.
Note 1: When assembling, make sure that the
connector muff properly seals around the inspiratory
pipe (1). The connector muff must not be pushed too
far onto the nozzle units (2).
Note 2: The gas modules used in Servo-i are factory
adjusted for this purpose. When replacing gas
modules, make sure to use only Servo-i gas modules.
Similar gas modules intended for the SV 300/300A or
KION / KION-i Systems
must not be used.
