Getinge Maquet SERVO-i - Page 82

9
9 - 2 Service Manual Revision 02
Diagrams Servo-i Ventilator System

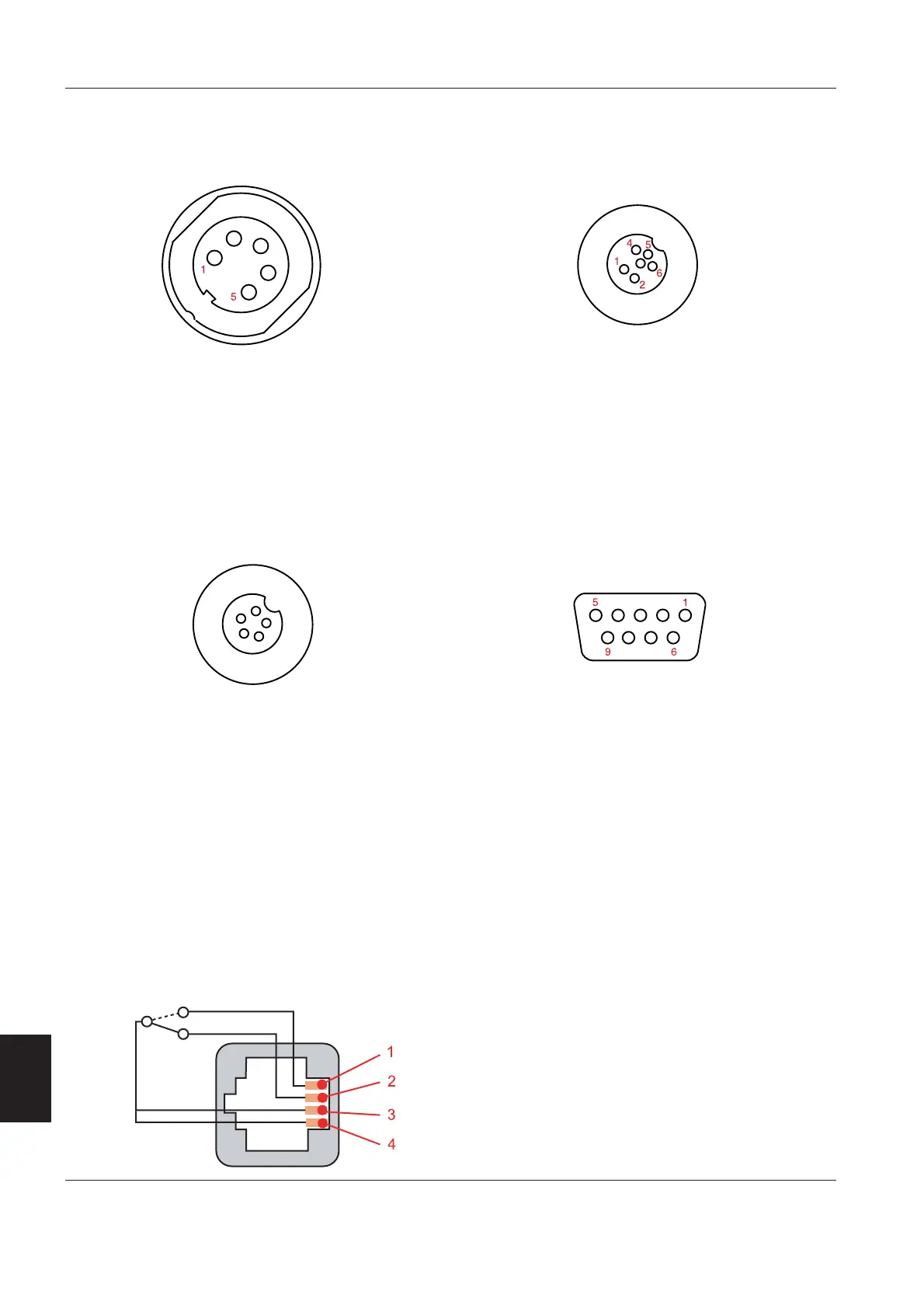

Standard and optional connectors
N27 – Optional equipment
1. GND
2. DISABLE_VALVES_EXT.L
3. CAN_EXPANSION.H
4. CAN_EXPANSION.L
5. +12V_UNREG_EXPANSION
SVX9007
1
5
N28 / N70 – Control cable
1. +12V_UNREG_PANEL
2. GND
3. LED_CONTROL
4. ON_OFF_CONTROL
5. CAN_PANEL.H
6. CAN_PANEL.L
N29 – RS232
1. –
2. CI_RDX_ISO
3. CI_TDX_ISO
4. CI_DTR_ISO
5. GND_ISO
6. –
7. –
8. –
9. –
SVX9008
N26 – External +12 V DC supply input
1. +12V_UNREG_EXT_DC
2. +12V_UNREG_EXT_DC
3. –
4. GND
5. GND
SVX9006
SVX9009
S
VX9002
P67 – Alarm output connector (option)
1. NO – Normally Open
2. NC – Normally Closed
3. Common
4. Common
