2.4 Connection options and configurations
Before the installation, plan all the connections and the configuration of the RWA-
Emergency Power Control System. The various options are explained in the following
sections.
Discuss the design with the operator. Afterwards, complete the configuration table
found in the Appendix. The configuration table is an important reference aid for future
maintenance and repair.
Carry out the installation and commissioning work in the sequence described in Sec-
tion 2.5, Installation.

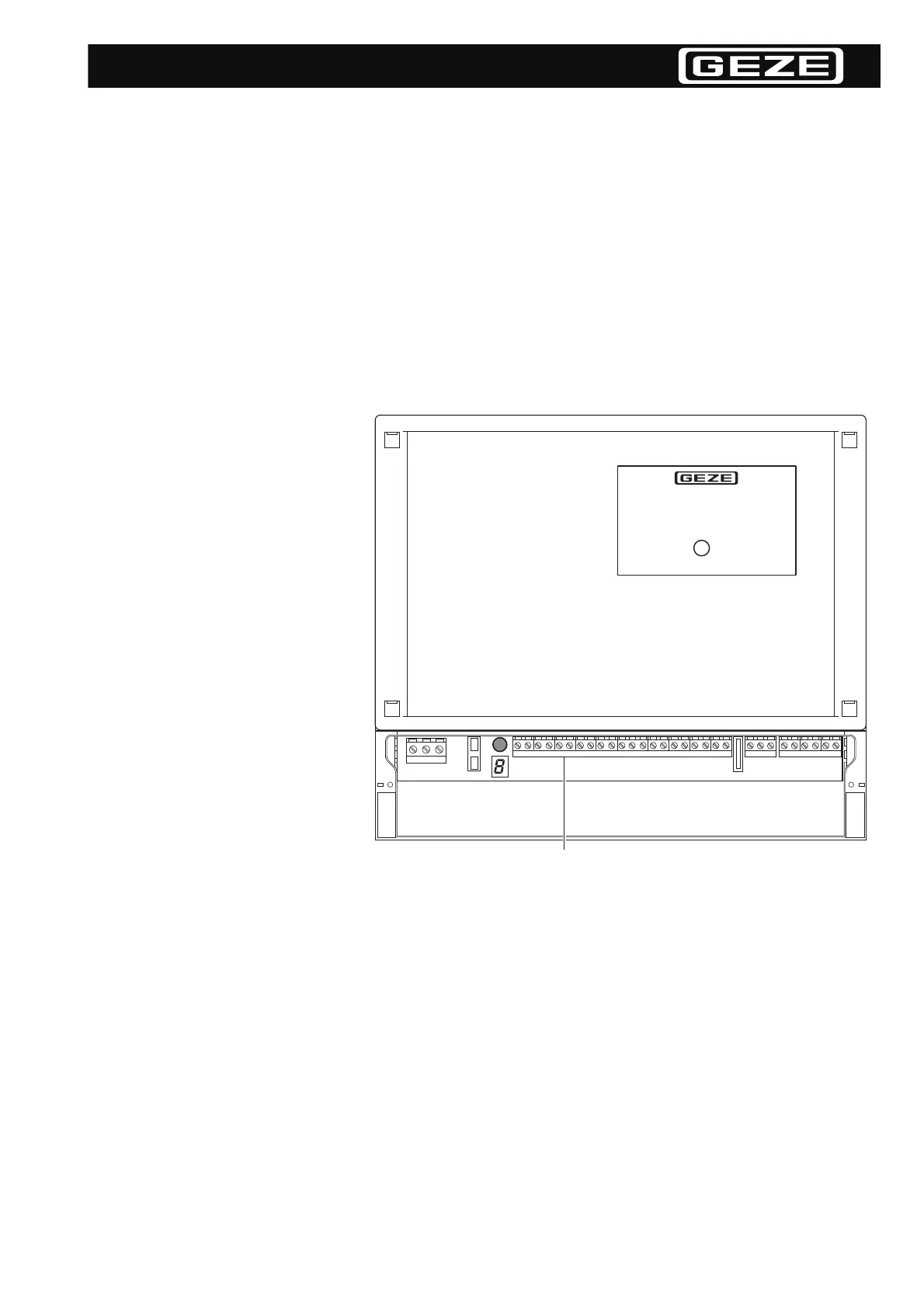

Main circuit board The components of the RWA-Emergency Power Control System are connected to the
main circuit board (1).
