Further installation situationsGC 363 R / SF
9.2 Lintel installation
According to DIN 18650/EN 16005, the distance between the inner light
curtains must not exceed 200 mm.

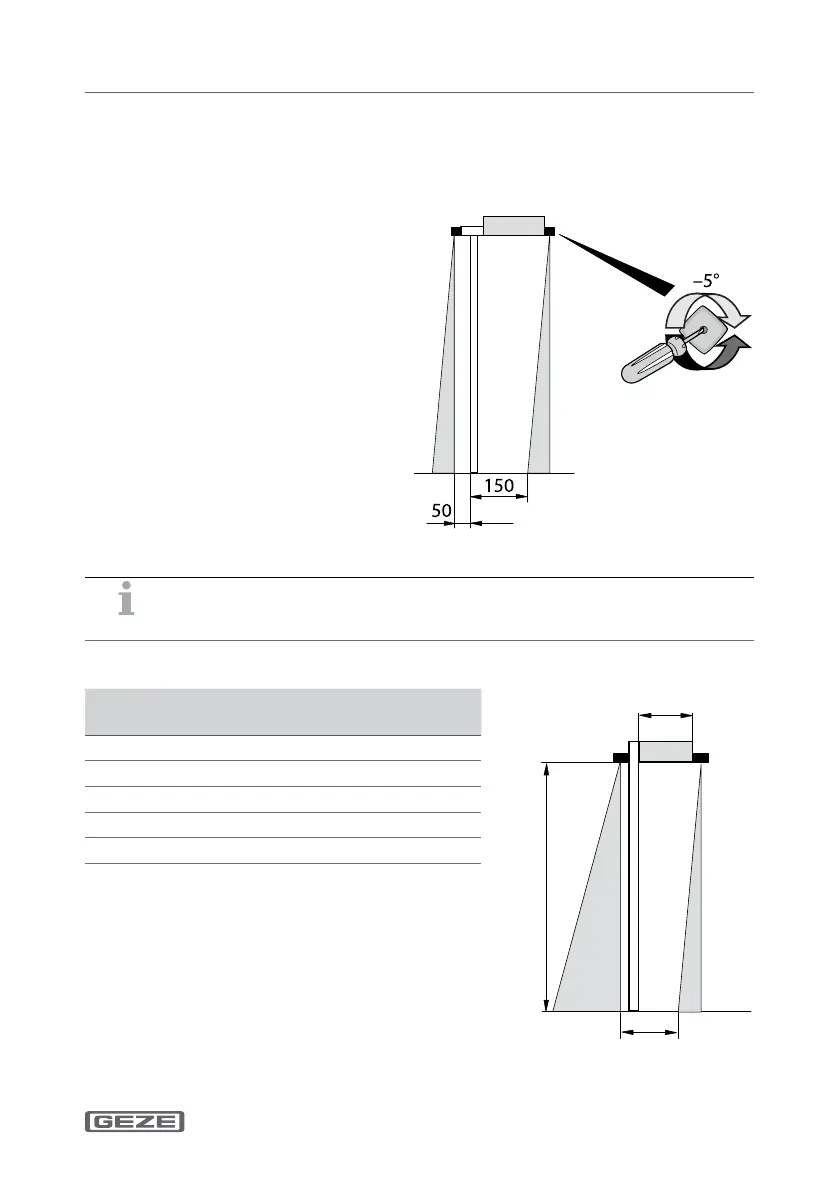

Example conguration:
à Light curtain (right-hand
side) set to –5°
à Combined detector near the
door leaf at a distance of 50
mm to the leaf
à Protection under the sot
150 mm
In the case of other dimensions, please contact the sales department rst.
Installation height a
(in mm)
Max. sot depth b
(in mm)
2000 325
2200 342
2500 369
3000 412
3500 456




