GEZE GC 363 SF - Protection Area Adjustment

Commissioning GC 363 R / SF
18
5.2 Protection area

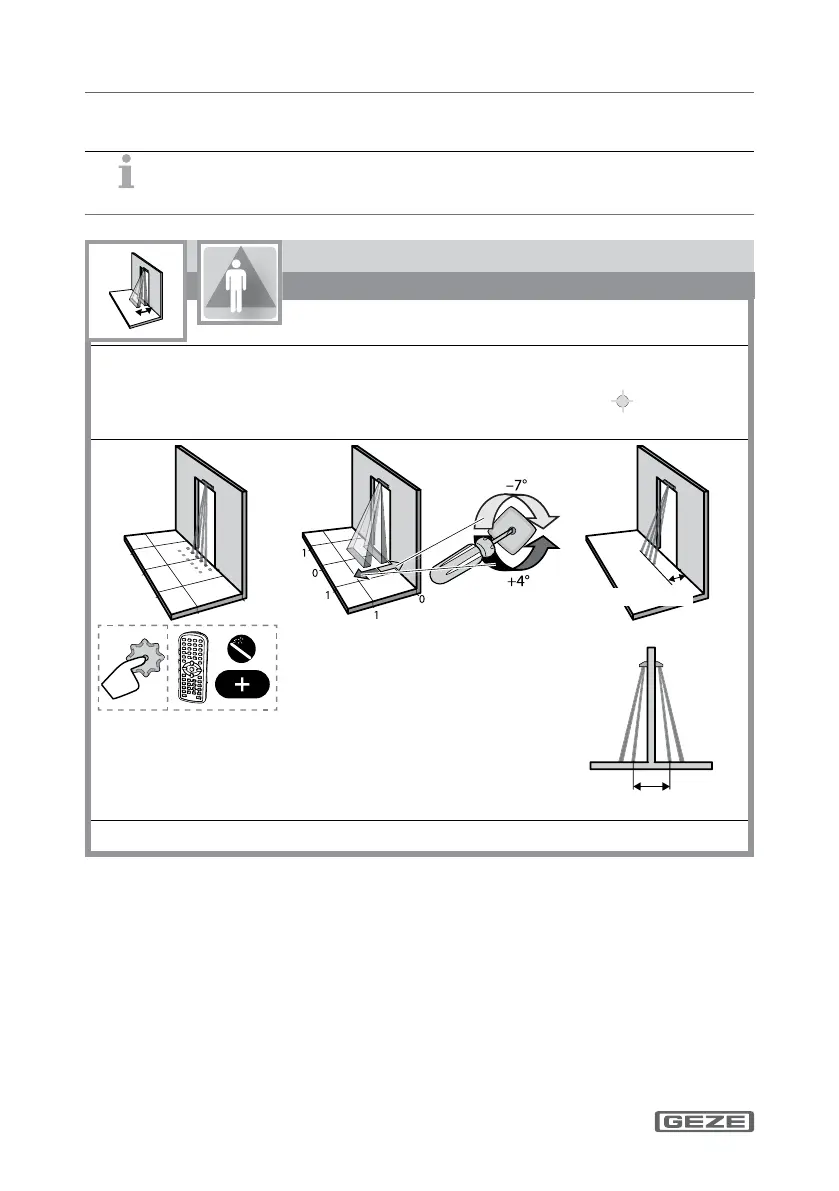

The position of the IR curtain in relation to the door can be checked using
an infrared detector.
X
Activate 4 visible
spots.*
X
Adapt the angle of the AIR
curtain.
Yellow LED is ashing
on infrared detec-
tor
: Alignment
correct.
2x
max. 9 cm
max. 20 cm
* Visibility depends on the environmental conditions.
