Description

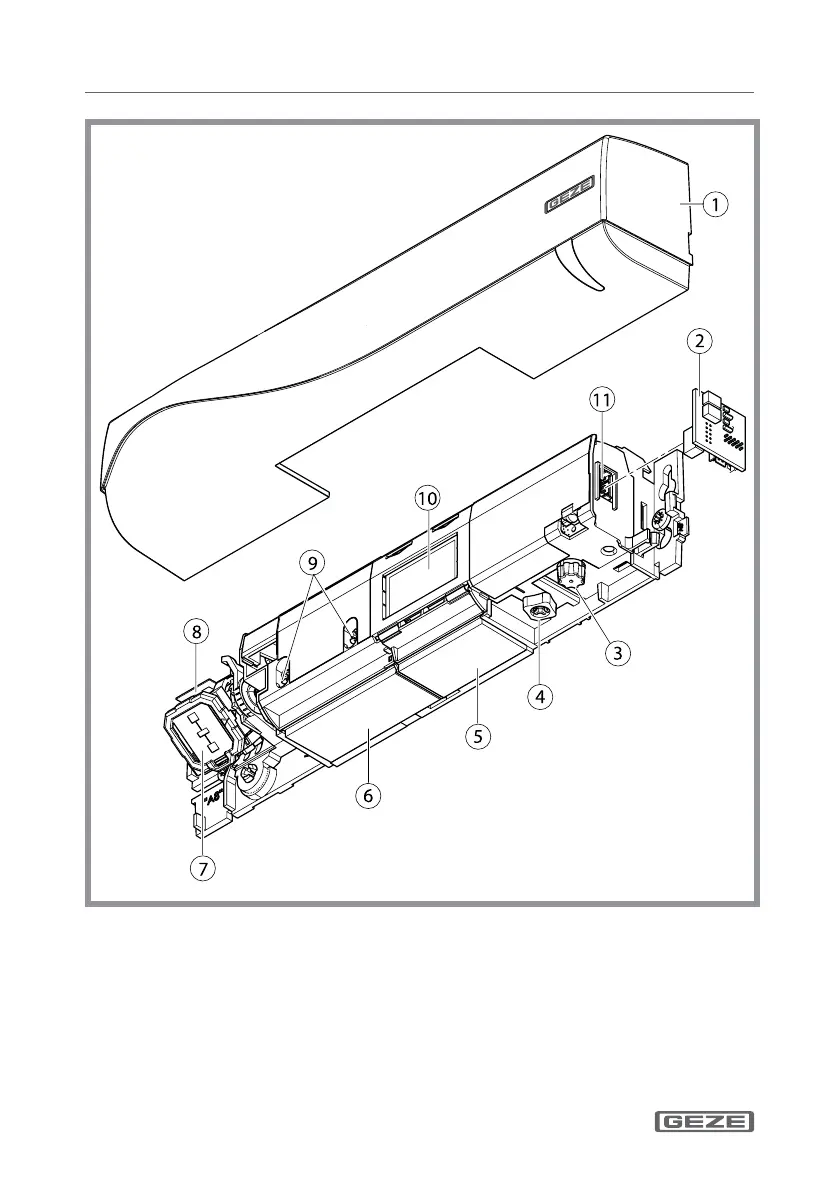

GC 363 R / SF
6
1
Cover
2
GC363 S interface (optional
accessor
y for GC363 SF)
3
Setting button (grey)
4
Button for setting the angle of
the AIR curtain (red)
5
AIR lens (transmitter)
6
AIR lens (receiver)
7
Radar antenna (wide eld)
8
Radar antenna (narrow eld)
9
Width adjustment of the AIR
curtain
10
LC
D
11
Main connector
5
7
Table of Contents
Default Chapter
