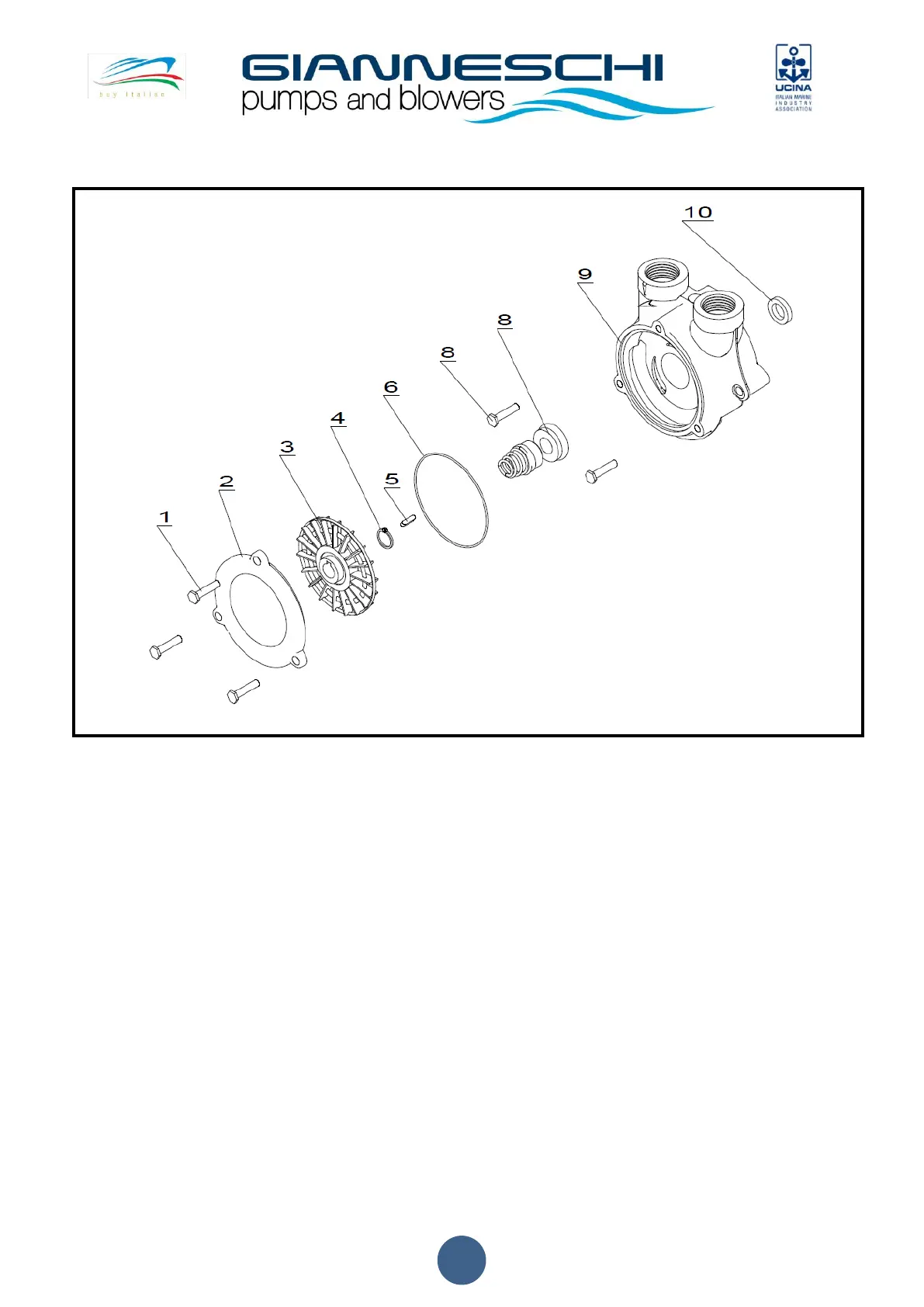

3.2 EXPLODED DRAWINGS
1. Screw
2. Cover
3. Impeller
4. Seeger
5. Impeller key
6. O-Ring
7. Screw
8. Mechanical Seal
9. Body Pump
10. Splash guard ring
ACB 61G; ACB 61RG
