9

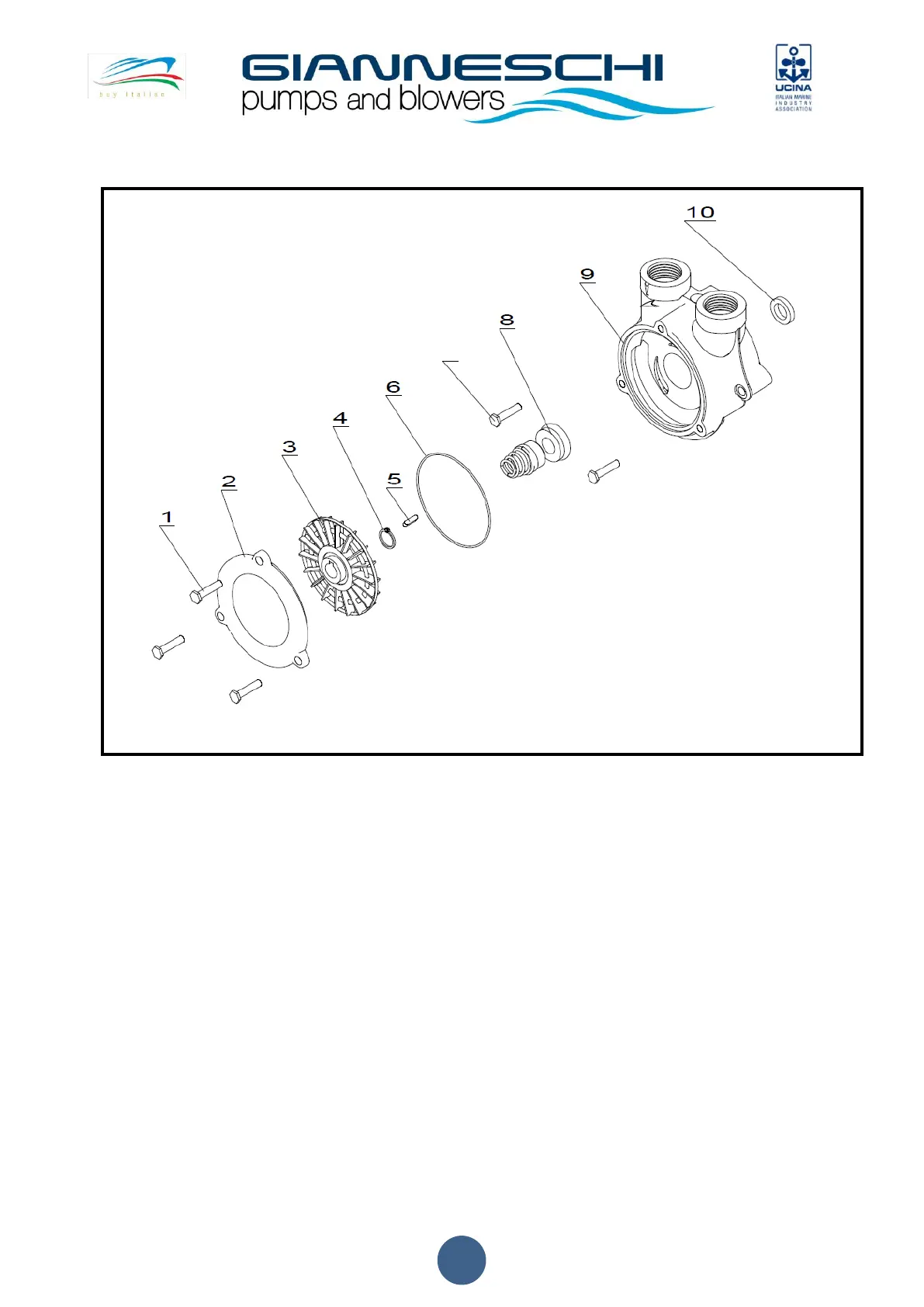

3.4 DISEGNI ESPLOSI
1. Vite di testa
2. Coperchio
3. Girante
4. Seeger
5. Linguetta
6. O-Ring
7. Viti fissaggio corpo pompa
8. Tenuta meccanica
9. Corpo pompa
10. Paraspruzzi
ACB 61G; ACB 61RG
7
