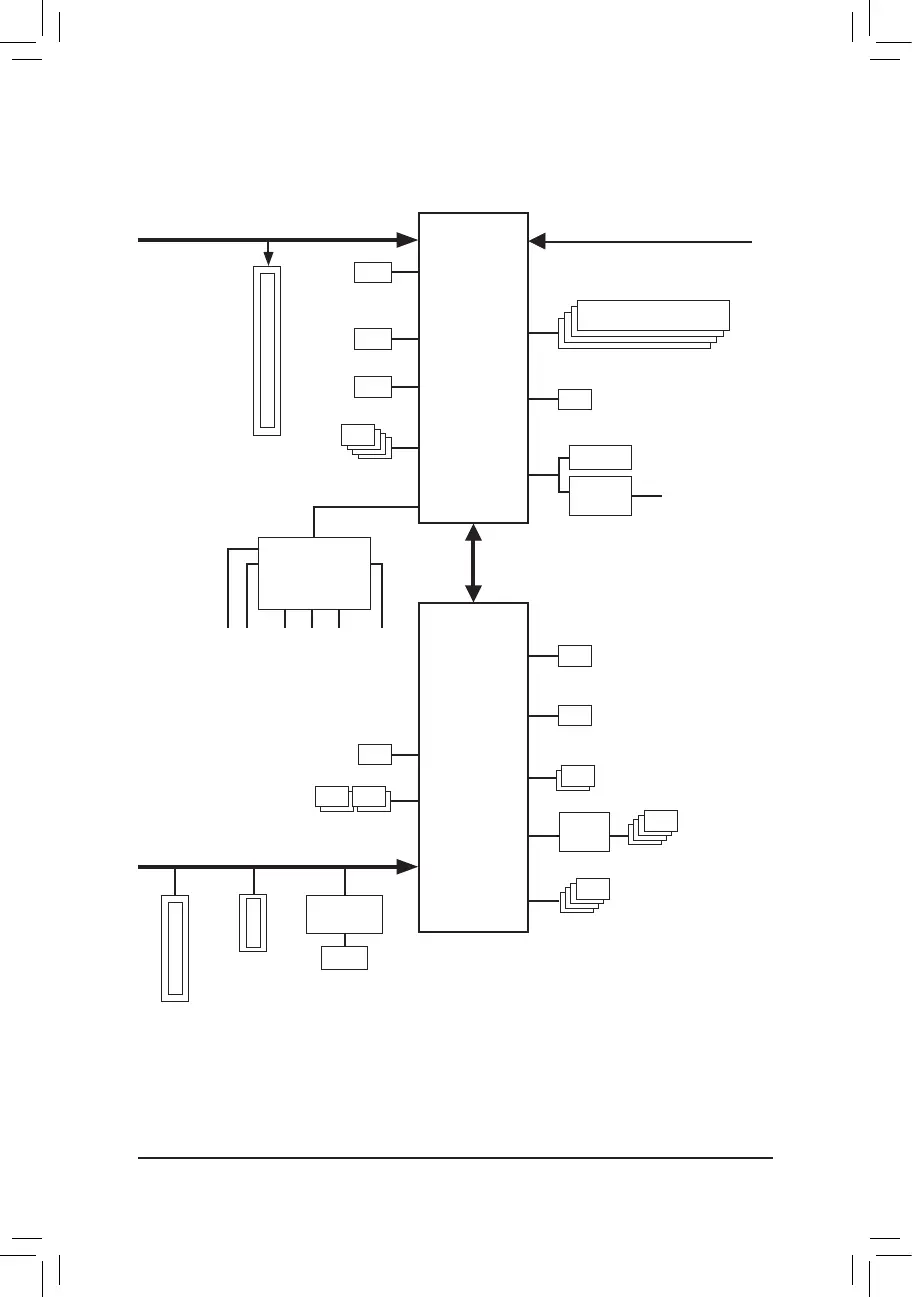

B550M AORUS PRO Motherboard Block Diagram
AMD Socket
AM4 CPU
CPU CLK+/- (100~500 MHz)
PCI Express 4.0/3.0 Bus
PCIe 3.0 x4
LAN
RJ45
Realtek
®
GbE LAN
4 SATA 6Gb/s
(SATA3 0~3)
PCI Express 3.0 Bus
Center/Subwoofer
Speaker Out
Line Out
MIC
Line In
S/PDIF Out
Rear Speaker Out
CODEC
4 USB 2.0/1.1
2 USB 3.2 Gen 1
4 USB 2.0/1.1
1 USB Type-C
™
,
with USB 3.2 Gen 2
support
1 USB 3.2 Gen 2
Type A
4 USB 3.2 Gen 1
AMD B550
x1x4 x1
HDMI
1 x PCI Express x4
1 x PCI Express x1
USB 2.0
Hub
1 M.2 Socket 3
(M2A_CPU)
LPC
Bus
TPM
iTE
®
Super I/O
SPI
Bus
BIOS
x16
1 PCI Express x16
DDR4 3200/2933/2667/2400/2133 MHz
DisplayPort
COM
1 M.2 Socket 3
(M2B_SB)
