1-7 Internal Connectors
Readthefollowingguidelinesbeforeconnectingexternaldevices:
• First make sure your devices are compliant with the connectors you wish to connect.
• Before installing the devices, be sure to turn off the devices and your computer. Unplug the power
cord from the power outlet to prevent damage to the devices.
• After installing the device and before turning on the computer, make sure the device cable has
been securely attached to the connector on the motherboard.

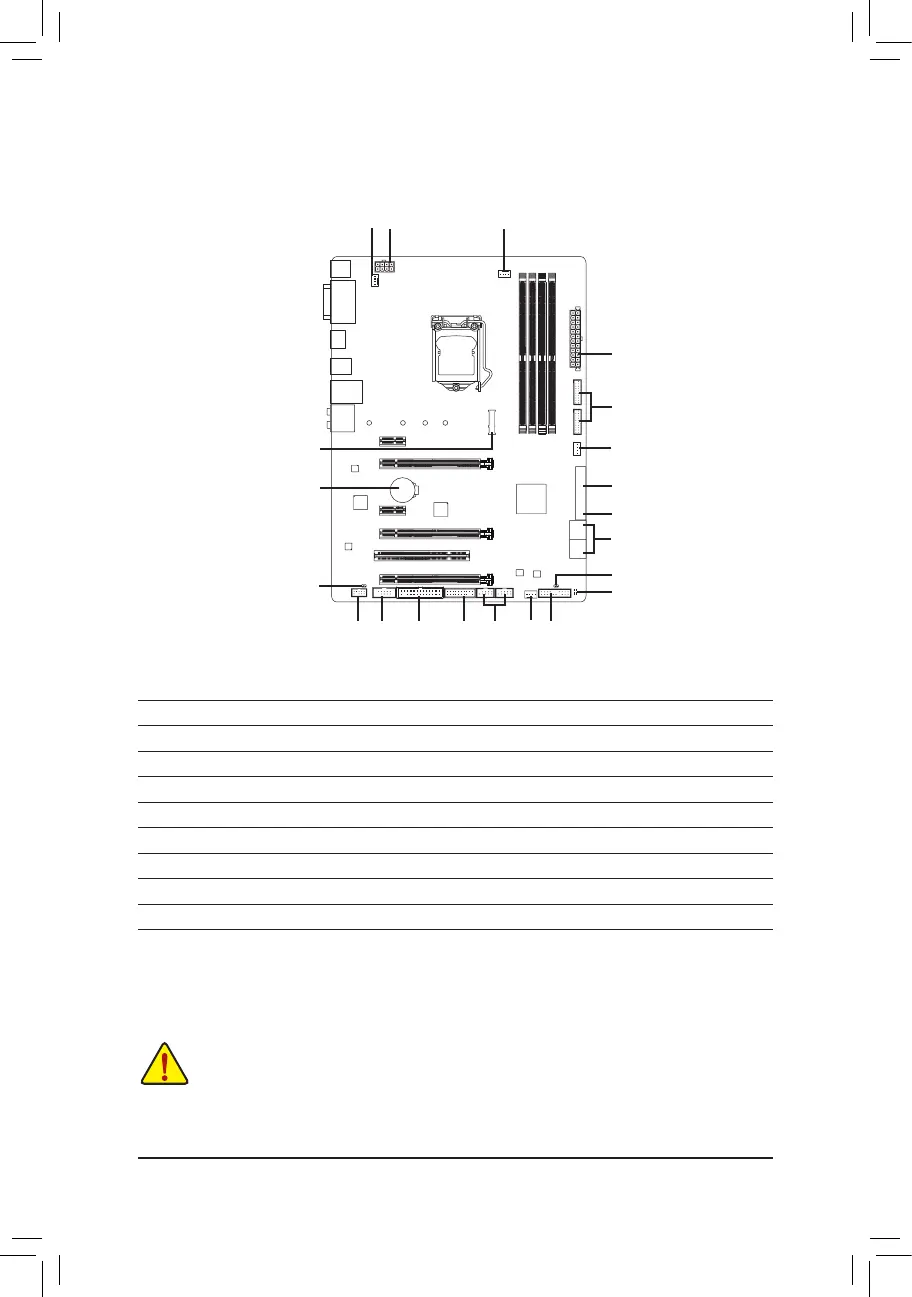

1) ATX_12V_2X4
2) ATX
3) CPU_FAN
4) SYS_FAN1/2/3
5) SATA EXPRESS
6) SATA3 0/1/2/3/4/5
7) M2A_32G
8) F_PANEL
9) F_AUDIO
10) SPDIF_O
11) F_USB30_1/F_USB30_2
12) F_USB1/F_USB2
13) COM
14) LPT
15) TPM
16) CLR_CMOS
17) BAT
18) CPU/DRAM/VGA/BOOT
2
8
5
11
9
1
4
3
7
17
12
4
6
6
4
10
13 15
16
18
14
- 12 -
