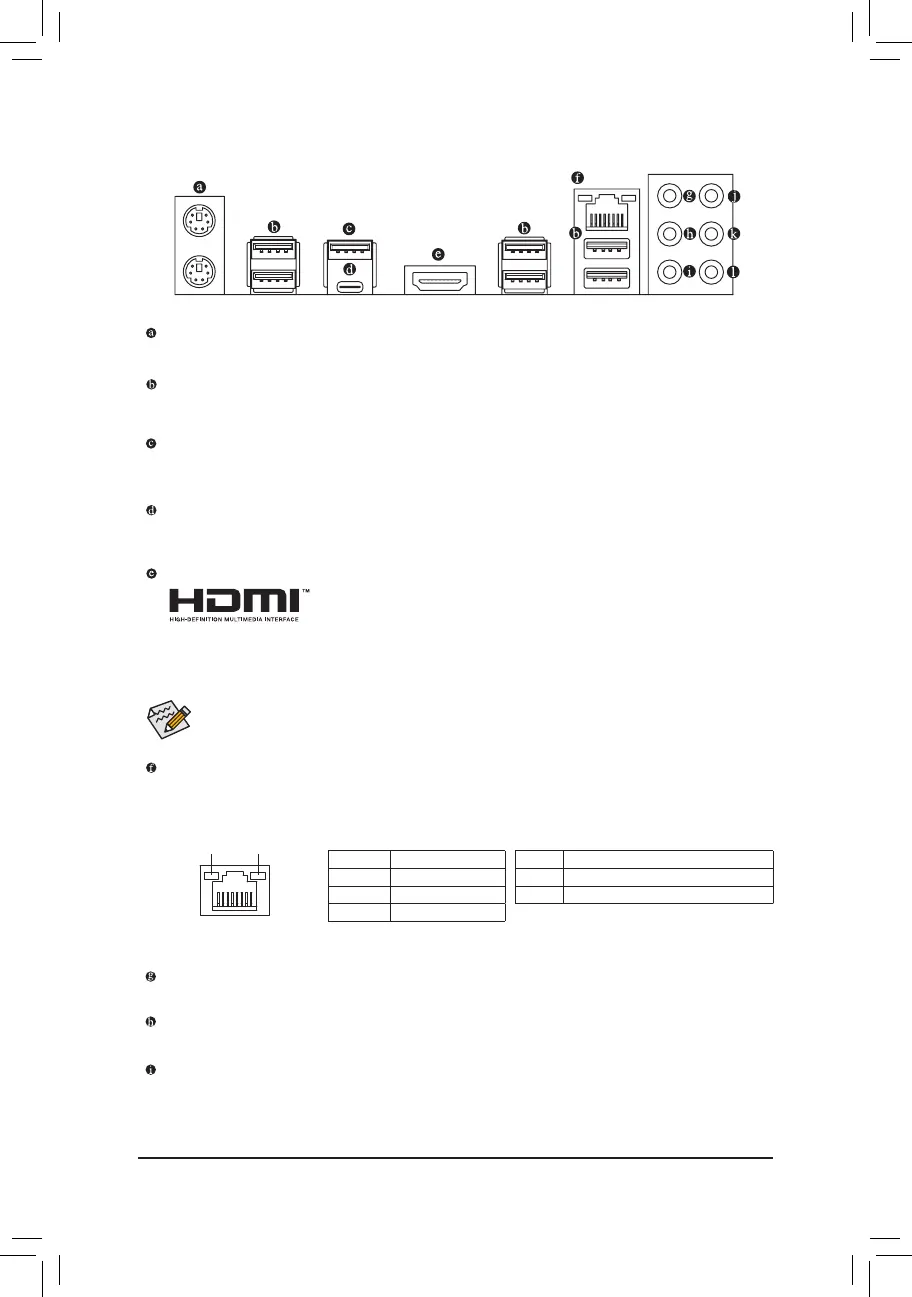

1-7 Back Panel Connectors
PS/2 Keyboard and PS/2 Mouse Port
Use the upper port (green) to connect a PS/2 mouse and the lower port (purple) to connect a PS/2 keyboard.
USB 3.1 Gen 1 Port
USB 3.1 Gen 2 Type-A Port (Red)
USB Type-C
™
Port
HDMI Port
The HDMI port supports HDCP 2.2 and Dolby TrueHD and DTS HD Master
output. You can use this port to connect your HDMI-supported monitor. The maximum supported
being used.
After installing the HDMI device, make sure to set the default sound playback device to HDMI. (The
item name may differ depending on your operating system.)
RJ-45 LAN Port
The Gigabit Ethernet LAN port provides Internet connection at up to 1 Gbps data rate. The following
describes the states of the LAN port LEDs.
Activity LED
Connection/
Speed LED
LAN Port
Activity LED:Connection/Speed LED:
State Description
Orange 1 Gbps data rate
Green 100 Mbps data rate
Off 10 Mbps data rate
State Description
Blinking Data transmission or receiving is occurring
On No data transmission or receiving is occurring
Center/Subwoofer Speaker Out (Orange)
Rear Speaker Out (Black)
Side Speaker Out (Gray)
- 11 -
