GIGA-BYTE TECHNOLOGY Z370XP SLI User Manual

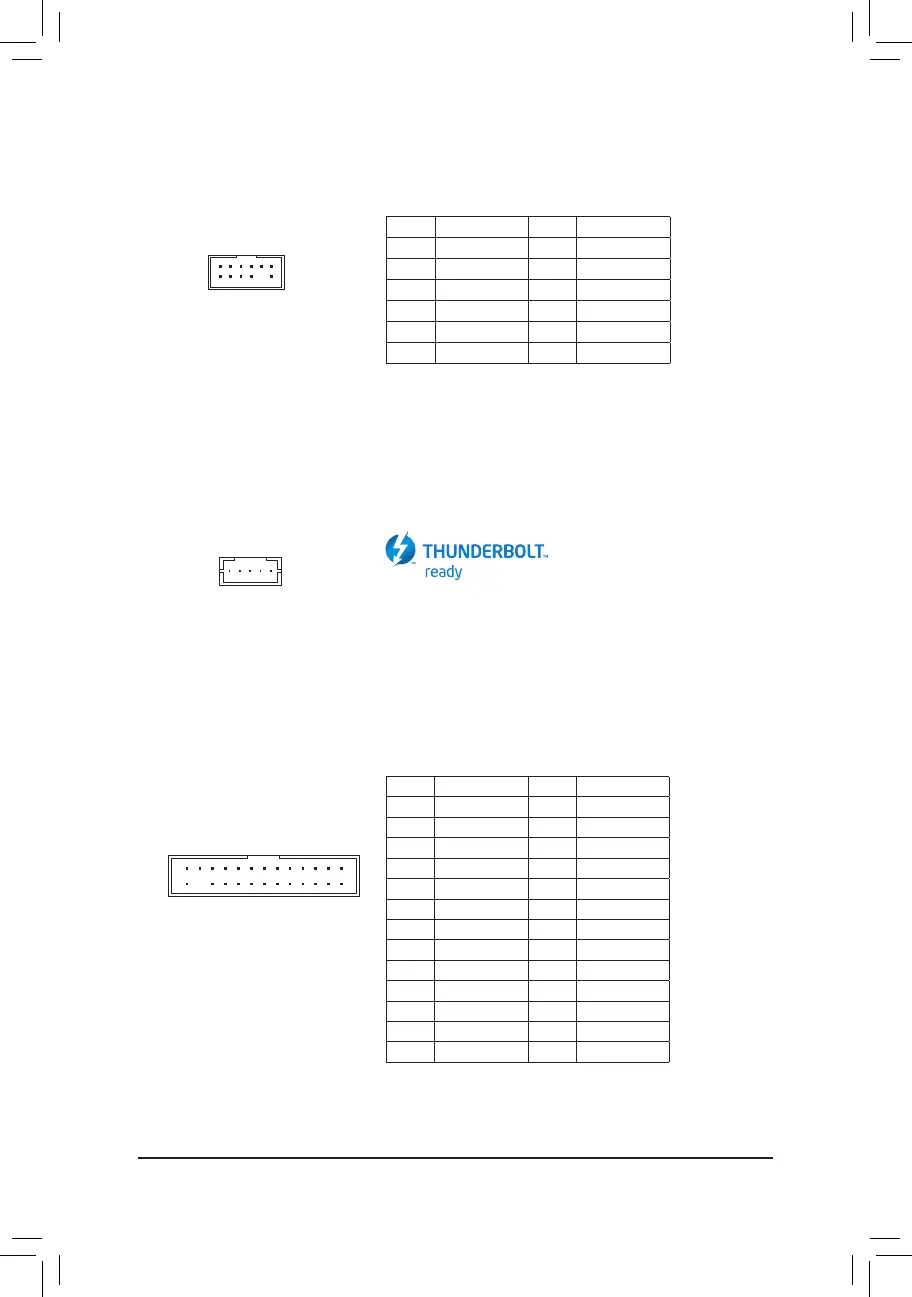

16) THB_C (Thunderbolt
™
Add-in Card Connector)
This connector is for a GIGABYTE Thunderbolt
™
add-in card.
Supports a Thunderbolt
™
add-in card.
17) LPT (Parallel Port Header)
The LPT header can provide one parallel port via an optional LPT port cable. For purchasing the optional
LPT port cable, please contact the local dealer.
Pin No.  Pin No. 
1 STB- 14 GND
2 AFD- 15 PD6
3 PD0 16 GND
4  17 PD7
5 PD1 18 GND
6 INIT- 19 ACK-
7 PD2 20 GND
8 SLIN- 21 BUSY
9 PD3 22 GND
10 GND 23 PE
11 PD4 24 No Pin
12 GND 25 SLCT
13 PD5 26 GND
26
25
2
1
G.QBOFM
15) TPM (Trusted Platform Module Header)
You may connect a TPM (Trusted Platform Module) to this header.
11
1
Pin No.  Pin No. 
1 LAD0 7 LAD3
2 VCC3 8 GND
3 LAD1 9 
4 No Pin 10 NC
5 LAD2 11 
6 LCLK 12 
12 2
1
- 20 -
