5AX
3-3

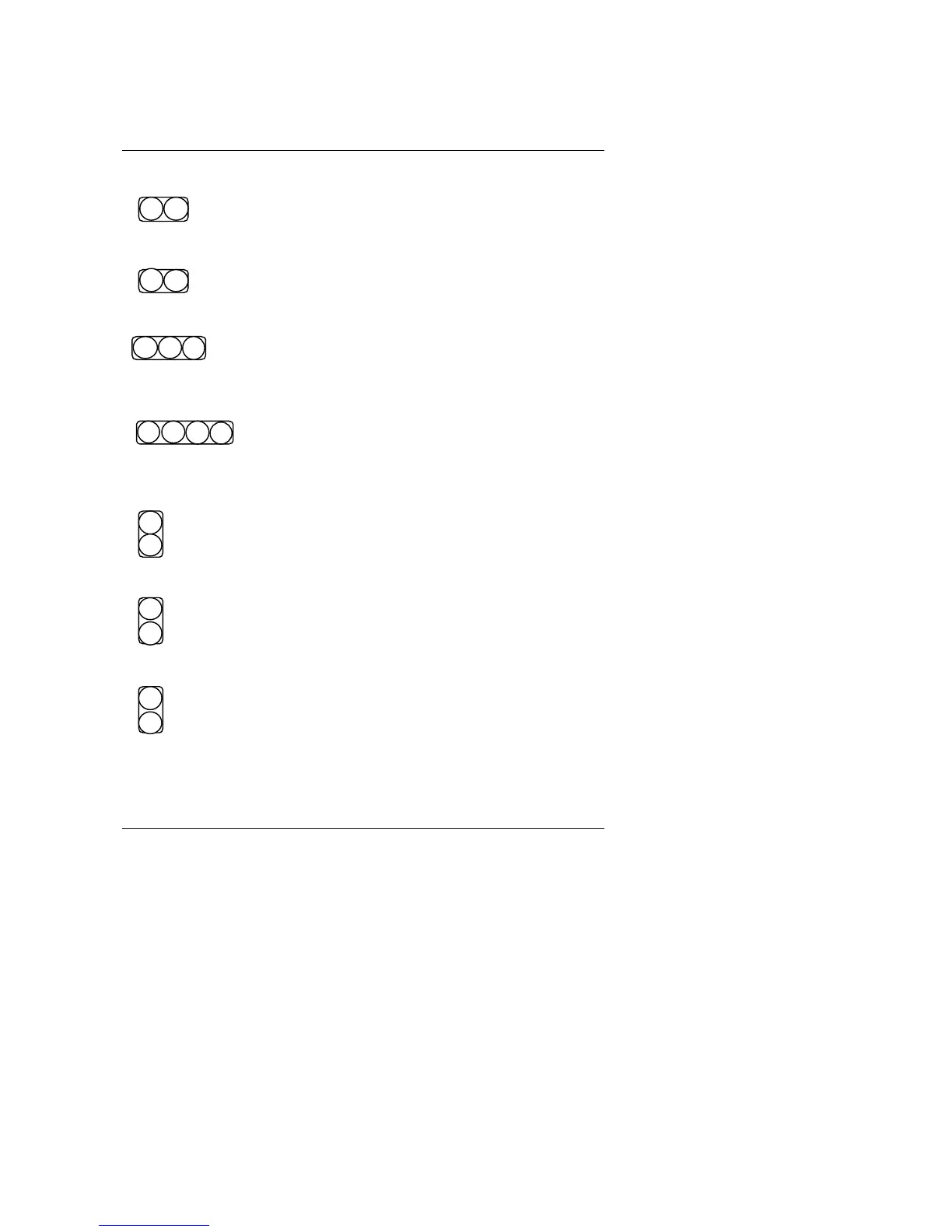

PWR: Soft Power Connector
RES:Reset Switch
Open: Normal Operation
Short: For Hardware Reset System
P+P−P−: Power LED
PIN 1: anode (+)
PIN 2: cathode (
−
)
PIN 3: cathode (
−
)
SPK: Speaker Connector
PIN 1: VCC
PIN 2: NC
PIN 3: NC
PIN 4: Data
HD: IDE Hard Disk Active LED
PIN 1: LED anode (+)
PIN 2: LED cathode (
−
)
GN: Green Switch
Open: Normal operation
Short: Entering Green Mode
GD: Green Function Active LED
PIN 1: LED athode (+)
PIN 2: LED cathode (
−
)
1
1
1
+
−
On – Off : For POWER ON or Suspend IN / OUT.
On 4 sec : For POWER OFF before VGA Enable or CMOS
setup select “delay 4sec.” for POWER OFF
mode.
1
