Gigabyte B365M D3V User Manual

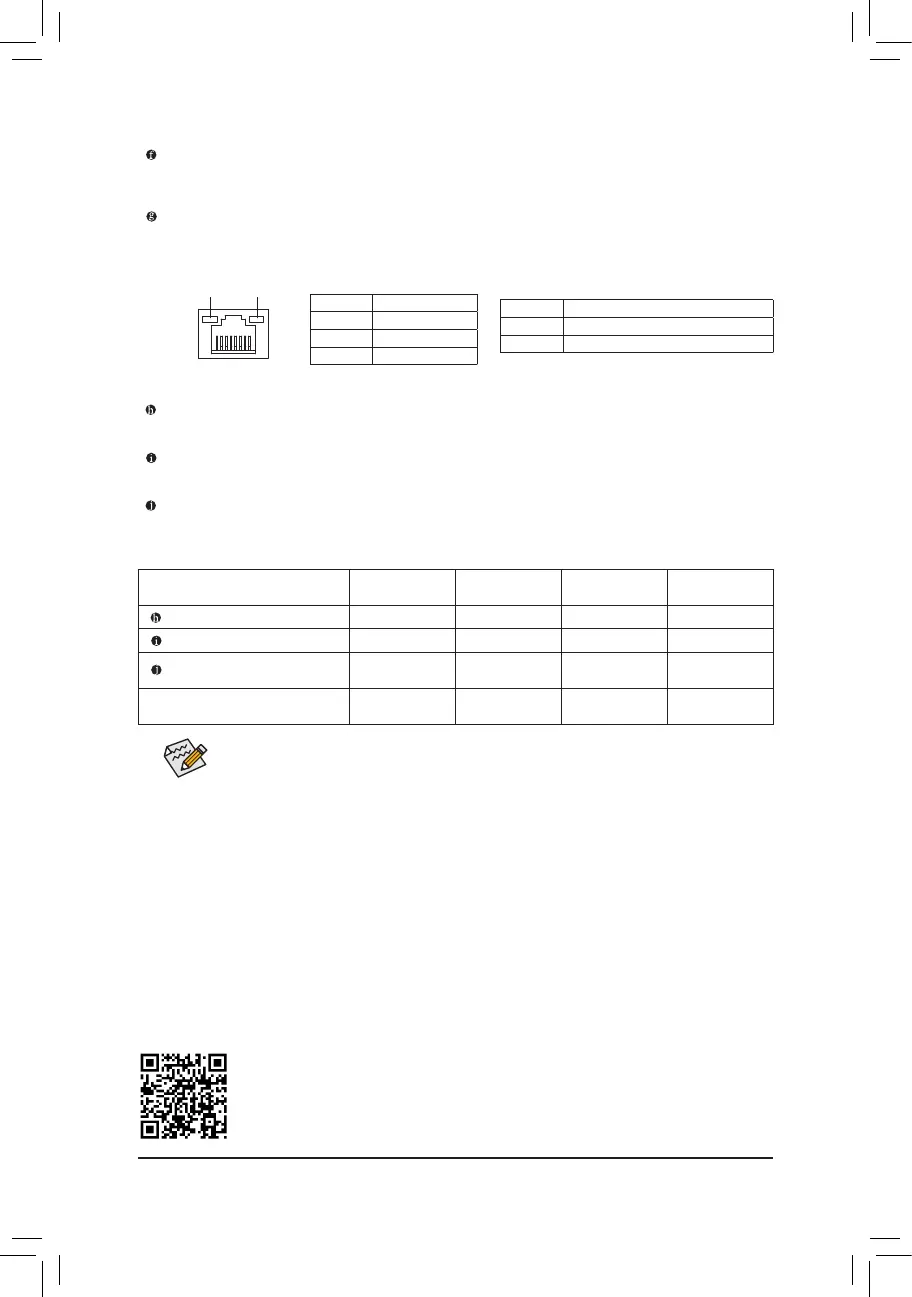

USB 3.1 Gen 1 Port
TheUSB3.1Gen1portsupportstheUSB3.1Gen1specicationandiscompatibletotheUSB2.0
specication.UsethisportforUSBdevices.
RJ-45 LAN Port
The Gigabit Ethernet LAN port provides Internet connection at up to 1 Gbps data rate. The following
describes the states of the LAN port LEDs.
Line In/Rear Speaker Out (Blue)
The line in jack. Use this audio jack for line in devices such as an optical drive, walkman, etc.
Line Out/Front Speaker Out (Green)
The line out jack.
Mic In/Center/Subwoofer Speaker Out (Pink)
The Mic in jack.
Activity LED
Connection/
Speed LED
LAN Port
Activity LED:
Connection/Speed LED:
State Description
Orange 1 Gbps data rate
Green 100 Mbps data rate
Off 10 Mbps data rate
State Description
Blinking Data transmission or receiving is occurring
Off No data transmission or receiving is occurring
Tocongure7.1-channelaudio,youhavetouseanHDfrontpanelaudiomoduleandenablethe
multi-channel audio feature through the audio driver.
AudioJackCongurations:
Jacks
Headphone/
2-channel
4-channel 5.1-channel 7.1-channel
LineIn/RearSpeakerOut
a a a
Line Out/Front Speaker Out
a a a a
Mic In/Center/Subwoofer
Speaker Out
a a
Front Panel Line Out/
Side Speaker Out
a
PleasevisitGIGABYTE'swebsitefordetailsonconguringtheaudiosoftware.
- 11 -

Gigabyte B365M D3V Specifications

General

Form Factor	Micro ATX
Chipset	Intel B365
CPU Socket	LGA 1151
Memory Type	DDR4
Memory Slots	4
Maximum Memory	64 GB
PCIe x16 Slots	1
PCIe x1 Slots	2
SATA Ports	6
M.2 Slots	1
USB 3.1 Gen 1 Ports	6
USB 2.0 Ports	6
Audio	Realtek ALC887
LAN	Realtek GbE LAN
RAID Support	0, 1, 5, 10
