1-7 Internal Connectors
Readthefollowingguidelinesbeforeconnectingexternaldevices:
• First make sure your devices are compliant with the connectors you wish to connect.
• Before installing the devices, be sure to turn off the devices and your computer. Unplug the power
cord from the power outlet to prevent damage to the devices.
• After installing the device and before turning on the computer, make sure the device cable has
been securely attached to the connector on the motherboard.

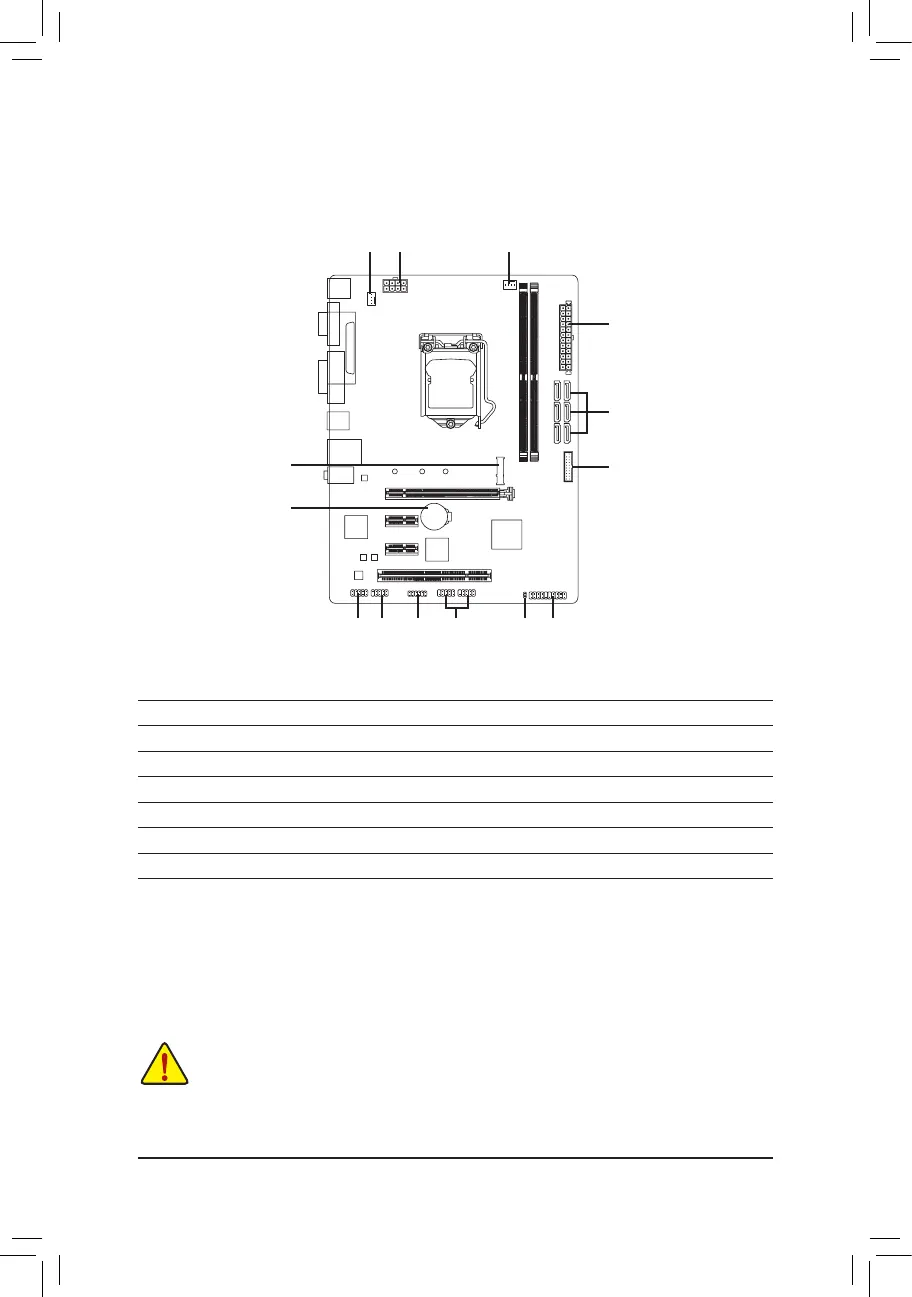

1) ATX_12V_2X4
2) ATX
3) CPU_FAN
4) SYS_FAN
5) SATA3 0/1/2/3/4/5
6) M2A
7) F_PANEL
8) F_AUDIO
9) F_USB30
10) F_USB1/F_USB2
11) COM
12) TPM
13) BAT
14) CLR_CMOS
4 1 3
2
9
10
6
7
12
8 11
5
13
14
- 12 -

Gigabyte B365M D3V Specifications

General

Form Factor	Micro ATX
Chipset	Intel B365
CPU Socket	LGA 1151
Memory Type	DDR4
Memory Slots	4
Maximum Memory	64 GB
PCIe x16 Slots	1
PCIe x1 Slots	2
SATA Ports	6
M.2 Slots	1
USB 3.1 Gen 1 Ports	6
USB 2.0 Ports	6
Audio	Realtek ALC887
LAN	Realtek GbE LAN
RAID Support	0, 1, 5, 10
