Gigabyte G24F User Manual

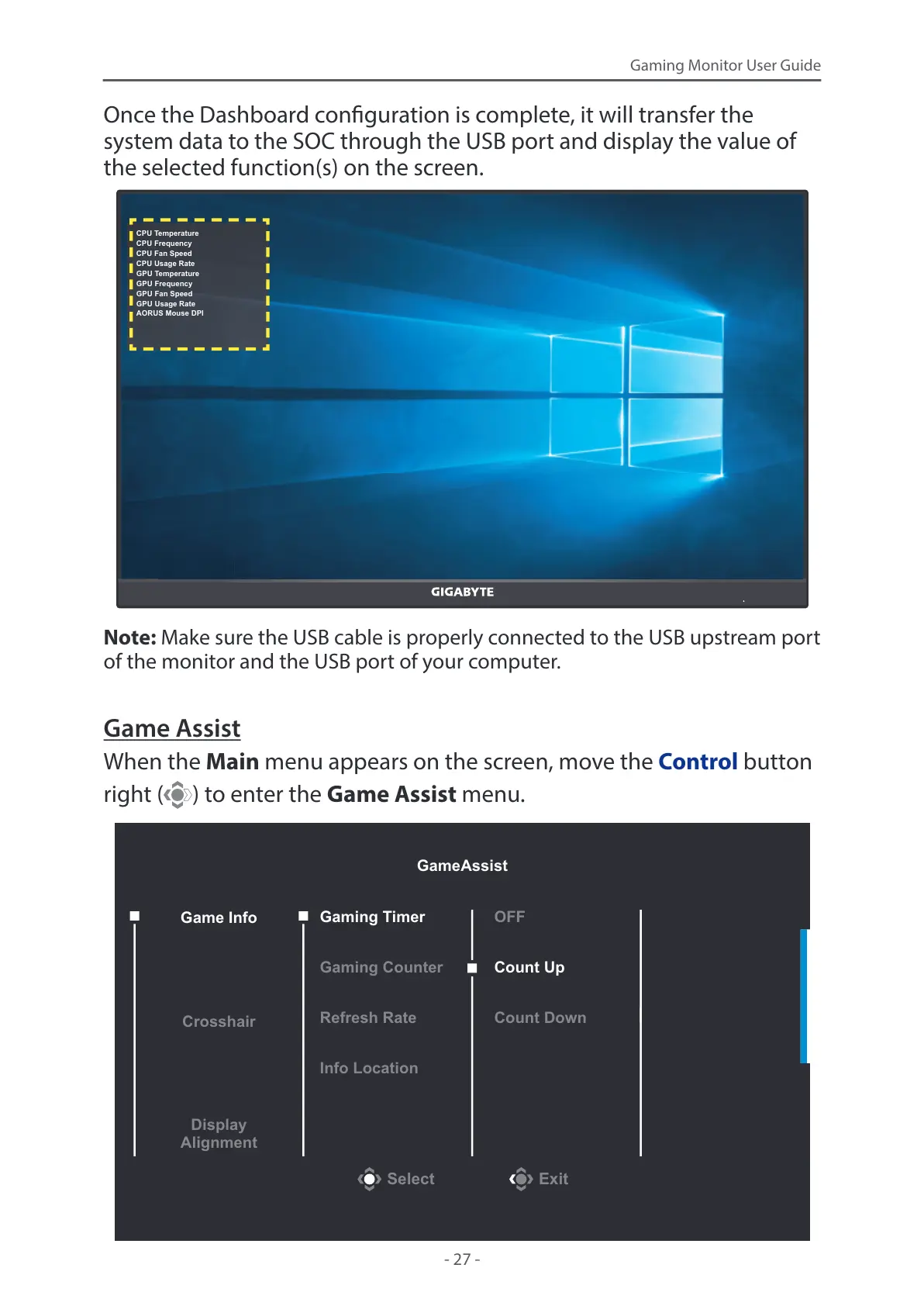

- 27 -
Gaming Monitor User Guide
Once the Dashboard conguration is complete, it will transer the
system data to the SOC through the USB port and display the value o
the selected unction(s) on the screen.
CPU Temperature
CPU Frequency
CPU Fan Speed
CPU Usage Rate
GPU Temperature
GPU Frequency
GPU Fan Speed
GPU Usage Rate
AORUS Mouse DPI
Note: Make sure the USB cable is properly connected to the USB upstream port
o the monitor and the USB port o your computer.
Game Assist
When the Main menu appears on the screen, move the Control button
right ( ) to enter the Game Assist menu.
Select Exit
GameAssist
Game Info
Display
Alignment
Crosshair
Gaming Timer
Gaming Counter
Refresh Rate
Info Location
OFF
Count Up
Count Down

Gigabyte G24F Specifications

General

Panel type	SS-IPS
Color depth	8 bit
Color gamut	90 %
Pixel pitch	0.2745 x 0.2745 mm
Screen shape	Flat
Backlight type	Edge LED
Display surface	Matt
Display diagonal	23.8 \
Native aspect ratio	-
Maximum refresh rate	170 Hz
sRGB coverage (typical)	120 %
Contrast ratio (typical)	1000:1
Display brightness (typical)	300 cd/m²
High Dynamic Range (HDR) supported	Yes
AMD FreeSync type	FreeSync Premium
Product color	Black
Market positioning	Gaming
USB hub version	3.2 Gen 1 (3.1 Gen 1)
DisplayPort version	1.2
Tilt angle range	-5 - 20 °
Cable lock slot type	Kensington
Panel mounting interface	100 x 100 mm
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Energy efficiency scale	A to G
Power consumption (max)	48 W
Power consumption (off)	0.3 W
Power consumption (standby)	0.5 W
Power consumption (typical)	- W
Package depth	148 mm
Package width	755 mm
Package height	470 mm
Package weight	8230 g
Cables included	DisplayPort, HDMI, USB
Harmonized System (HS) code	85285210

Weight and Dimensions

Depth (with stand)	136.75 mm
Width (with stand)	541 mm
Height (with stand)	519.3 mm
Weight (with stand)	5300 g
Depth (without stand)	53.4 mm
Height (without stand)	326.4 mm
Weight (without stand)	3600 g
