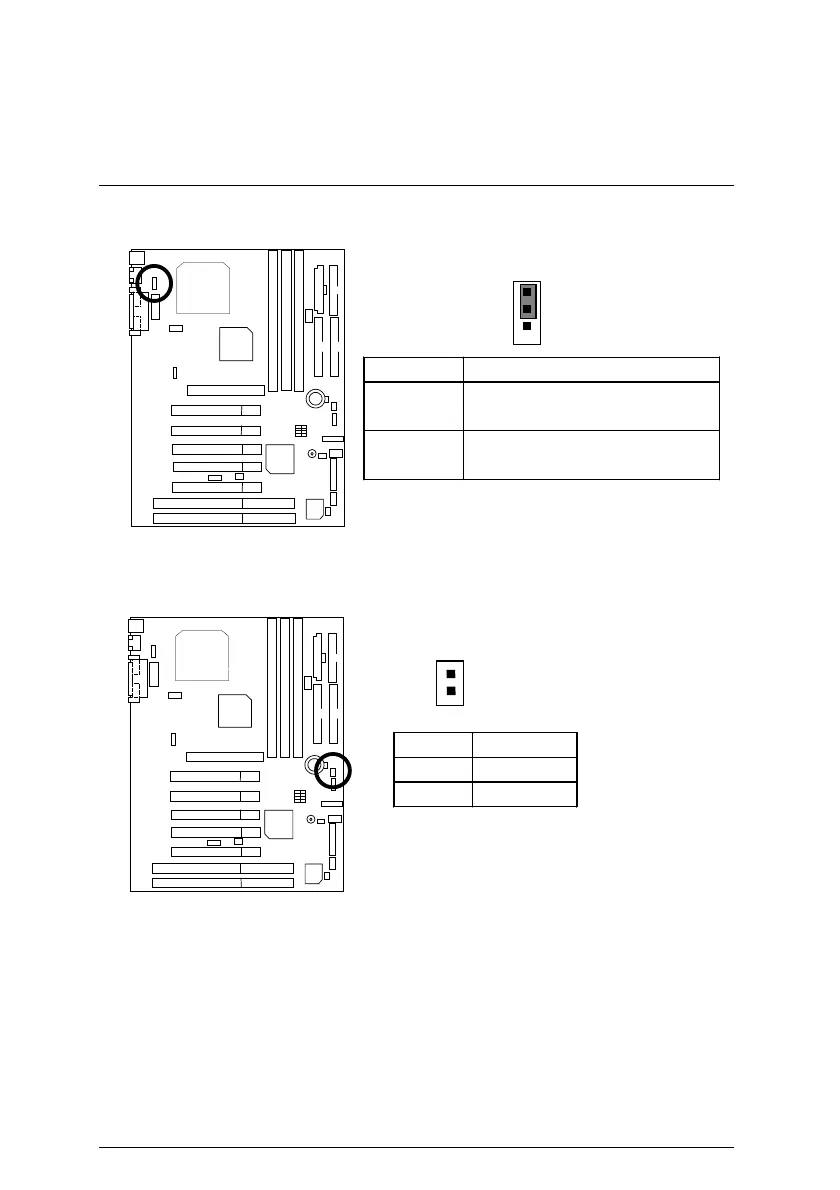

Panel and Jumper Definition
16
JP10: PS/2 Keyboard Power On
1
Pin No. Definition
1-2 close PS/2 Keyboard Power on
Enabled
2-3 close PS/2 Keyboard Power on
Disabled (Default)
JP1: Case Open
Pin No. Definition
1 Signal
2 GND
