Hardware Installation- 27 -
English

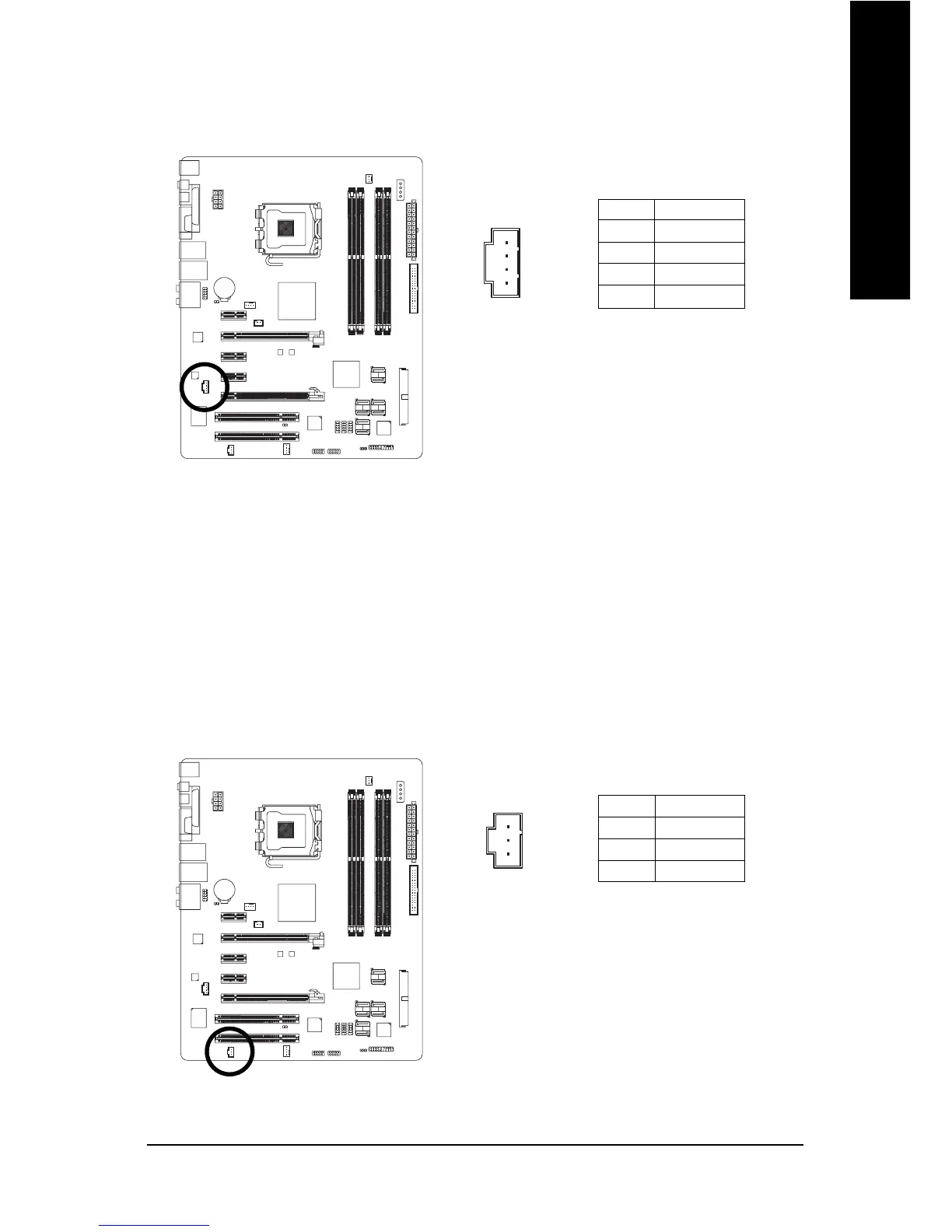

16) CD_IN (CD IN Connector)
Connect CD-ROM or DVD-ROM audio out to the connector.
Pin No. Definition
1 CD-L
2 GND
3 GND
4 CD-R
1
17) SPDIF_IN (S/PDIF In Connector)
Use S/PDIF IN feature only when your device has digital output function. Be careful with the
polarity of the SPDIF_IN connector. Check the pin assignment carefully while you connect the
S/PDIF cable, incorrect connection between the cable and connector will make the device unable
to work or even damage it. For optional S/PDIF cable, please contact your local dealer.
Pin No. Definition
1 Power
2 SPDIFI
3 GND
1
To Next Page
