GA-965P-DS3P Motherboard - 28 -
English

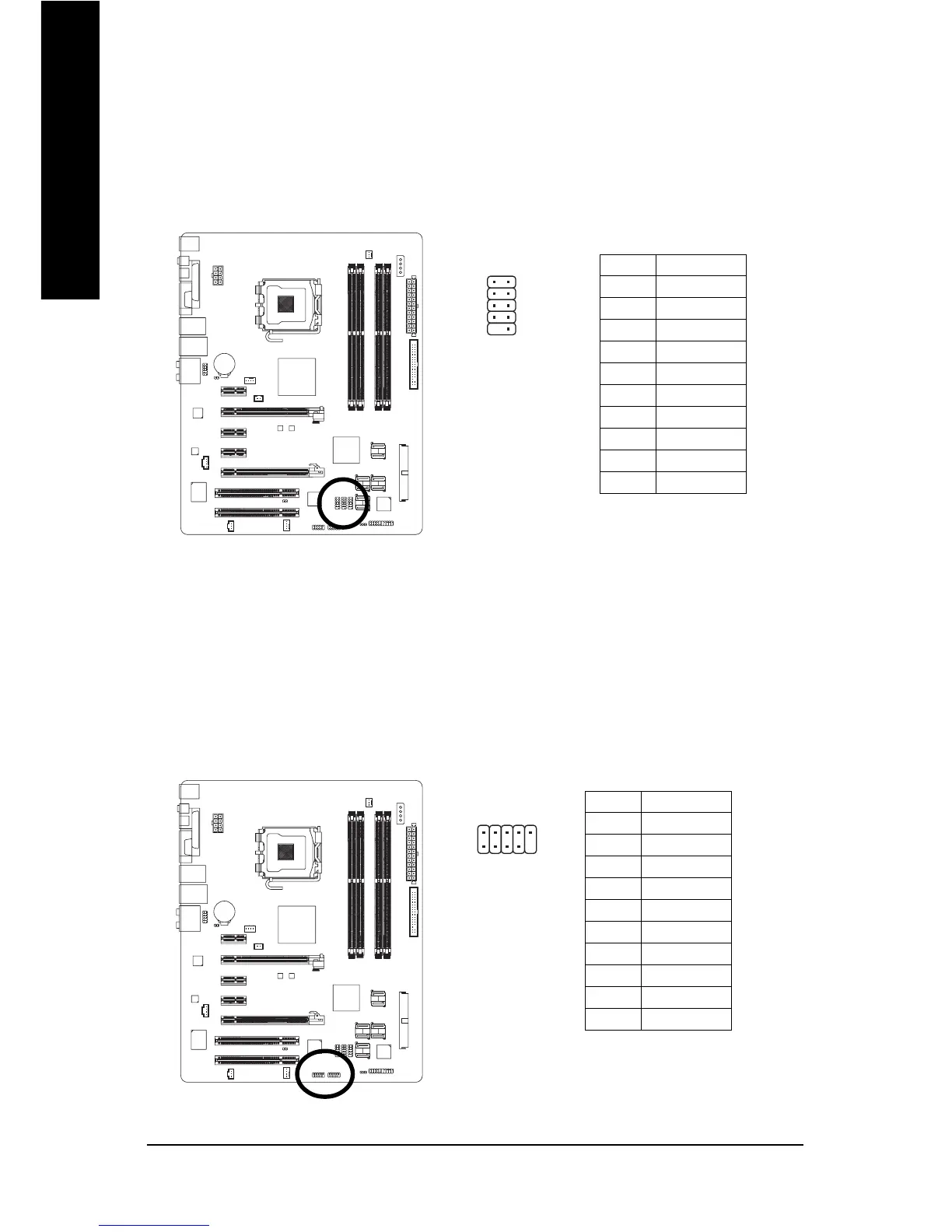

18) F_ USB1 / F_USB2 / F_USB3 (Front USB Connector)
Be careful with the polarity of the front USB connector. Check the pin assignment carefully while
you connect the front USB cable, incorrect connection between the cable and connector will make
the device unable to work or even damage it. For optional front USB cable, please contact your
local dealer.
12
910
Pin No. Definition
1 Power (5V)
2 Power (5V)
3 USB DX-
4 USB Dy-
5 USB DX+
6 USB Dy+
7 GND
8 GND
9 No Pin
10 NC
1
9
2
10
19) F1_1394 / F2_1394 (Front IEEE 1394 Connector)
Serial interface standard set by Institute of Electrical and Electronics Engineers, which has features
like high speed, high bandwidth and hot plug. Be careful with the polarity of the IEEE 1394
connector. Check the pin assignment carefully while you connect the IEEE 1394 cable, incorrect
connection between the cable and connector will make the device unable to work or even damage
it. For optional IEEE 1394 cable, please contact your local dealer.
Pin No. Definition
1TPA+
2TPA-
3 GND
4 GND
5 TPB+
6 TPB-
7 Power (12V)
8 Power (12V)
9 No Pin
10 GND
