Gigabyte GA-B75M-D3P - Motherboard Block Diagram

- 6 -
iTE
Super I/O

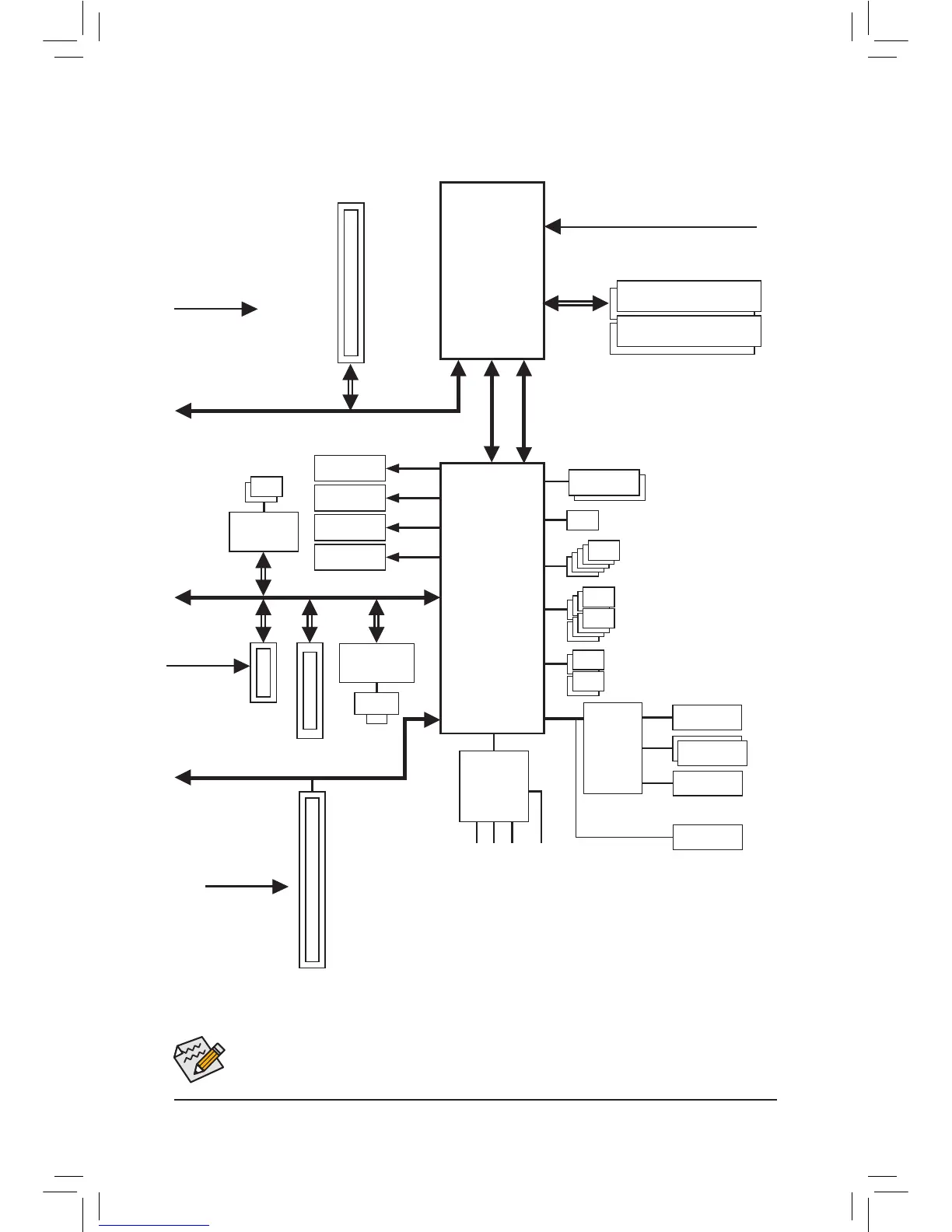

GA-B75M-D3P Motherboard Block Diagram
PS/2 KB/Mouse
LGA1155
CPU
Intel
®
B75
PCIe CLK
(100MHz)
PCI Express Bus
CPUCLK+/-(100MHz)
1 PCI Express x16
Dual BIOS
COM
LPT
8 USB 2.0/1.1
4 USB 3.0/2.0
DDR31600/1333/1066MHz
PCI Express Bus
PCIe CLK
(100MHz)
1 PCI Express x1
1 PCI Express x4
5 SATA 3Gb/s
HDMI
D-Sub
DVI-D
DisplayPort
1 SATA 6Gb/s
DMI 2.0
FDI
x16
Dual Channel Memory
x1
x1
x4 x1
PCI CLK
(33MHz)
1 PCI
PCI Bus
LAN
RJ45
Realtek
GbE LAN
Fordetailedproductinformation/limitation(s),referto"1-2ProductSpecications."
LineOut(FrontSpeakerOut)
MIC(Center/Subwoofer
SpeakerOut)
LineIn(RearSpeakerOut)
CODEC
S/PDIF Out
Marvell
88SE9172
2 SATA 6Gb/s
TPM
LPC
Bus
