- 8 -

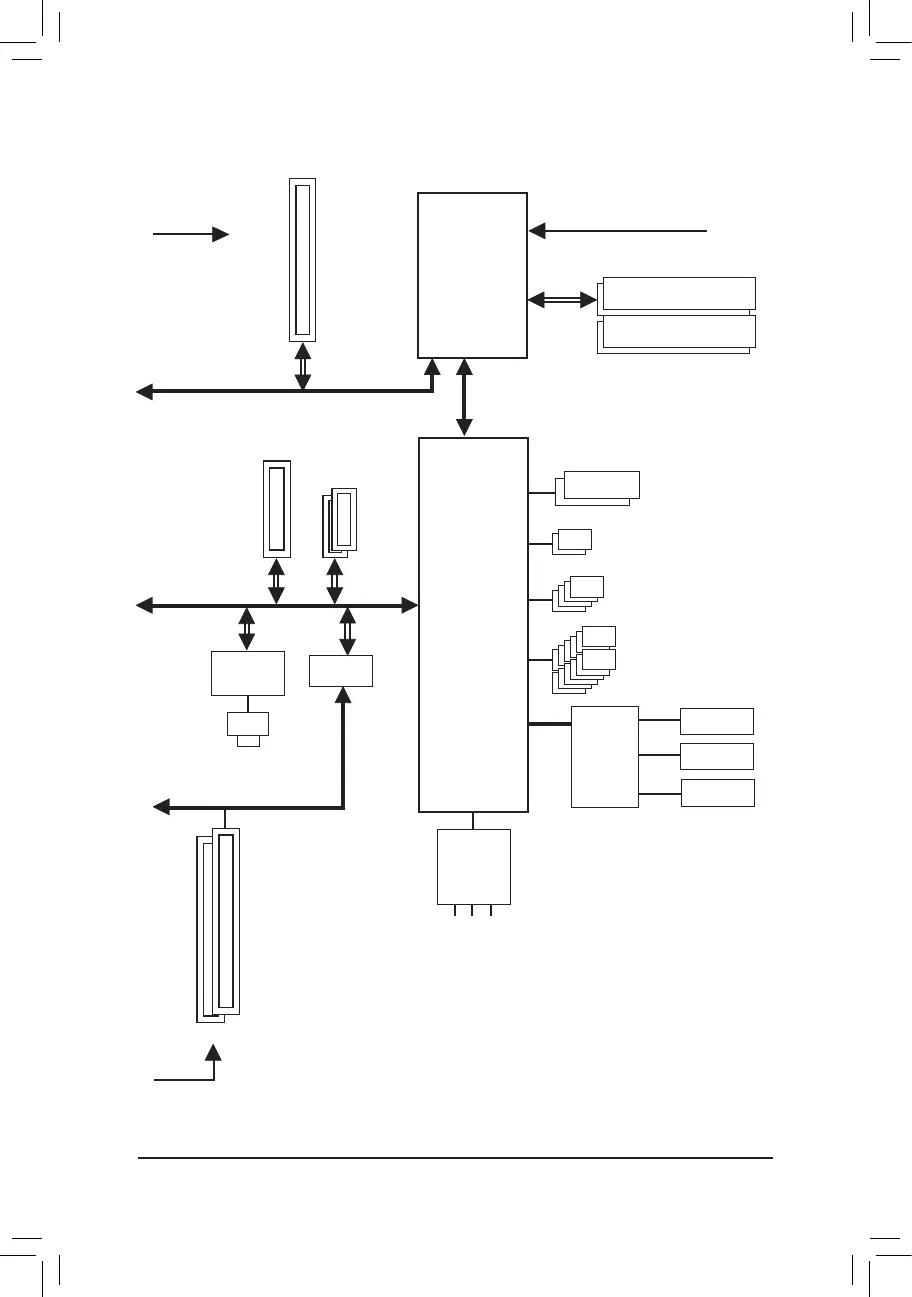

GA-P67-DS3-B3/GA-PH67-DS3-B3 Motherboard Block Diagram
j
Only for GA-P67-DS3-B3.
k
Only for GA-PH67-DS3-B3.
LGA1155
CPU
Intel
®
P67
j
Intel
®
H67
k
PCI Express Bus
CPU CLK+/- (100 MHz)
PCIe CLK
(100 MHz)
Dual Channel Memory
1 PCI Express x16
x16
DMI Interface
PCI Express Bus
LAN
RJ45
Realtek
RTL8111E
12 USB 2.0/1.1
4 SATA 3Gb/s
Dual BIOS
PS/2 KB/Mouse
COM
iTE
IT8728
LPC
Bus
2 PCI
PCI Bus
PCI CLK
(33 MHz)
PCIe to PCI
Bridge
x1
2 SATA 6Gb/s
x1
x4 x1
2 PCI Express x1
1 PCI Express x4
CODEC
Line In (Rear Speaker Out )
Line Out (Front Speaker Out )
MIC (Center/Subwoofer Speaker Out )
LPT
DDR3 2133/1866/1600/1333/1066 MHz
j
DDR3 1333/1066/800 MHz
k
