Gigabyte GA-P67-DS3-B3 User Manual

Appendix - 96 -

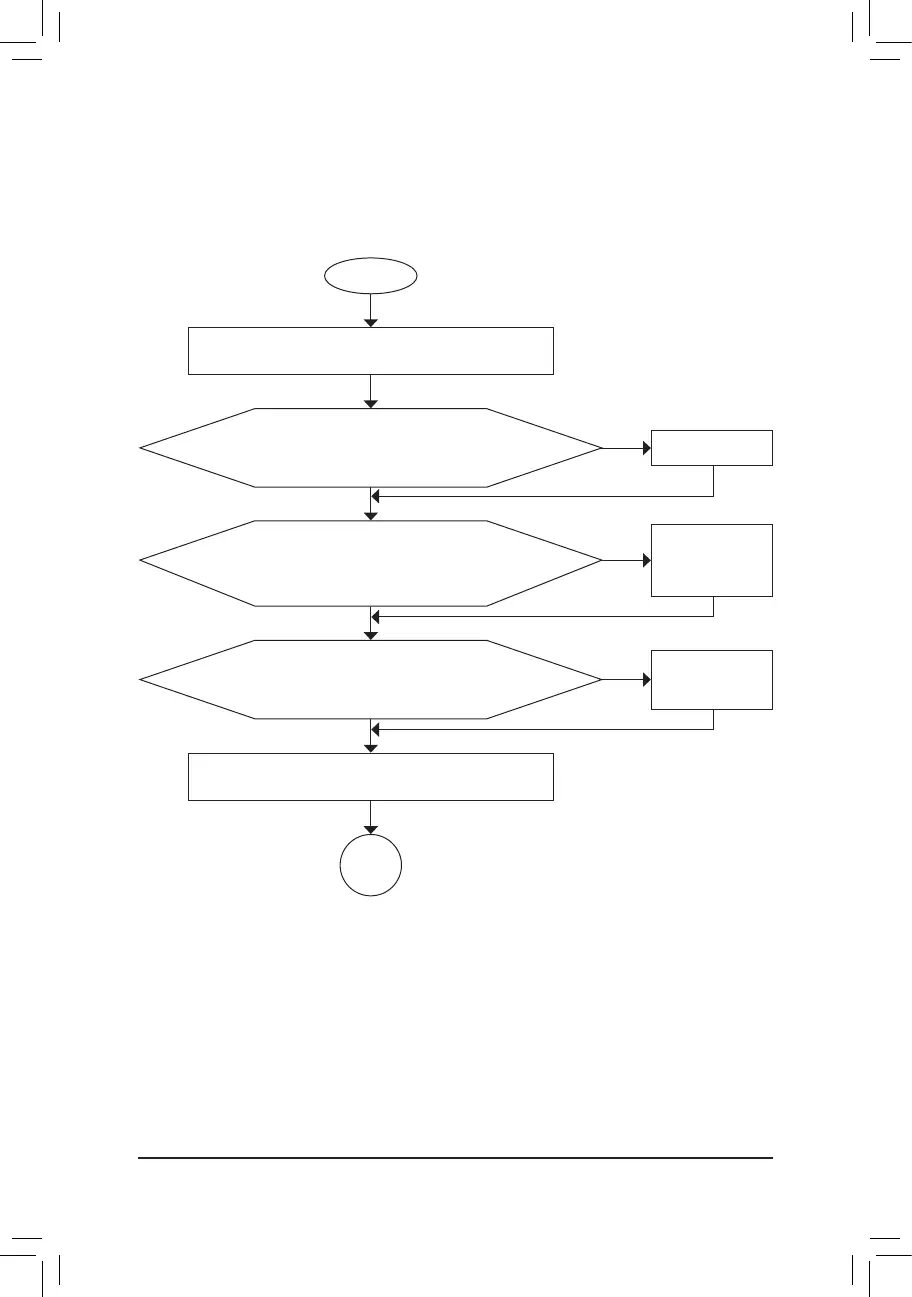

5-3-2 Troubleshooting Procedure
If you encounter any troubles during system startup, follow the troubleshooting procedure below to solve the
problem.
START
A
Turn off the power. Remove all peripherals, connecting cables, and
power cord etc.
Isolate the short circuit.
Secure the CPU cooler
on the CPU. Connect the
CPU cooler power cable
to the motherboard.
Correctly insert the
memory into the memory
socket.
(Continued...)
Yes
Theproblemisveriedandsolved.
Theproblemisveriedandsolved.
Theproblemisveriedandsolved.
No
No
No
Yes
Yes
Insert the graphics card. Connect the ATX main power cable and the
12V power cable. Turn on the power to start the computer.
Make sure the motherboard does not short-circuit with the chassis or
other metal objects.
Check if the CPU cooler is attached to the CPU securely. Is the pow-
er connector of the CPU cooler connected to the CPU_FAN header
properly?
Check if the memory is installed properly on the memory slot.
Make sure the graphics card is securely seated in the
expansionslotandpowerconnectorsarermlyattached.

Gigabyte GA-P67-DS3-B3 Specifications

General

Non-ECC	Yes
Memory voltage	1.5 V
Memory channels	Dual-channel
Number of memory slots	4
Maximum internal memory	32 GB
Supported memory clock speeds	1066, 1333, 1600, 1866, 2133 MHz
Processor socket	LGA 1155 (Socket H2)
Processor manufacturer	Intel
Compatible processor series	Intel® Celeron®
Maximum number of SMP processors	1
USB 2.0 connectors	3
Number of SATA III connectors	2
Number of Parallel ATA connectors	0
USB 2.0 ports quantity	6
Component for	PC
Motherboard chipset	Intel® P67
Audio output channels	7.1 channels
Motherboard form factor	ATX
Compatible operating systems	Windows 7/Vista/XP
On-board graphics card	No
RAID levels	0, 1, 5, 10
Bundled software	Norton Internet Security
Ethernet interface type	Gigabit Ethernet
BIOS type	AWARD
ACPI version	1.0b
BIOS memory size	64 Mbit

Weight and Dimensions

Depth	215 mm
Width	305 mm
