- 91 - Appendix

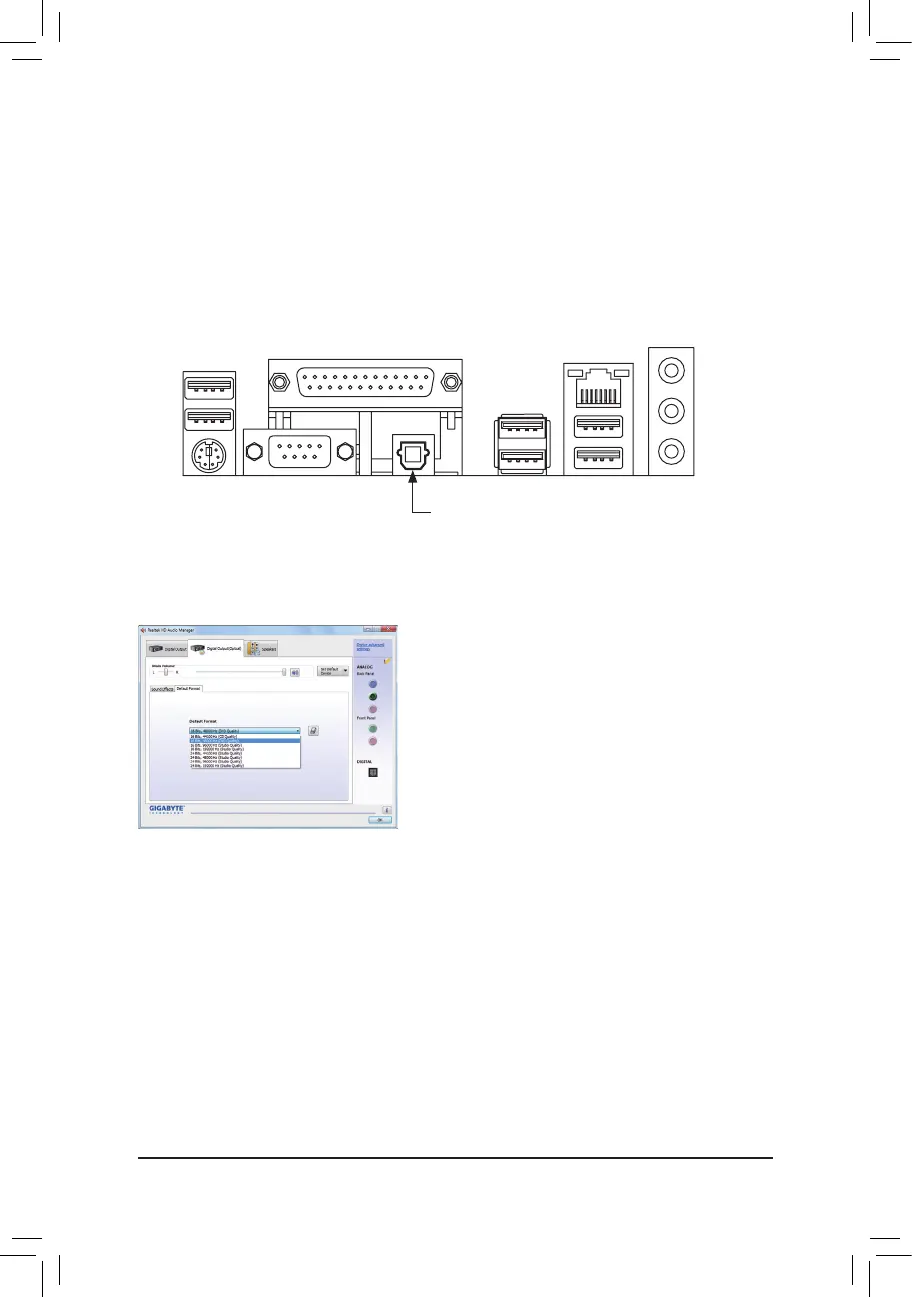

5-2-2 Conguring S/PDIF Out
The S/PDIF Out jack can transmit audio signals to an external decoder for decoding to get the best audio
quality.
1. Connecting a S/PDIF Out Cable:
Connect a S/PDIF optical cable to an external decoder for transmitting the S/PDIF digital audio signals.
(Note) Enter the Digital Output(Optical) screentocongurefurthersettingsifyouusetheS/PDIFOut
connector on the back panel for digital audio output or enter the Digital Output screen if you use
the internal S/PDIF Out connector (SPDIF_O) for digital audio output.
2. Conguring S/PDIF Out:
On the Digital Output(Optical) screen
(Note)
, click the Default Format tab and then select the sample rate and
bit depth. Click OK to complete.
Connects to a S/PDIF optical cable

Gigabyte GA-P67-DS3-B3 Specifications

General

Non-ECC	Yes
Memory voltage	1.5 V
Memory channels	Dual-channel
Number of memory slots	4
Maximum internal memory	32 GB
Supported memory clock speeds	1066, 1333, 1600, 1866, 2133 MHz
Processor socket	LGA 1155 (Socket H2)
Processor manufacturer	Intel
Compatible processor series	Intel® Celeron®
Maximum number of SMP processors	1
USB 2.0 connectors	3
Number of SATA III connectors	2
Number of Parallel ATA connectors	0
USB 2.0 ports quantity	6
Component for	PC
Motherboard chipset	Intel® P67
Audio output channels	7.1 channels
Motherboard form factor	ATX
Compatible operating systems	Windows 7/Vista/XP
On-board graphics card	No
RAID levels	0, 1, 5, 10
Bundled software	Norton Internet Security
Ethernet interface type	Gigabit Ethernet
BIOS type	AWARD
ACPI version	1.0b
BIOS memory size	64 Mbit

Weight and Dimensions

Depth	215 mm
Width	305 mm
