Gigabyte GA-P67-DS3-B3 User Manual

- 87 - Appendix
•
Restoring the Master Drive to a Previous State (for Recovery Volume only)
When two hard drives are set to Recovery Volume in Update on Request mode, you can restore the master
drive data to the last backup state when needed. For example, in case the master drive detects a virus, you
can restore the recovery drive data to the master drive.

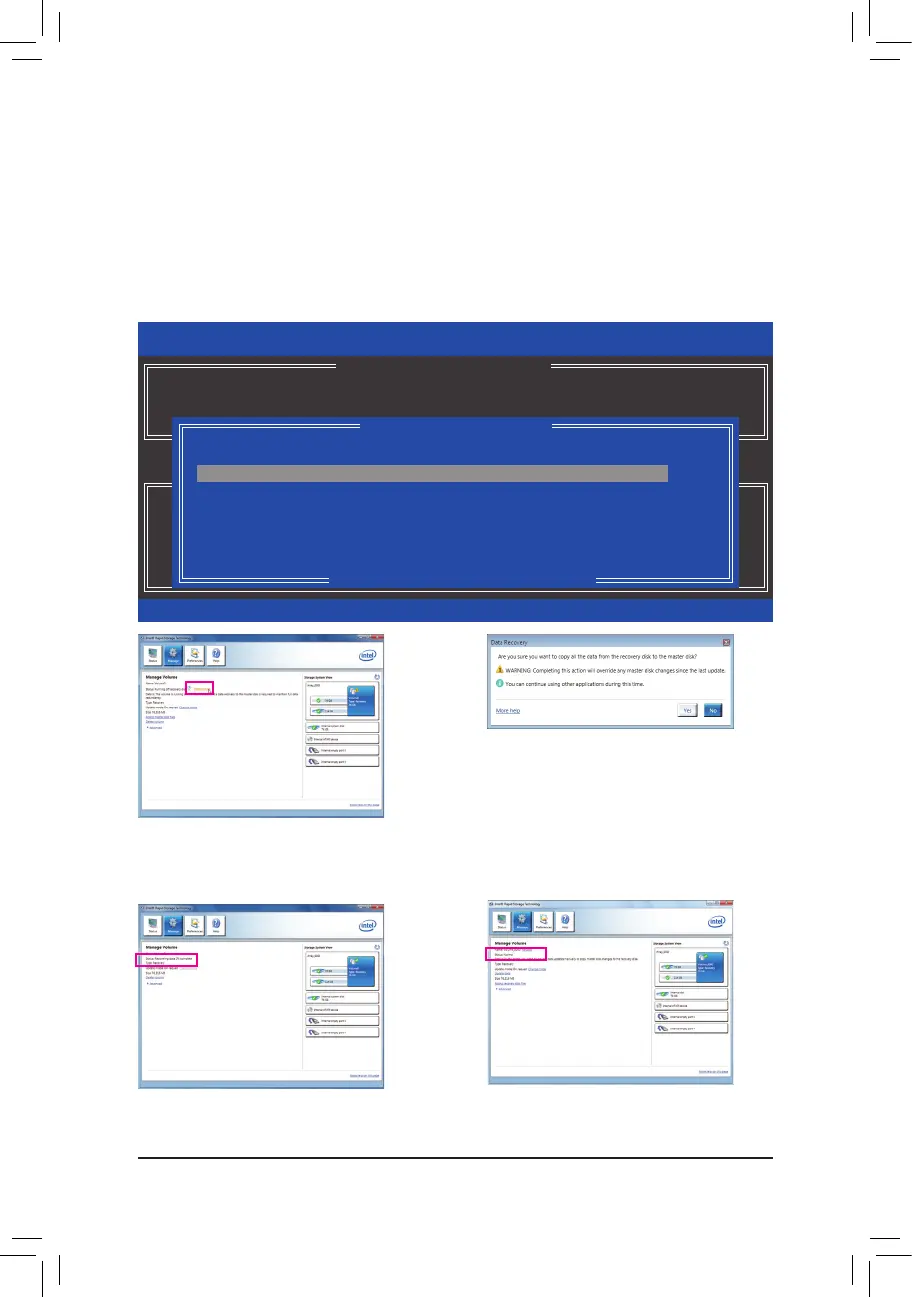

Step 1:
Select 4. Recovery Volume Options in the MAIN MENU of the Intel RAID Configuration Utility. On the
RECOVERY VOLUMES OPTIONS menu, select Enable Only Recovery Disk to show the recovery drive in
theoperatingsystem.Followtheon-screeninstructionstocompleteandexittheRAIDCongurationUtility.
Intel(R) Rapid Storage Technology - Option ROM - 10.0.0.1046
Copyright(C) 2003-10 Intel Corporation. All Rights Reserved.
Choose the RAID level:
RAID0: Stripes data (performance).
RAID1: Mirrors data (redundancy).
Recovery: Copies data between a master and a recovery disk.
RAID10: Mirrors data and stripes the mirror.
RAID5: Stripes data and parity.
[
hi
]-select [ESC]-Previous Menu [ENTER]-Select
[ HELP ]
[ RECOVERY VOLUME OPTIONS ]
1. Enable Only Recovery Disk
2. Enable Only Master Disk
[ SELECT RECOVERY VOLUME ]
[
hi
]-Up/Down [SPACE]-Selects [ENTER]-Done
Name Level Capacity Status Bootable

Volume0 Recovery(OnReq) 111.7GB NeedsUpdate Yes
Select a Recovery volume to do the operation.
Step 2:
Go to the Manage menu of the Intel Rapid Stor-
age Technology utility and click Recover data in
Manage Volume.
The Status item on the left of the screen dis-
plays the rebuild progress.
Step 3:
Click Yes to begin the data recovery.
Step 4:
After the recovery volume is completed, the
Status will display as Normal.

Gigabyte GA-P67-DS3-B3 Specifications

General

Non-ECC	Yes
Memory voltage	1.5 V
Memory channels	Dual-channel
Number of memory slots	4
Maximum internal memory	32 GB
Supported memory clock speeds	1066, 1333, 1600, 1866, 2133 MHz
Processor socket	LGA 1155 (Socket H2)
Processor manufacturer	Intel
Compatible processor series	Intel® Celeron®
Maximum number of SMP processors	1
USB 2.0 connectors	3
Number of SATA III connectors	2
Number of Parallel ATA connectors	0
USB 2.0 ports quantity	6
Component for	PC
Motherboard chipset	Intel® P67
Audio output channels	7.1 channels
Motherboard form factor	ATX
Compatible operating systems	Windows 7/Vista/XP
On-board graphics card	No
RAID levels	0, 1, 5, 10
Bundled software	Norton Internet Security
Ethernet interface type	Gigabit Ethernet
BIOS type	AWARD
ACPI version	1.0b
BIOS memory size	64 Mbit

Weight and Dimensions

Depth	215 mm
Width	305 mm
