Hardware Installation
3
4
5
1
2
3
4
Note!
• The carrier code is marked on each carrier and matches a code laser marked on to the IHS(Integrated
Heat Spreader) to ensure the right parts are used together

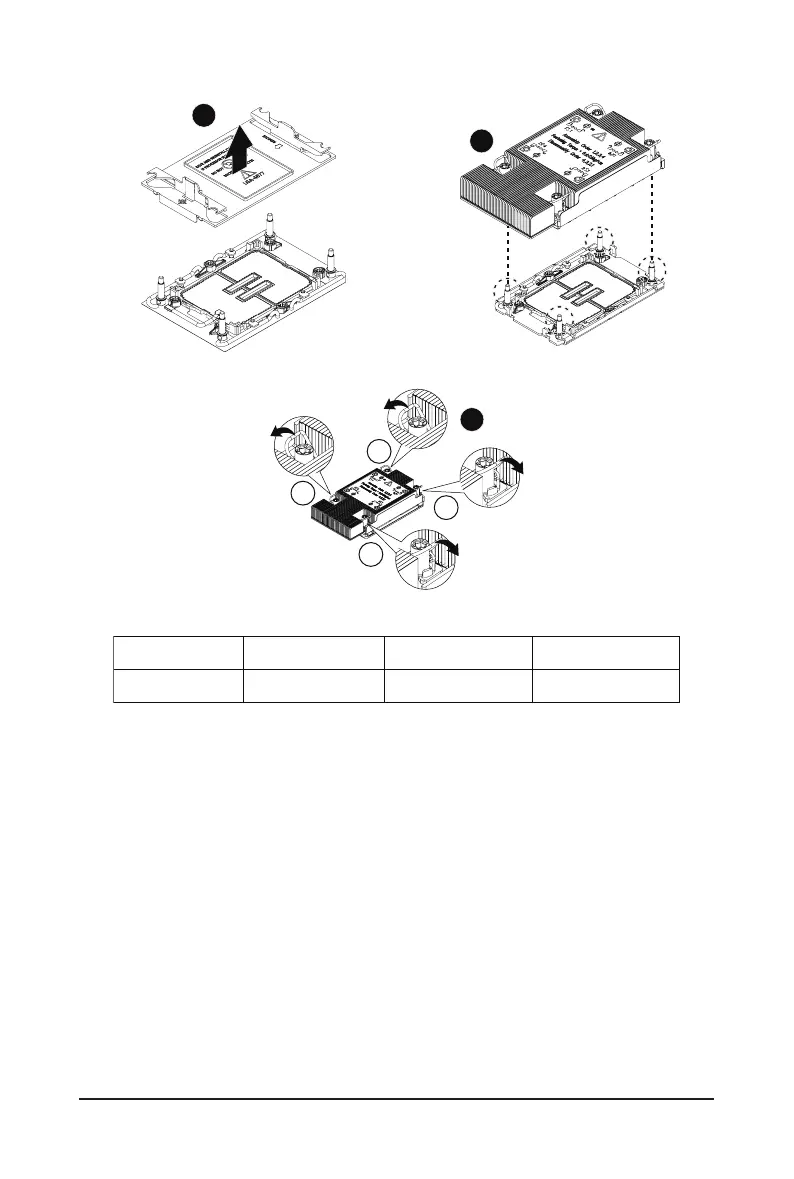

• The illustrations of the heat-sink installation shown are for reference only.
Package Type
Carrier Code
Xeon® SP XCCXeon® SP MCCXeon® SP+HBM
E1A
E1C
E1B
Carrier Types used for Package Types
