Dashboard (01_01)
KEY:
1. Instrument panel
2. Headlamps switch, horn and stop
3. Front brake control
4. Throttle grip
5. Ignition lock
6. Clutch control
7. Front brake liquid tank
01_02

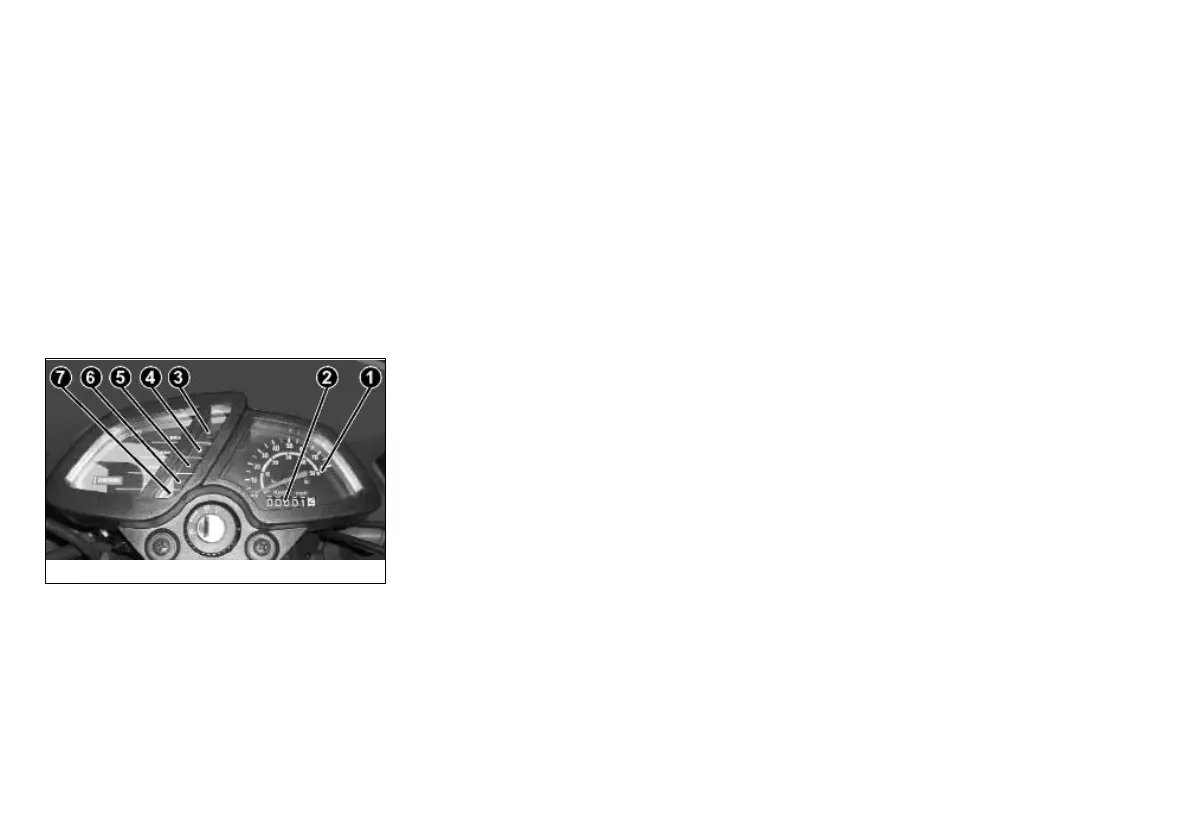

Analogue instrument panel (01_02)
KEY:
1. Speedometer
The speedometer indicates the motion speed in kilometres per hour.
2. Odometer
Total of covered kilometres. The figure on the right side indicates the number of meters
in hundreds.
3. High-beam warning light
4. Temperature indicator
If the indicator is on, the coolant temperature has exceeded 105º C.
5. Turn indicator warning light
6. Oil reserve warning light
This warning light turns on when there is an oil reserve of 0,25 l.
9
