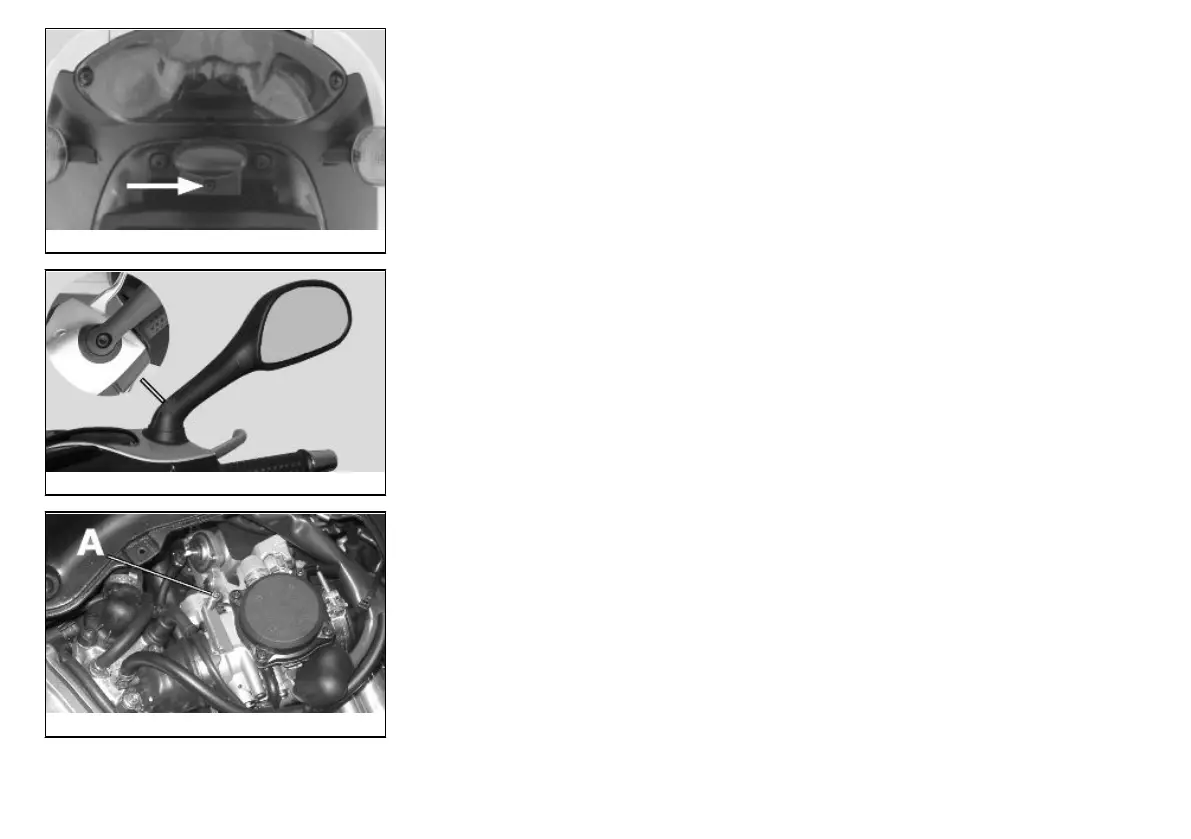

03_34
Number plate light (03_34)
Loosen the locking screws fitted on the license plate light support and remove it.
Remove the rubber bulb socket from its housing; then remove the bulb and replace
it.
03_35
Rear-view mirrors (03_35)
The mirrors can be set to the desired position by adjusting the mirror frame.
The mirrors must be adjusted so that the shafts are perpendicular to the vehicle's
direction axis.
To adjust the mirror opening angle loosen the screw fitted at the end of the shaft and
fasten it once the desired position is reached.
03_36
Idle adjustment (03_36, 03_37)
To adjust idle it is necessary to reach the screw "A" located in the carburettor.
To carry out this adjustment it is necessary to reach the catalytic muffler as shown in
the picture, or else by lifting the saddle and removing the hatch located at the bottom
of the helmet compartment. Idle adjustment must be carried out with the rear wheel
lifted off the ground (vehicle resting on centre stand) and with a hot engine. tighten or
loosen the screw until reaching a regular idling speed before running the engine.
To adjust the throttle transmission clearance it is necessary to intervene on the ad-
justment screw "C" located on the right side of the carburettor. Once this operation is
finished, refit the rubber cap protecting the adjustment screw.
55
3 Maintenance
