Wrenches: 8/10/13/14/17 mm Open end wrench
Large Adjustable Crescent Wrench
Philips Head Screwdrivers
Oil, Grease or Lubricant
ADJUSTING THE HEAD UNIT
The head unit will come adjusted from the factory. However, riding on rough
terrain and general use may cause the head unit to become loose over time. It
may be necessary to adjust the head unit from time to time.
To adjust the head unit:

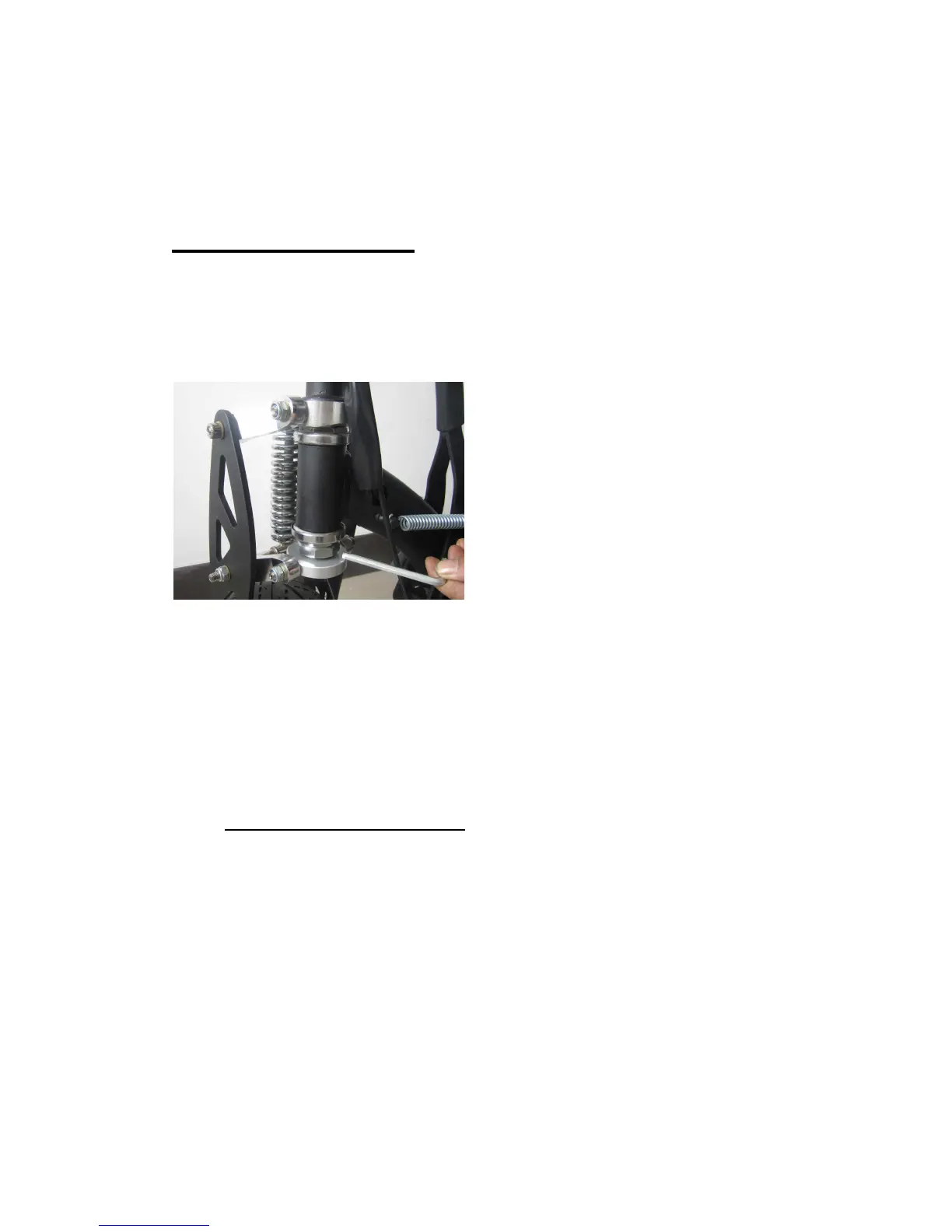

1. Rotate the handle bar as far right as it will
go to expose the HEAD UNIT. (FIG.18)
2. Using a large adjustable wrench, gently
turn the BEARING LOCK clockwise to
tighten. *DO NOT OVER TIGHTEN OR
IT WILL DAMAGE THE BEARINGS.
(FIG.18)
ADJUSTING THE CHAIN
The chain will come adjusted from the factory. However, it may be necessary
to adjust the chain from time to time. The chain must be well aligned onto the
sprockets in order to avoid uneven wear. This will result in shortened chain
life.
How tight should the chain be?
If the chain is skipping or jumping on the sprockets, this is too
loose and may be harmful.
If the chain is making a humming sound when the wheel is
turning, this is too tight and may cause the chain to snap.
The correct tension is achieved by adjusting the chain from its
loose position to when it becomes lightly tense.
11
