Installation
4
1

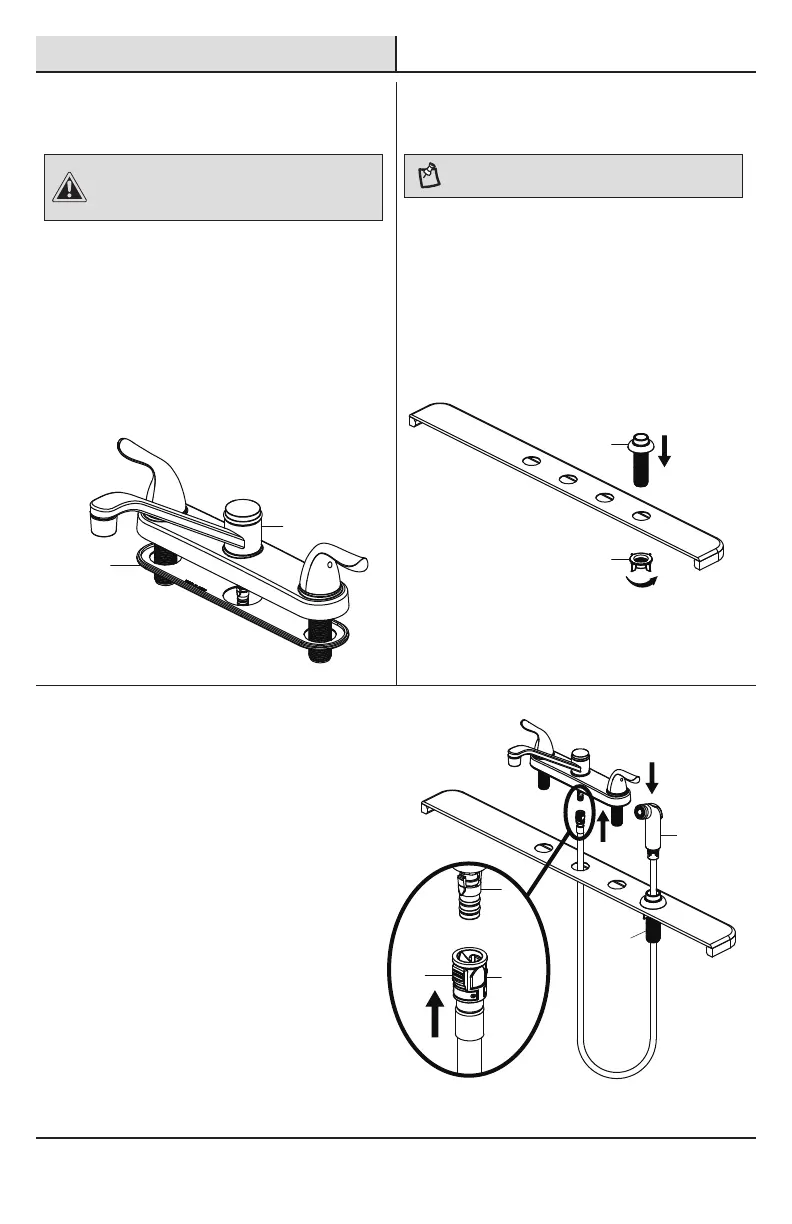

Preparing for installation
CAUTION: Always shut off the water supply before
removing an existing faucet or replacing any part of a
faucet. Open the faucet handle to relieve water pressure
and ensure that the water is completely shut off.
□ Shut off the water supply. Remove the old
faucet.
2
Installing the sprayer support
□ If your model has a side sprayer, proceed to
step 2. If your model does not have a side
sprayer, skip to step 4.
□ Insert the sprayer flange (E) through the far
right hole on the sink.
□ Screw the sprayer mounting nut (F) onto the
sprayer flange (E) shank from underneath the
sink, and hand tighten. Do not overtighten.
NOTE: The faucet with spray requires a 4 hole sink for
installation.
□ Clean the mounting surface.
□ Ensure the gasket (B) is on the bottom of the
new faucet (A).
3
Connecting the spray hose to
the faucet
□ Insert the side sprayer (D) hose down through
the sprayer flange (E) and sink. Align the
tabs (1 & 2) on the quick connects (3). Push the
quick connector housing firmly upward and
snap it onto the receiving tube tab. Pull down
the hose moderately to ensure the connection
has been made.
A
B
E
F
E
D
1
2
3
