16.0 ERROR CODES
The boiler is in an ERROR state when there is an error code flashing on the back lit display.
CH = Cen
tral Heating
DHW = Domestic Hot Water
BCC = Boiler Chip Card
Press and release the RESET button, the control tries to initiate a restart if
possible
ERROR CODE DESCRIPTION REASON ACTION RESET POSSIBLE
1 Overheated CH Water temperature •Check no air is in heat exchanger/CH system
appliance greater than 105°C •Check plate heat exchanger for blockages Y
•Check CH thermistor
•Check system bypass is functional
4 No flame No flame signal on ignition •Check detection electrode/lead – electrode may require cleaning
•Check spark gap
•Check gas supply & pressure Y
•Check flue system is connected properly
•Check condensate trap not blocked
•Check gas valve and/or lead
5 Flame loss Loss of flame signal •Check detection electrode/lead Y
during operation •Check gas valve mains lead
6 Temporarily Water temperature •Check overheat thermostat
overheated appliance greater than 95°C •Check no air is in heat exchanger/CH system
•CH system and hot water plate heat exchanger blockage Auto Re-start after 1 minute
•Check CH thermistor
•Check system bypass is functional
7 Overheated appliance Flue over temperature •Check no air in heat exchanger
> 92°C •Check flue thermistor
•Check flue system Y
•Check pump
•Check PCB/X8 connector
11 Flame simulation Flame detected when •Check detection electrode/lead electrode may require cleaning Y
gas valve closed •Check gas valve operation.
12 No ignition CH Flow thermistor failure •Check CH flow thermistor – open circuit Auto Re-start when fixed
•Check PCB/X6 connector – open circuit
13 No flame Flue thermistor failure •Check PCB/X8 connector
•Check flue thermistor Auto Re-start when fixed
•Check thermal fuse – open circuit
16 No ignition CH Return thermistor failure •Check CH return thermistor – open circuit Auto Re-start when fixed
•Check PCB/X6 connector – open circuit
20 No flame Gas valve V1-V2 failure •Check/replace gas valve
•Check gas valve harness Y
•Check PCB/X2A
24 Faulty fan signal, Missing or defective •Check fan operation
no flame and fan signal from fan. •Check fan connection Y
runs continuously •Check PCB/X3 connector
•Check flue condition
32 No flame Power supply failure •Check mains supply voltage to boiler Auto Re-start when fixed
•Check all PCB connectors
34 CRC Error / No flame Incorrect BCC •Replace correct BCC Auto Re-start when fixed
(BCC’s only fitted to replacement PCB’s)
35 BCC Error / No flame Incorrect/missing BCC •Reseat or replace BCC Auto Re-start when fixed
(BCC’s only fitted to replacement PCB’s)
36 BCC Error / No flame Damaged BCC •Replace BCC Auto Re-start when fixed
(BCC’s only fitted to replacement PCB’s)
37 BCC Error / No flame Different BCC •BCC and PCB software incompatible, replace BCC Auto Re-start when fixed
(BCC’s only fitted to replacement PCB’s)
38 BCC Error / No flame Different BCC •Reset the appliance in accordance with BCC fitting instructions Auto Re-start when fixed
(BCC’s only fitted to replacement PCB’s)
39 BCC Error / No flame BCC installation failed •Refit BCC in accordance with BCC fitting instructions Auto Re-start when fixed
(BCC’s only fitted to replacement PCB’s)
41 Water flow failure/ Low water pressure •Check CH flow circulation
Flame for a short Reversed sensors •Check water pressure(> 0.5 bar)
period only •Check pump/lead Y
•Check expansion vessel
•Check flow and return sensors connected correct way around
42 Water flow failure/ Low water pressure •Check no air in heat exchanger
Flame for a short No flow •Check CH flow circulation
period only Dry run protection •Check water pressure(> 0.5 bar) Y
•Check pump/lead
•Check expansion vessel
50 BCC Error / No flame BCC Activation •Press reset to activate BCC (BCC’s only fitted to replacement PCB’s) Y
No light DHW cold Defective DHW flow switch •Check DHW flow turbine & lead Auto Re-start
display when or defective •Check DHW/CH thermistor when fixed
tap on DHW/CH thermistor •Check PCB/X4 connector
(No display) No light indication Defective power supply •Check power supply
•Check PCB/X1B connector Auto Re-start when fixed
•Check PCB fuse
42
© Dimplex Boilers 2008

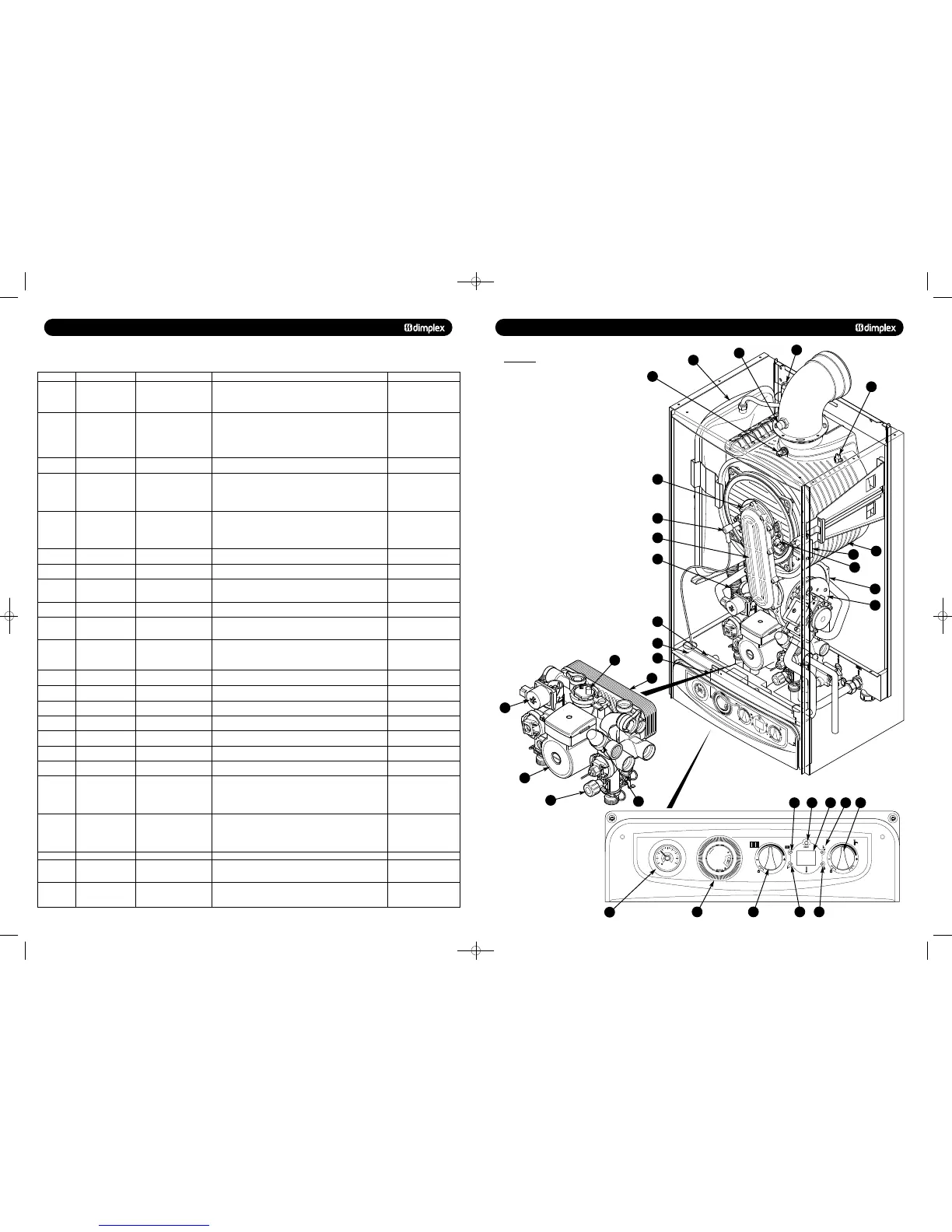

2.0 BOILER LAYOUT
2.1 KEY
1. Expansion Vessel
2. Automatic Air Vent
3. DHW Plate Heat Exchanger
4. Circulation Pump
5. Drain Off Point
6. Pressure Relief Valve
7. Central Heating System Pressure Gauge
8. PCB
9. Control Box
10. 3-Way Valve Assembly
11. Flexible condensate pipe assembly
12. Flame Sensing Electrode
13. Spark Electrode
14. Primary Heat Exchanger
15. Fan Assembly
16. Gas Valve & Swirl Plate Assembly
17. Reset Button
18. Central Heating Temperature Control
19. Hot Water Temperature Control
20. Air / Gas Channel
21. Burner & Burner Door
22. Spark Generator
23. Data Badge
24. Flue Sample Point
25. Manual Air Vent
26. Burner On Light
27. Central Heating Mode Light
28. Domestic Hot Water Mode Light
29. Display
30. Integral Timer
31. Flue Thermistor
32. Thermal Fuse
33. Comfort + / Eco Mode Light
© Dimplex Boilers 2008
7
Co
m
fort +
1
13
2
1
4
3
1
5
4
1
6
5
1
7
6
1
8
7
19
8
20
9
2
1
10
2
2
11
23
1
2
24
0
1
0
1
2
b
a
r
3
4
Comfort +
1
13
2
14
3
15
4
16
5
17
6
18
7
19
8
20
9
21
10
22
11
23
12
24
0
1
0
1
2
bar
3
4
Fig. 1
1
24
31
32
25
2
10
4
7
8
9
23
11
20
12
21
13
15
16
17 29 33 1927
1830 2628
14
22
5
3
6
48pp MANUAL SPREADS 19/10/10 08:36 Page 7
