12

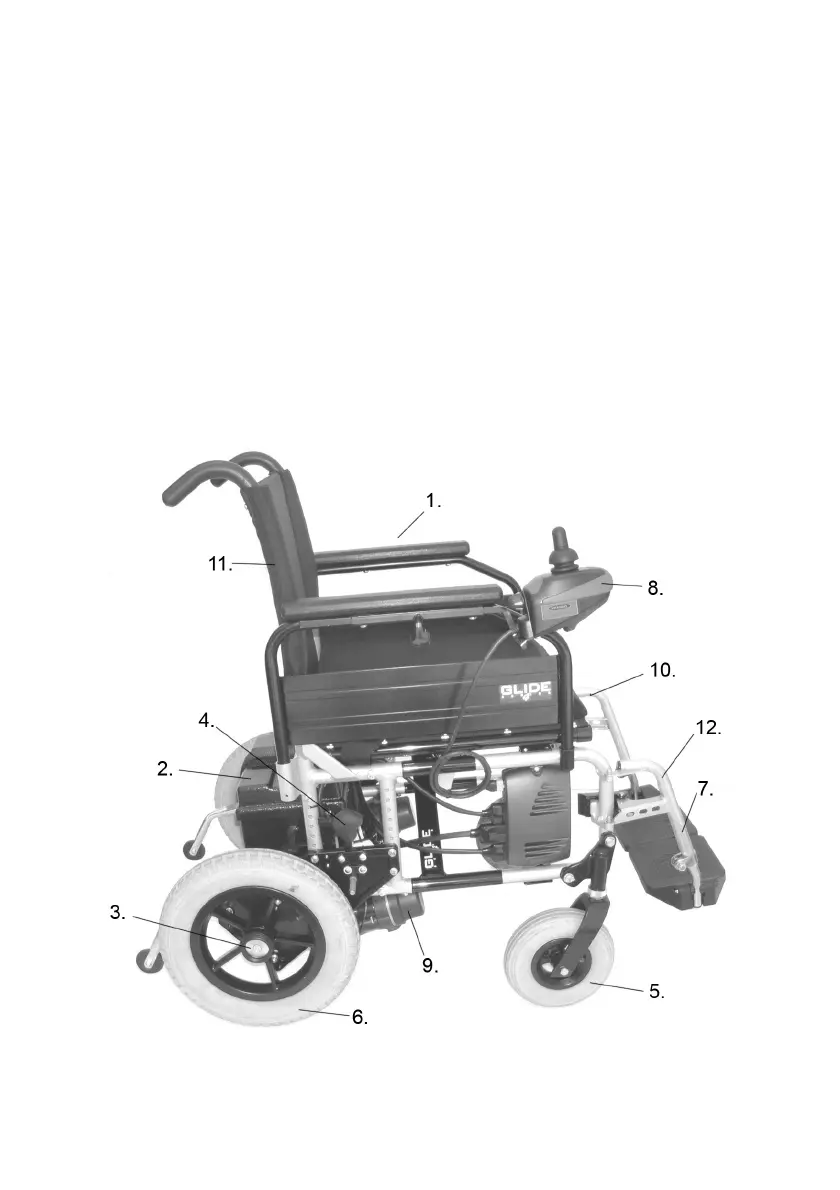

FIGURE 3. HOW TO OPERATE YOUR CHAIR.
1. Standard Non - Adjustable Height Armrests
2. Battery Pack (with built in lifting strap)
3. Drive Clutch
4. Attendant Brakes
5. Pneumatic Front Castor Wheels – 200mm x 50mm (8”x1¼” )
6. Pneumatic Rear Wheels – 203mm x 62mm (12 ½” x 2 ¼”)
7. Swing Away Footrests
8. Dynamic Shark Controller
9. High Torque Motors
10. Folding Frame
11. Sail Cloth Upholstery
12. Velcro Calf Strap
Maximum Safe Slope = 12 Degrees moving
Maximum Obstacle Climbing = 48mm forward 36mm backwards with anti-tip
wheels fitted
