Electric Blower Heater
TROUBLESHOOTING
Problem Probable Cause Solution
Unit is not
heating.
Overheat protection has temporarily
deactivated the heater.
Turn the heater OFF; Switch off the circuit
breaker. Wait 10 minutes before restarting unit.
Breaker/Fuse has been tripped. Check electrical box to confirm the breaker
has not been blown. This may occur if the
receptacle is shared between other high
consumption appliances.
The heater is
producing
a burning smell.
Verify that there are no combustible
materials within 0.9 meters (3 feet)
surrounding the heater.
Remove any combustible items near unit.
There is oil residue on the heating coil
from the manufacturing process. It will
evaporate quickly and should not occur
again.
Ensure heater location is well ventilated.
Ensure a minimum clearance of 4.5 inches
(11.5 cm) from heater to adjacent walls.
Reposition heater to increase distance from
adjacent walls.
PLEASE DO NOT ATTEMPT TO OPEN OR REPAIR THE HEATER YOURSELF.
DOING SO COULD CAUSE DAMAGE OR PERSONAL INJURY.
This is a cart stand or wall-mounted heater. It has thermal
cut-off protection. If the thermal cut-off protection trips:
Turn off the power. Turn off the circuit breaker. The unit
should reset automatically after 10 minutes. If the thermal
cut-off protection trips again, consult a certified electrician
to determine the reason for overheating.
If your heater fails to operate, please follow these procedures:
Assembly Instructions

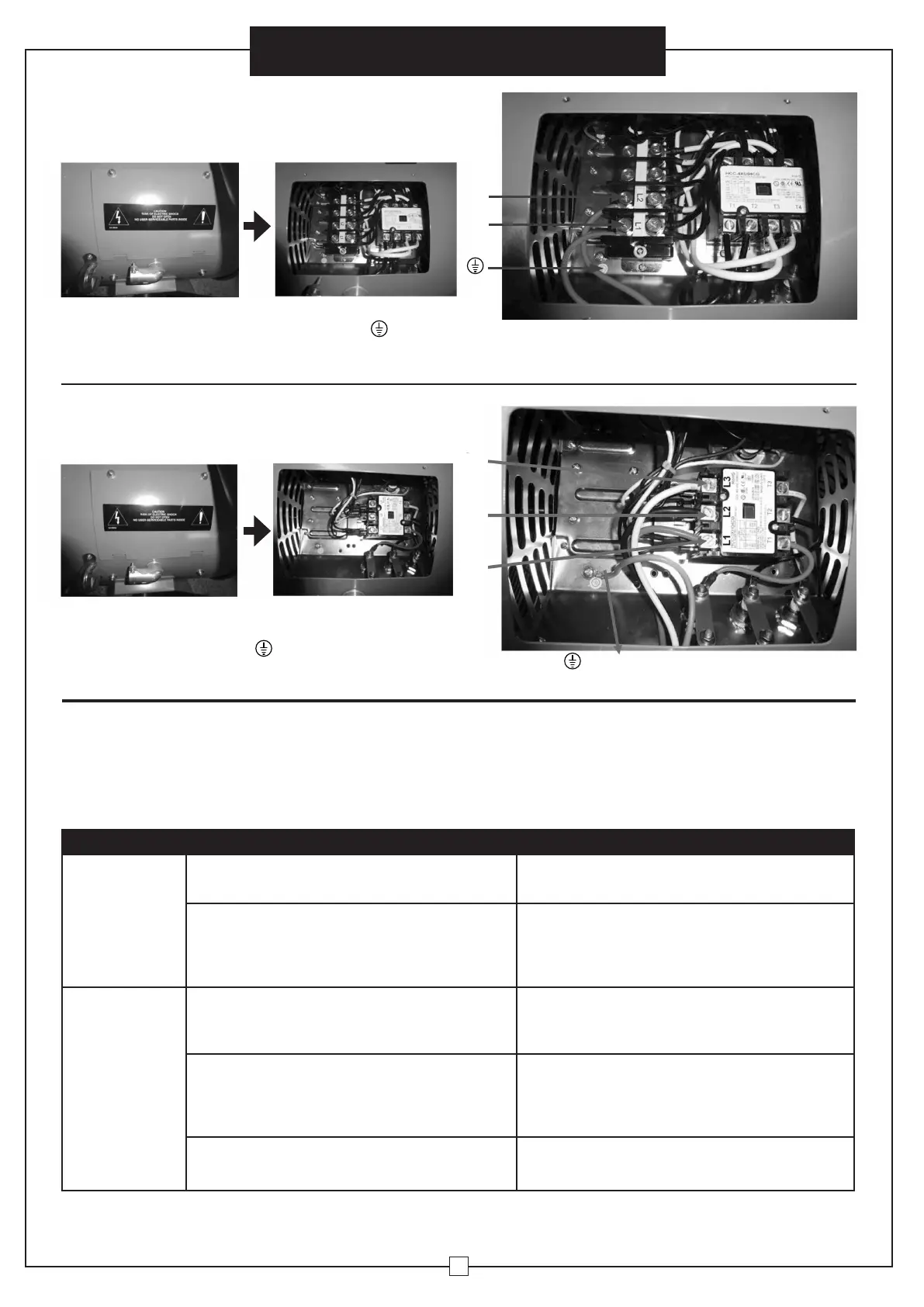

WIRING INSTRUCTIONS
For Model 653560
Models 653561 653562 246067
FOR 3 PHASE MODELS:
1. Open the compartment.
1. Open the wiring cover.
3. Close compartment.
Note: Use wire terminal crimp when connecting
to terminals.
3. Close compartment.
Ground wire
2. Connect the live wires to L1 and L2 of the
terminal block. Connect ground wire to .
2. Connect the red live wire to L1, black live wire
to L2 and white live wire to L3 of the connector.
Connect ground wire to .
L1: Red live wire L2: Black live wire L3: White live wire
L1: White live wire L2: Black live wire
L1
L2
L1
L2
L3
L3
L1
