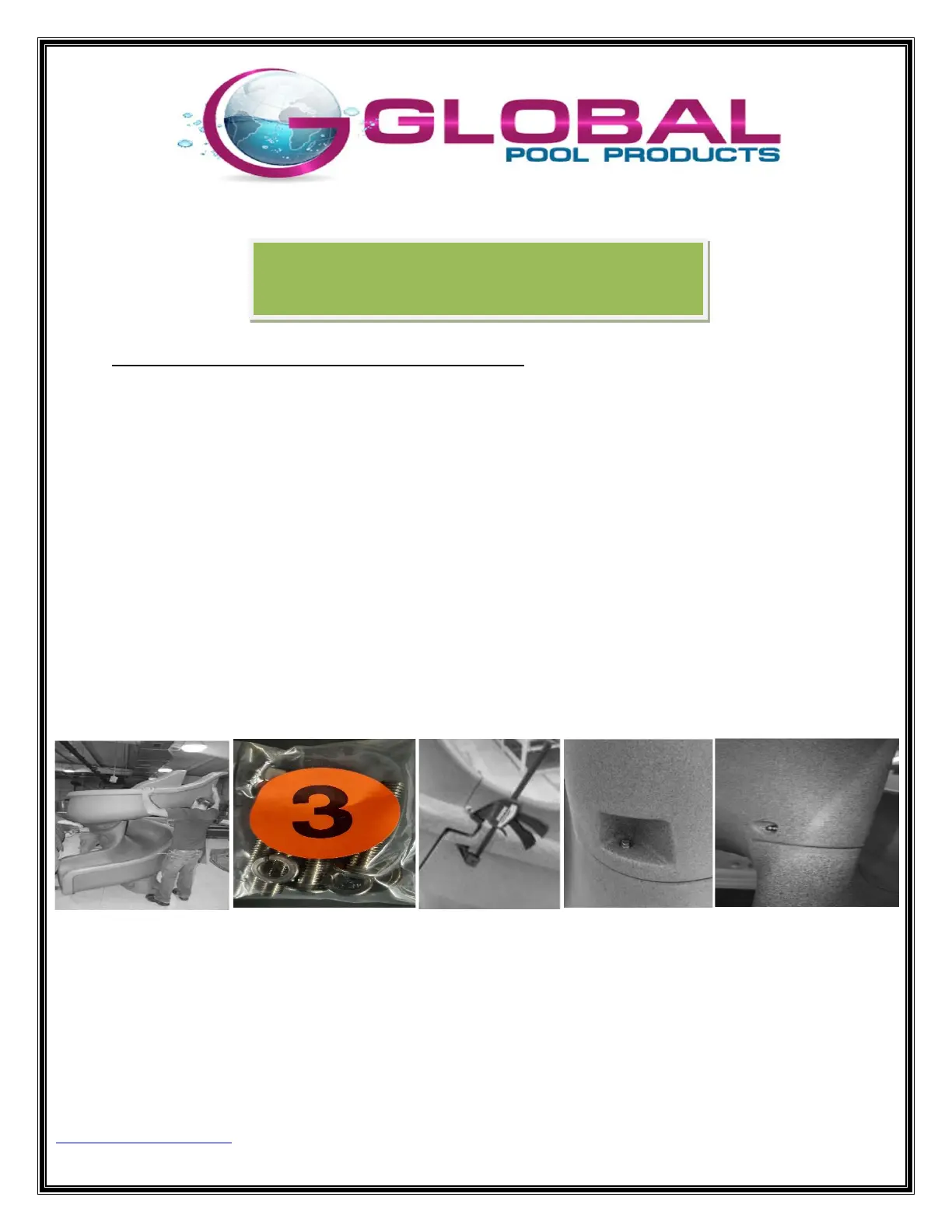

Attaching the upper flume to the lower flume
a. Use two people to lift the upper flume and place it onto the lower flume, they lock into place
with the grooved design
b. From bag three in the hardware kit, use one 2” button head bolt, with one flat washer on the
upper attachment point
c. From bag three in the hardware kit, use one 2 ¼” button head bolt, with one flat washer on the
inner spindle attachment point
d. From bag three in the hardware kit, use two 3” studs, install them into the lower attachment
points, tighten using a 3/16” Allen wrench, place a flat washer, then a lock washer, and lastly a
hex nut onto each stud
e. Plastic clamps may need to be used to aid alignment of the bolt holes
f. Once all bolts have been started, tighten the button head bolts with a 7/32” Allen wrench and
the hex nuts with a 9/16” wrench
