7 CABLE
Following some examples of cables:

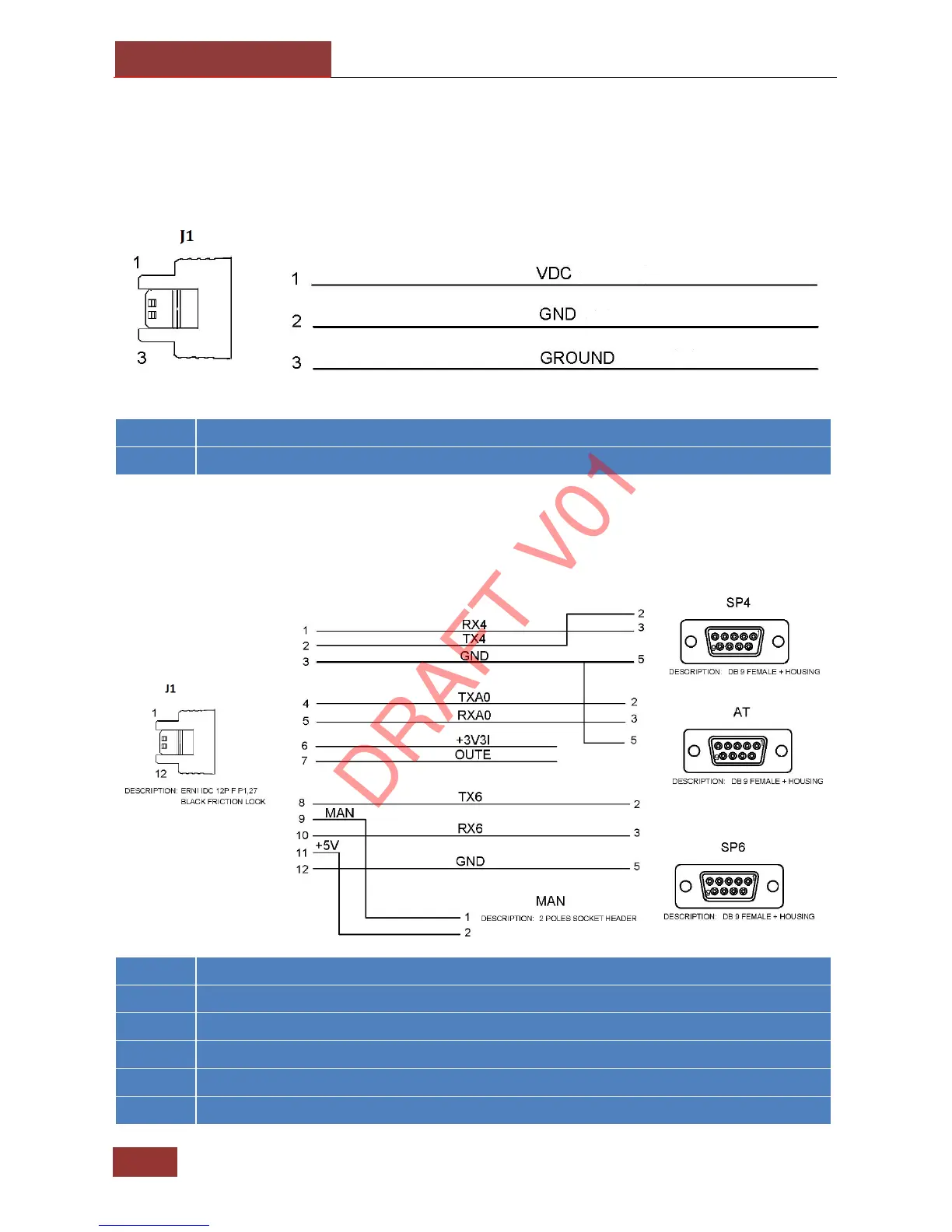

7.1 CAC0096 POWER CABLE
Connector female ERNI IDC 3 Poles Black Friction Lock (P/N: 101603240001)
Discrete Wire AWG 24, Length = 50cm
The pin 3 “GROUND” must be used for the grounding of the device.
7.2 CAC0136 BV1000CL GBC SERIAL CABLE
Connector female ERNI IDC 12 Poles Black Friction Lock (P/N: 101903240001)
Connector SUB-D 9 Poles Female
Connector SUB-D 9 Poles Female
Connector SUB-D 9 Poles Female
2 Poles Socket Header Connector
Discrete Wire AWG 26, Length = 30cm
