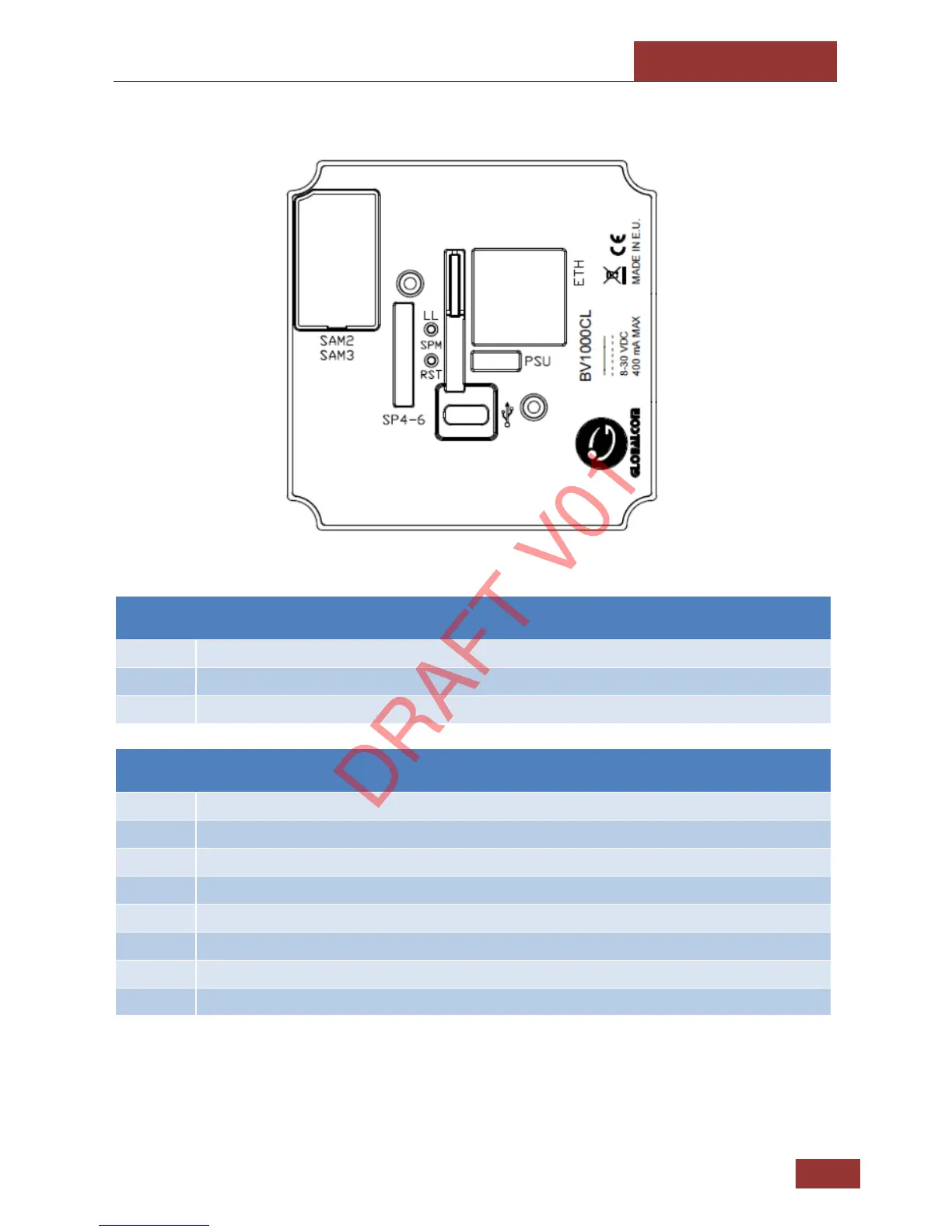

6.2 BV1000CL BACK VIEW
FIGURE 1 – Connector View of the BV1000CL
PSU: Power supply Connector ( +VD.C.)
ERNI P/N 284696 or 101403240001 (3 poles)
SPM: Serial Port
ERNI P/N: 284699 or 100503240001 (8 poles)
TX1 Transmit data output RS232
RX1 Receive data input RS232
RTS Request To Send signal RS232 input
CTS Clear To Send signal RS232 output
NCP Card present signal, active low (open collector)
TEN Terminal enable, 1 = BV1000CL active
NPU Bidirectional signal output/input active low
