Glow-worm 24cxi User Manual

18
0020008154A
6.1 Appliance Pack
IMPORTANT: With regards to the Health and Safety Manual
Handling requirements, two persons shall be required to lift the
appliance, refer to Manual Handling section on page 5.

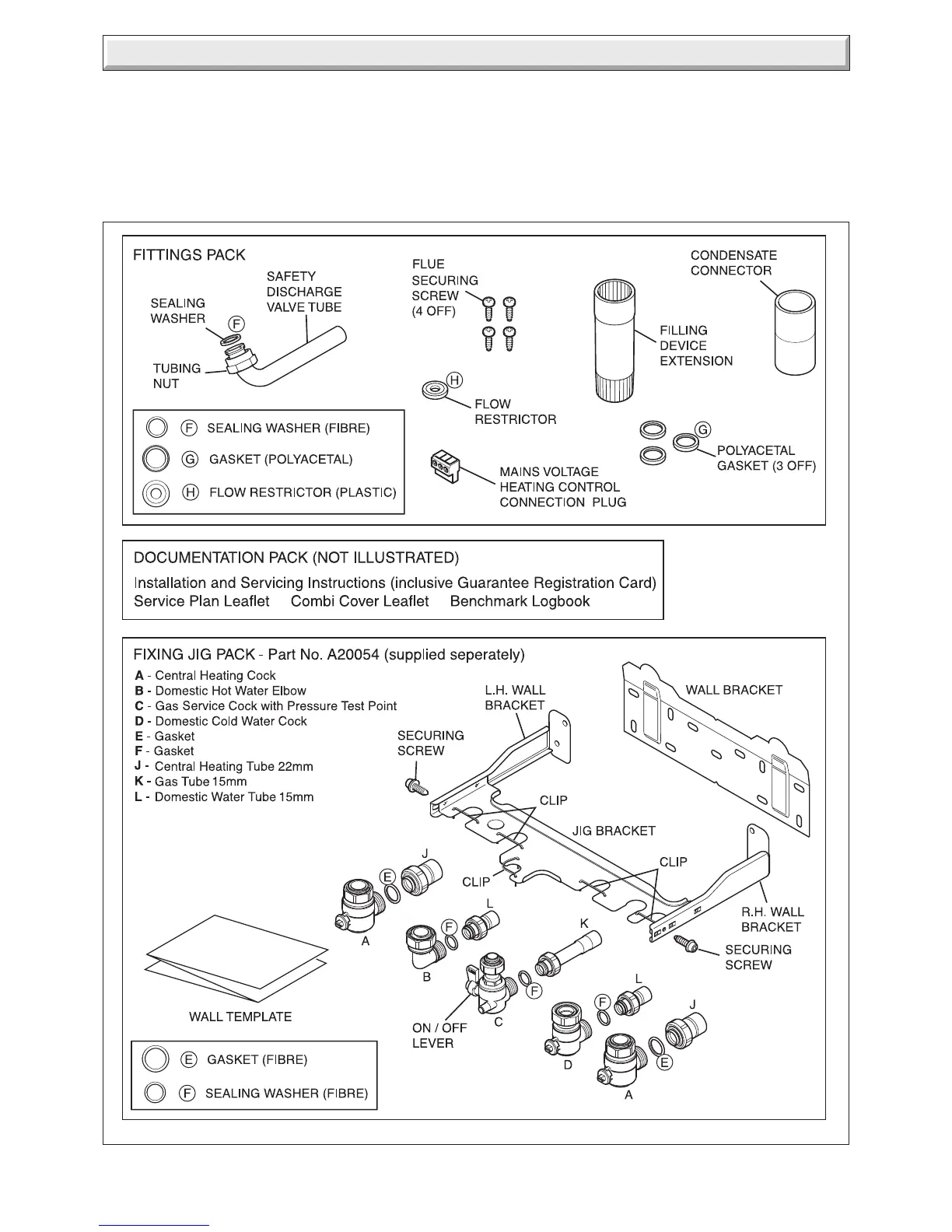

Please check the contents of packs as shown in diagram 6.1.
NOTE: The fittings pack is located in the base polystyrene
packing under the boiler base.
Remove the polystyrene end packing pieces then carefully lay
the boiler on its back, remove the two front casing panel
securing screws and lift off the panel from two retaining lugs.
Remove the transit packaging behind the front panel and
discard.
Carefully place front panel and screws to one side.
6 Installation Preparation
Diagram 6.1
12332

Glow-worm 24cxi Specifications

General

Model	24cxi
Category	Boiler
Output	24 kW
Mounting	Wall-mounted
ERP Rating	A
Flow Rate (l/min)	9.8 l/min
Max. Working Pressure	3 bar
Flow Rate at 35°C Rise	9.8 l/min
Gas Type	Natural Gas
Electrical Supply	230V / 50Hz
DHW Output (kW)	24.0 kW
Central Heating Flow Temperature Range	30°C - 80°C
Gas Consumption (Max)	2.7 m³/h
Type	Condensing Combi Boiler
Dimensions	740mm x 418mm x 300mm
