Glow-worm 24cxi User Manual

47 0020008154A
14.34 Plate-to-Plate Heat Exchanger
For access, refer to section 14.1.
Refer to section 12.9 to drain the boiler heating circuit.
Refer to section 12.10 and drain the boiler hot water circuit.
Refer to diagram 14.23.
Remove the gas supply pipe from the gas service cock and the
gas valve, refer to relevant parts of section 12.3.
Undo the central heating flow pipe connection into the left hand
hydroblock, see diagram 14.23.
Undo the nut connecting flow pipe to heat exchanger.
Lift it up to remove it from the hydroblock with the washer and
rotate it forward and out of the way.
Using a TORX screwdriver remove the two screws securing the
plate-to-plate heat exchanger to the hydroblock.
14 Replacement of Parts

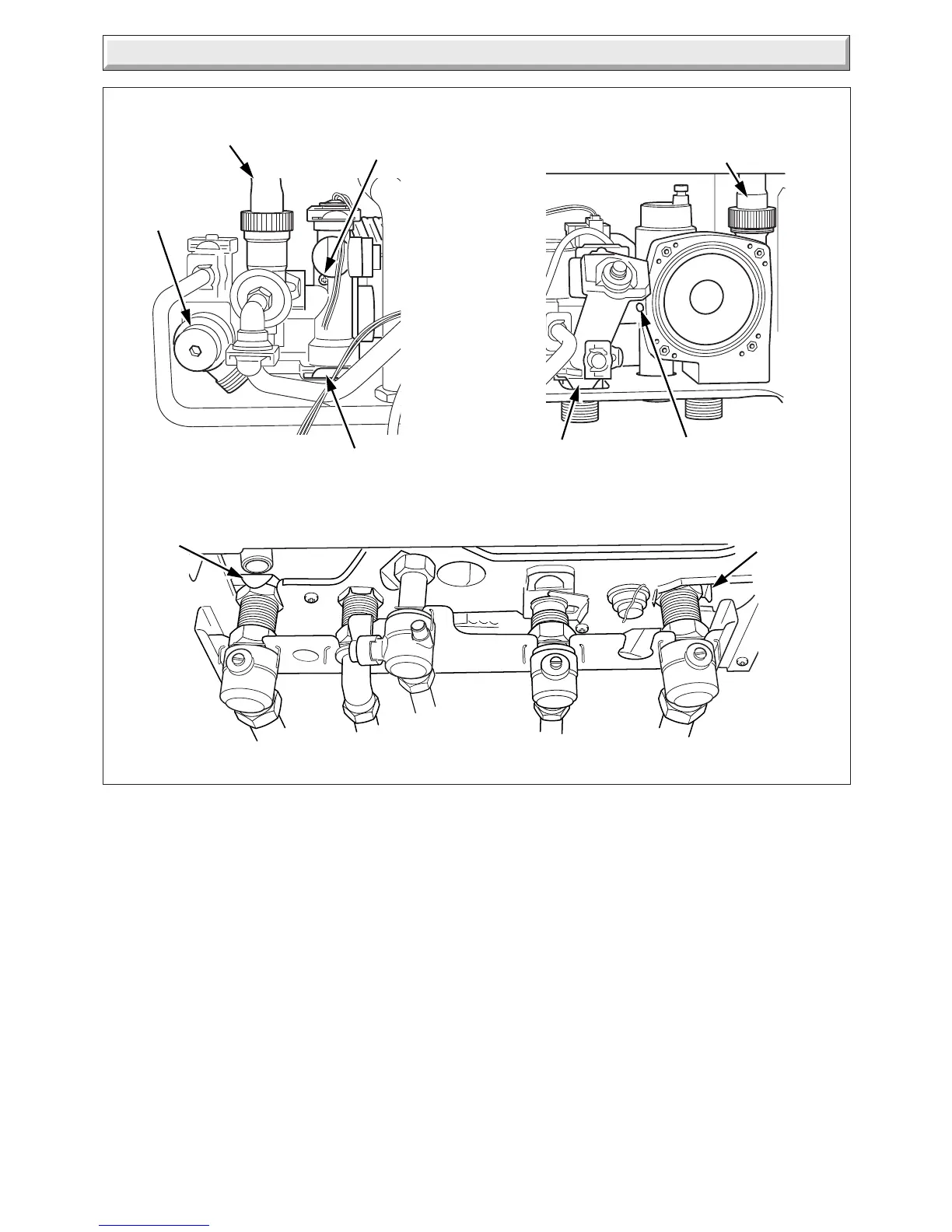

Diagram 14.23
SAFETY
DISCHARGE
VALVE
SECURING
CLIP 1
FLOW PIPE
CONNECTOR
PLATE TO PLATE HEAT
EXCHANGER SECURING
SCREW
SECURING
CLIP 2
SECURING
CLIP 3
RH
HYDROBLOCK
LH VIEW
HYDROBLOCK
OUTLET
CONNECTOR
PLATE TO PLATE HEAT
EXCHANGER SECURING
SCREW
SECURING
CLIP 4
11499
11478
11500
Remove the plate-to-plate heat exchanger by lifting it up and
over the top of the left hand hydroblock.
When replacing the plate-to-plate heat exchanger ensure that
the four rubber sealing washers are fitted into the hydroblock.
NOTE: The plate-to-plate heat exchanger only fits one way
round, 'TOP' is marked on the plate.
Refill, vent and pressurise the boiler.
Open the cold-water isolation valve and slowly open a hot water
tap to remove air.
Close the hot water tap and check for any leaks.
Open the heating circuit isolation valves, re-pressurise the
system as necessary.

Glow-worm 24cxi Specifications

General

Model	24cxi
Category	Boiler
Output	24 kW
Mounting	Wall-mounted
ERP Rating	A
Flow Rate (l/min)	9.8 l/min
Max. Working Pressure	3 bar
Flow Rate at 35°C Rise	9.8 l/min
Gas Type	Natural Gas
Electrical Supply	230V / 50Hz
DHW Output (kW)	24.0 kW
Central Heating Flow Temperature Range	30°C - 80°C
Gas Consumption (Max)	2.7 m³/h
Type	Condensing Combi Boiler
Dimensions	740mm x 418mm x 300mm
