23 0020008154A

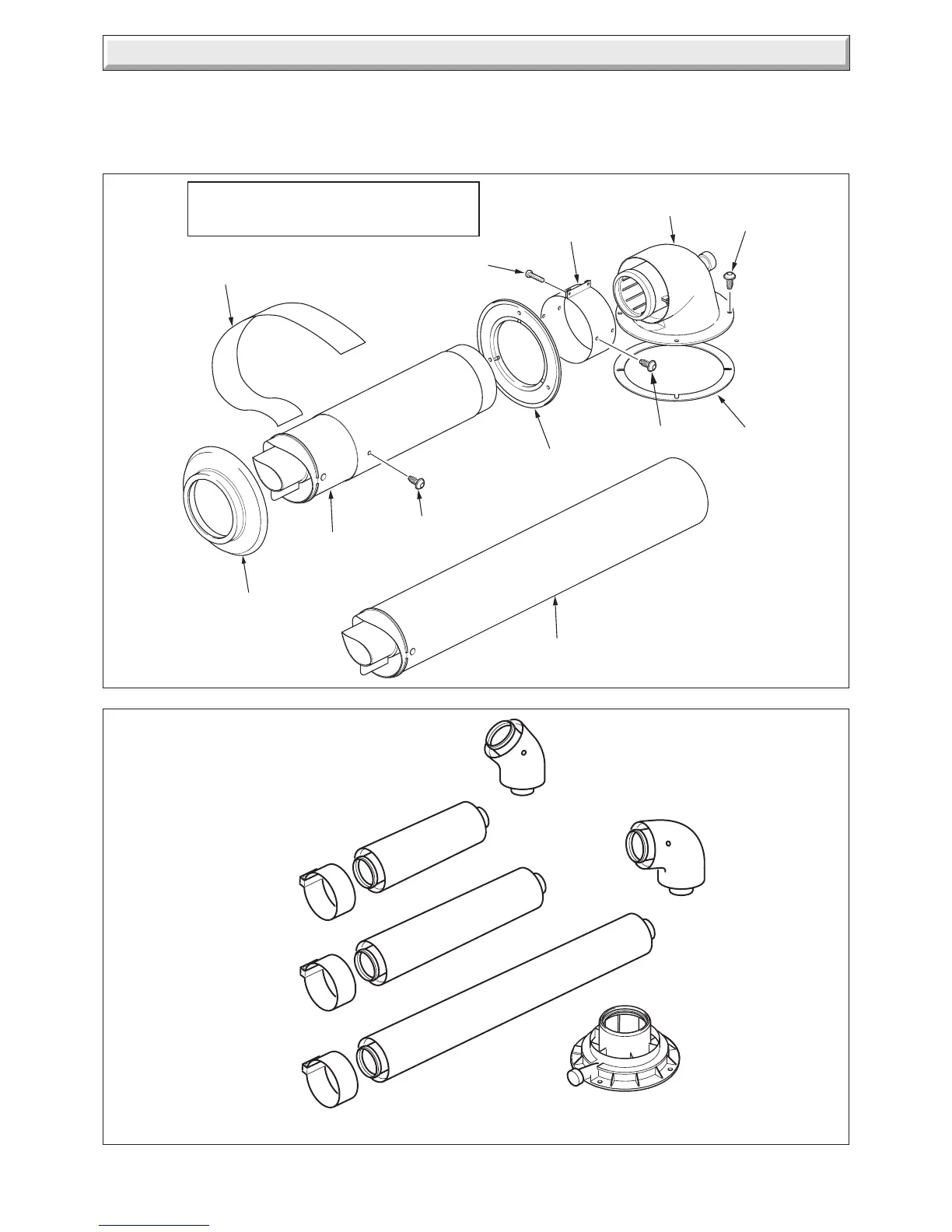

9 Flue Preparation Telescopic and Standard Flue
Diagram 9.2
12842
45
o
Bend
2000460485
(2off)
90
o
Bend
2000460484
0.5m
EXTENSION
2000460481
1m
EXTENSION
2000460482
2m
EXTENSION
2000460483
VERTICAL
FLUE
ADAPTOR
A2024600
9.1 Flue Components
The components supplied in the Standard and Telescopic kit
are shown in diagram 9.1.
12841
Diagram 9.1
TELESCOPIC
TERMINAL ASSEMBLY
SEALING
COLLAR
SEALING
COLLAR
SECURING
COLLAR
FLUE
ELBOW
GASKET
(fitted)
SEALING
TAPE (telescopic only)
Top Outlet Horizontal Concentric Flue Packs:
A2043600 Horizontal telescopic flue pack.
A2043400 Standard horizontal flue pack.
STANDARD
TERMINAL ASSEMBLY
SCREW x 1
SCREW x 2
SCREW x 2
SCREW x 4
Additional flue accessories are available to suit your site
conditions, see diagram 9.2.
The Glow-worm Flue Options Guide, available on request or
through the web site, describes in detail the necessary
accessories.

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Glow-worm 24cxi and is the answer not in the manual?

Glow-worm 24cxi Specifications

General IconGeneral
Model24cxi
CategoryBoiler
Output24 kW
MountingWall-mounted
ERP RatingA
Flow Rate (l/min)9.8 l/min
Max. Working Pressure3 bar
Flow Rate at 35°C Rise9.8 l/min
Gas TypeNatural Gas
Electrical Supply230V / 50Hz
DHW Output (kW)24.0 kW
Central Heating Flow Temperature Range30°C - 80°C
Gas Consumption (Max)2.7 m³/h
TypeCondensing Combi Boiler
Dimensions740mm x 418mm x 300mm
