24
221691B

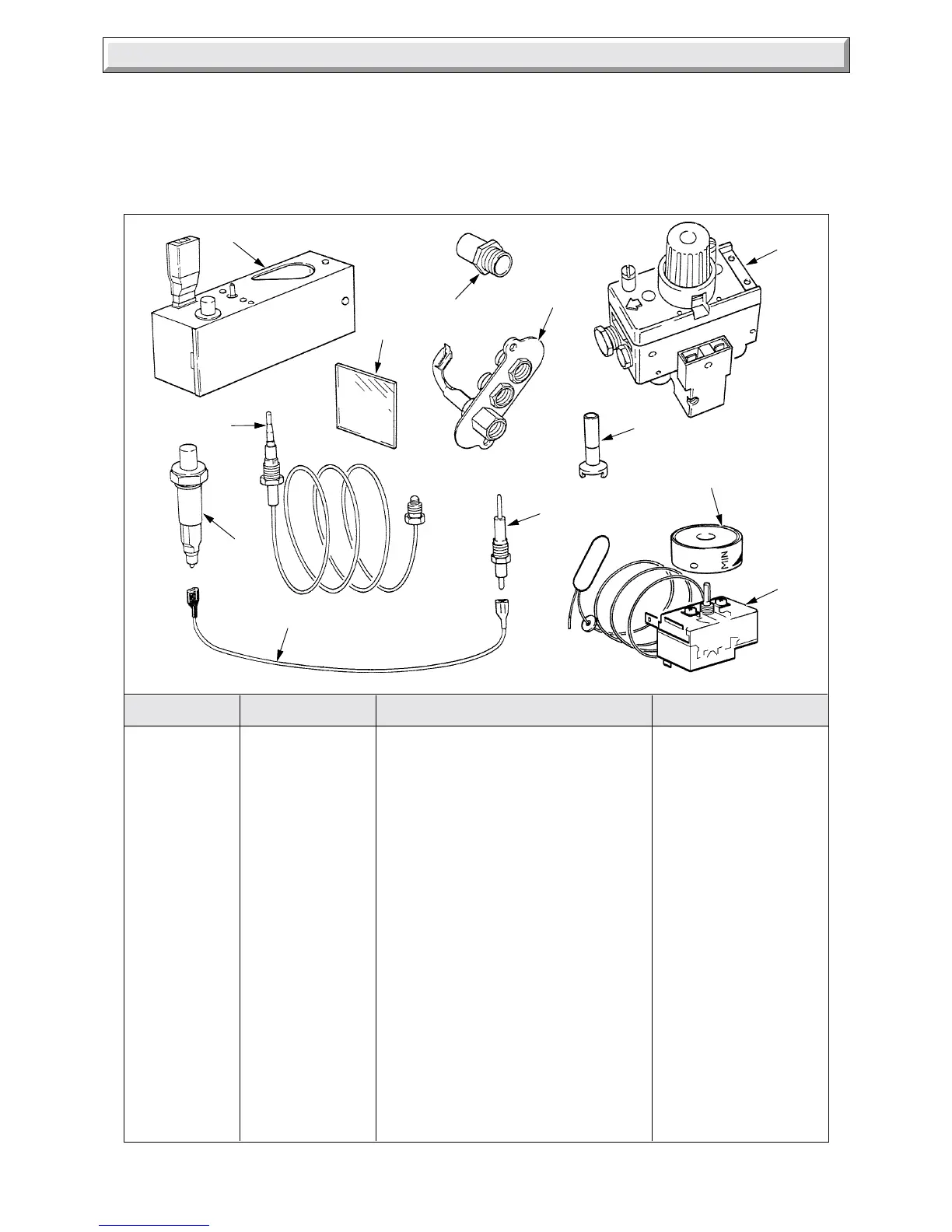

Diagram 11.1
11 Spare Parts
6286
2
5
8
11
4
3
12
10
9
6
1
7
Because of our constant endeavour for improvement, details may vary slightly from those shown in these instructions.
The key number in the first column of the list will help identify
each part in diagram 11.1.
When ordering spare parts quote the part number and
description, stating the model and serial number off the data
label “L”, see diagram 7.1.
If ordering from British Gas you will also require the GC
appliance number off the data label and the required spare part
GC number.
Key No Part No. Description GC Part No.
1 425568 Electrical control box assembly 312 451
2 203329 Gas control valve 384 345
3 K7218 Injector - main - 3.40 351 790
4 203414 Pilot burner assembly 312 426
5 203508 Injector - pilot 395 674
6 202407 Thermocouple c/w nut 392 934
6 202415
7 202571 Thermostat c/w screws
8 FF2228 Control knob assembly 355 241
9 202700 Piezo unit 384 146
9 202702 Piezo unit 382 585
10 WW4613 Ignition lead 136 399
11 202605 Spark electrode 395 720
12 208302 Sight glass 312 419
