11.9 Testing domestic hot water system
• Open a hot-water tap.
• Check that the temperature obtained is compliant with the
setting on the appliance.
11.10 Completion
• Ensure that the magnetic lighting instruction label is placed on
the surface of the boiler casing.
GB: It is a requirement that the “Benchmark” Installation,
Commissioning and Service Record is completed and left with the
user.
IE: it is necessary to complete a “Declaration of Conformity” to
indicate compliance to I.S.813. An example of this is given in the
current edition of I.S.813.
12 Specifi ed Adjustment
12.1 Heating circuit adjustment
By pass operation is automatic and not adjustable.
• If necessary, fi t an external by-pass.
ULTIMATE 30c
B
0
10
20
30
40
50
500
1000
1500

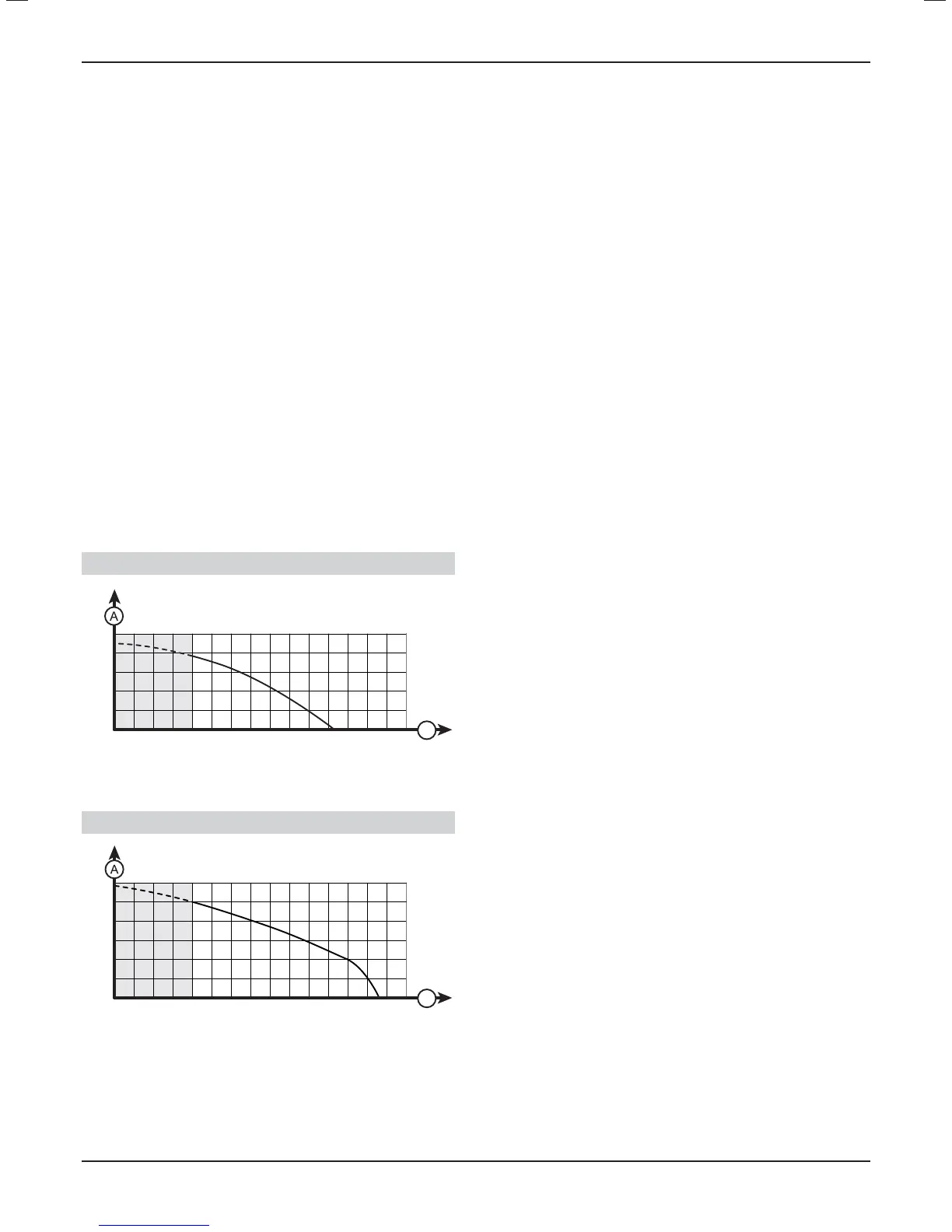

Key
A Available pressure between heating fl ow and return (kPa)
B Heating circuit fl ow rate (l/h)
ULTIMATE 35c
0
10
20
30
40
50
60
500
1000
1500
B
Key
A Available pressure between heating fl ow and return (kPa)
B Heating circuit fl ow rate (l/h)
INSTALLATION
- 24 -

Glow-worm ULTIMATE 30c Specifications

General

Boiler Type	Combi
Fuel Type	Natural Gas
Central Heating Output	30 kW
ErP Efficiency Rating	A
Mounting	Wall-mounted
CH Output	30 kW
DHW Output	30 kW
Standard Warranty	5 Years
Dimensions	740x418x300mm
