Diagnostic Menu
The Diagnostic Menu provides the ability to view and
change certain parameters.
See Diagram 14.4 for available parameters.
To enter the diagnostic menu:
a) Press and hold the ‘MODE’ button for 5 seconds.
The display will change to flashing ‘
0’.
b) Use the ‘+’ or ‘-’ buttons to scroll to
96 (This is
the installer level access password).
c) Press ‘MODE’ to confirm, see diagnostic display 1.
Use the ‘+’ or ‘-’ buttons to view the appropriate
diagnostic number, see diagram 14.4.
If necessary the values can be changed by:
a) Pressing the ‘MODE’ button.
b) The diagnostic value flashes, see diagnostic display 2.
14 Fault Finding
13450
13451
c) Use the ‘+’ and ‘-’ buttons to cycle through
available values.
d) The change is saved by pressing ‘MODE’ once
more.
(NOTE: Only certain parameters can be adjusted)
To exit the diagnostic menu press and hold the
‘MODE’ button for 5 seconds.

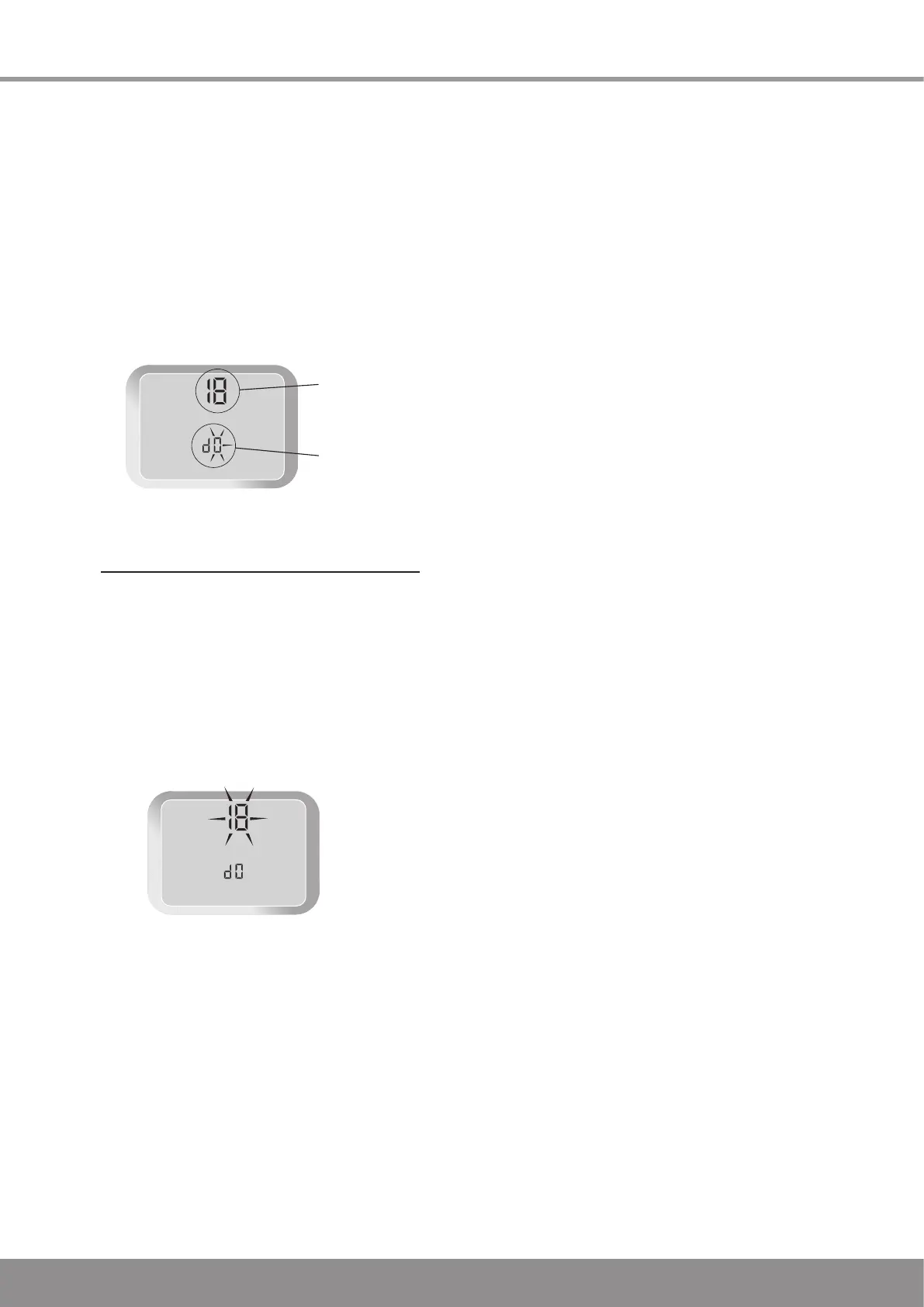

Diagnostic
value
Diagnostic
number
Diagnostic display 1
To Next Page
